2500/5000daN Rachet Tie Down Ergo Buckel, Double J Hooks

Availability:
Quantity:

Introduce our  Ergo Buckel Rachet tie down, a revolutionary product designed to secure cargo during transport. This innovative tool is equipped with unique features that set it apart from traditional cargo adhesives, making it ideal for all your cargo security needs.


 Ergo Buckel Rachet tie down is specially designed to provide maximum efficiency and ease of use. Whether you are a professional truck driver, logistics company, or simply need a reliable cargo security solution, the reverse tooth tensioner is the perfect choice for you. Its advanced design allows for effortless tightening of cargo belts, reducing the amount of physical exertion compared to conventional adhesives. This not only saves time and effort, but also minimizes the risk of tension or injury during the cargo fixation process.


In addition to the ergonomic design, the inverted tooth tensioner is made of high quality materials to ensure durability and reliability. Trust its superior performance and innovative features to ensure that your goods are safe and reliable during transportation. Its rugged construction makes it suitable for a variety of applications, from securing heavy loads to transporting delicate cargo items.


Warning:
1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.
2.Ratchet lashings should not be used as a load lifting gear.
3.Do not place loads on the ratchet lashing, which could cause damage.
4.Ratchet lashings must not be overload.
5.Avoid twisted positioning of the ratchet lashing.
6.Do not tie knots in the webbing.
7.Protect the webbing against abrasion andior cutting by using edge protectors and sleeves for sharp edges.

Webbing width Lashing Capacity   (daN) CompleteSystem   M.B.S(kg) Fixed Length  (m) LC(daN) LC(daN) LC(daN)
25mm 400 800 0.3 400 800 800
25mm 500 1000 0.3 500 1000 1000
25mm 750 1500 0.3 750 1500 1500
35mm 1000 2000 0.3 1000 2000 2000
35mm 1500 3000 0.3 1500 3000 3000
50mm 1500 3000 0.3 1500 3000 3000
50mm 2000 4000 0.5 2000 4000 4000
50mm 2500 5000 0.5 2500 5000 5000
75mm 3500 7000 0.7 3500 7000 7000
100mm 5000 1000 0.7 5000 1000 10000

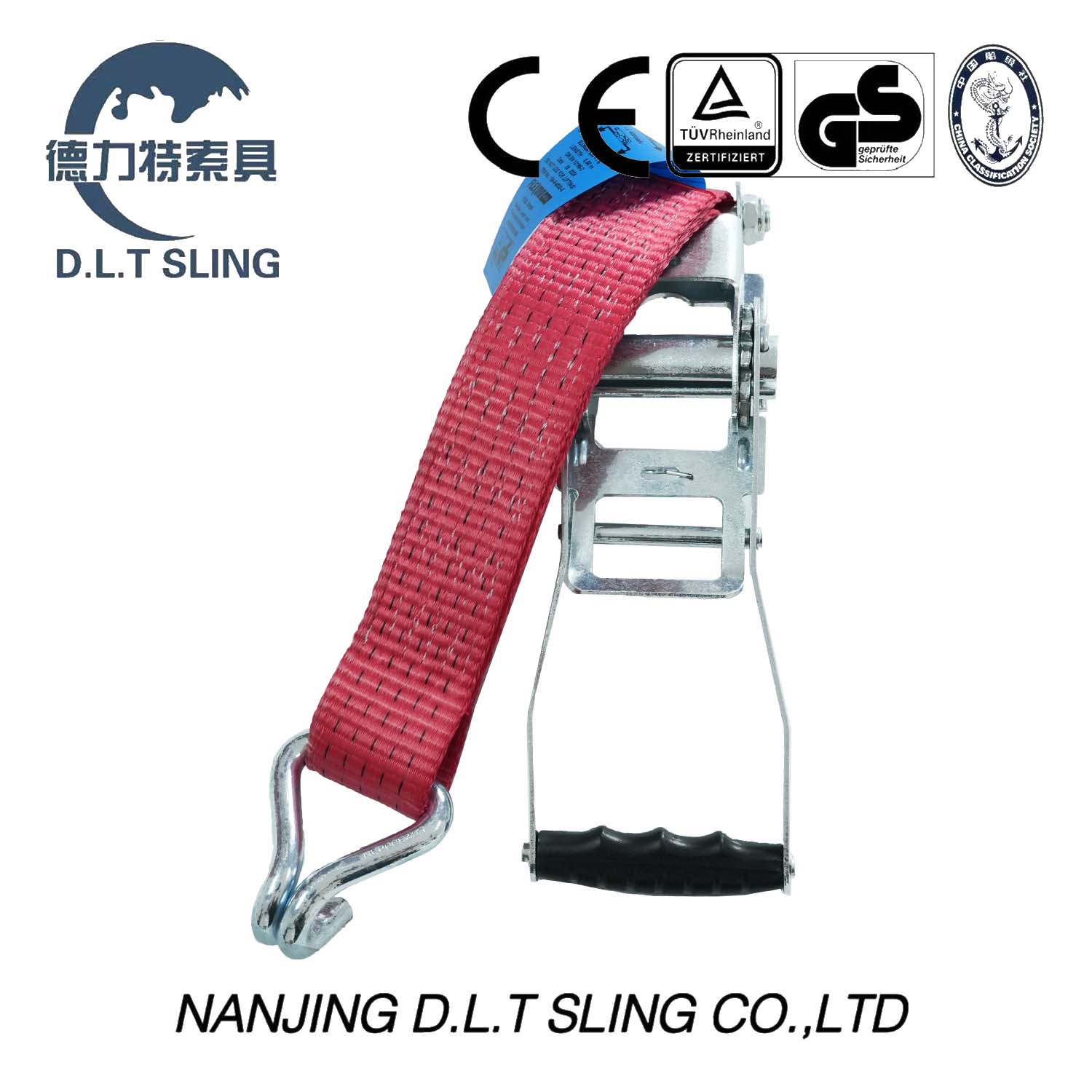

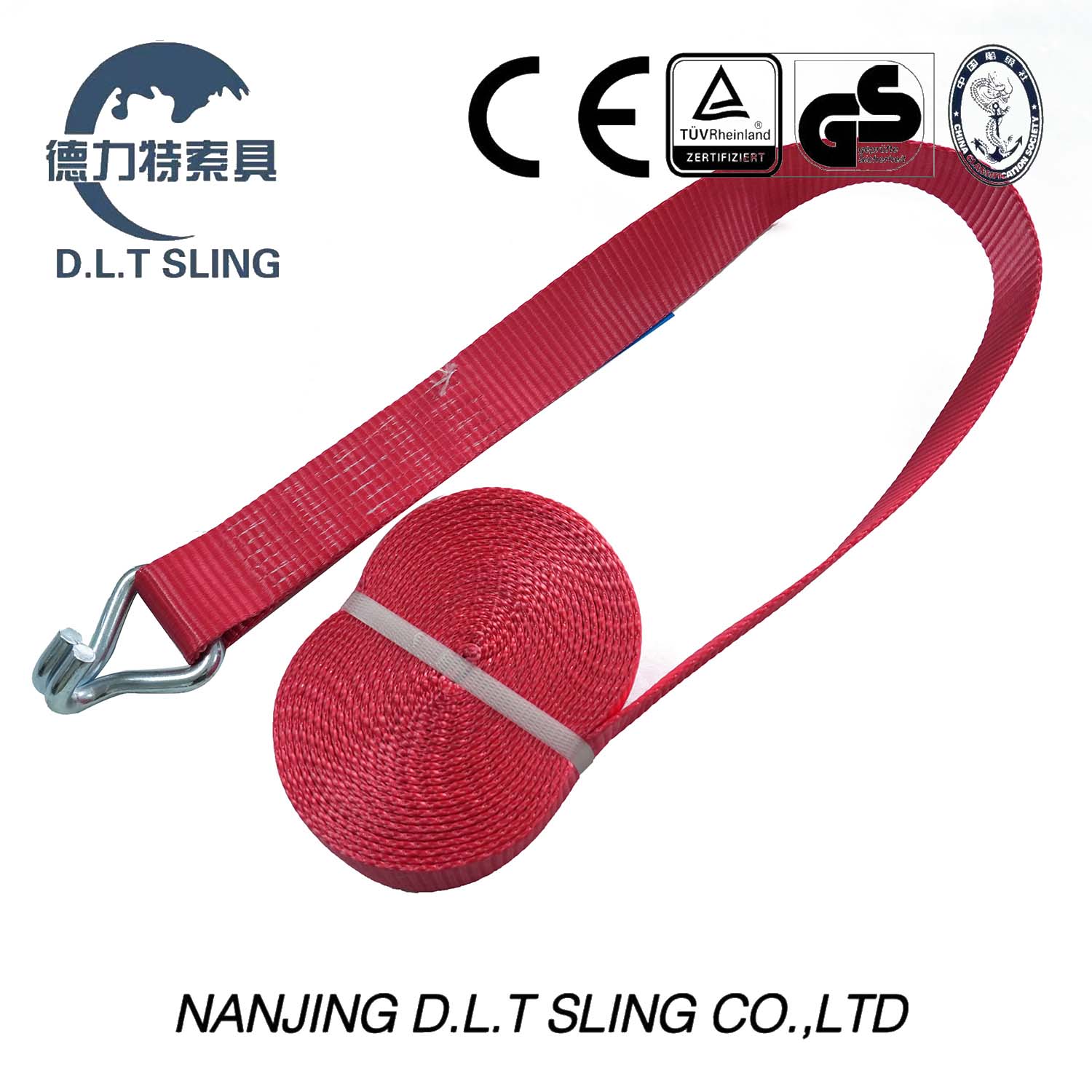

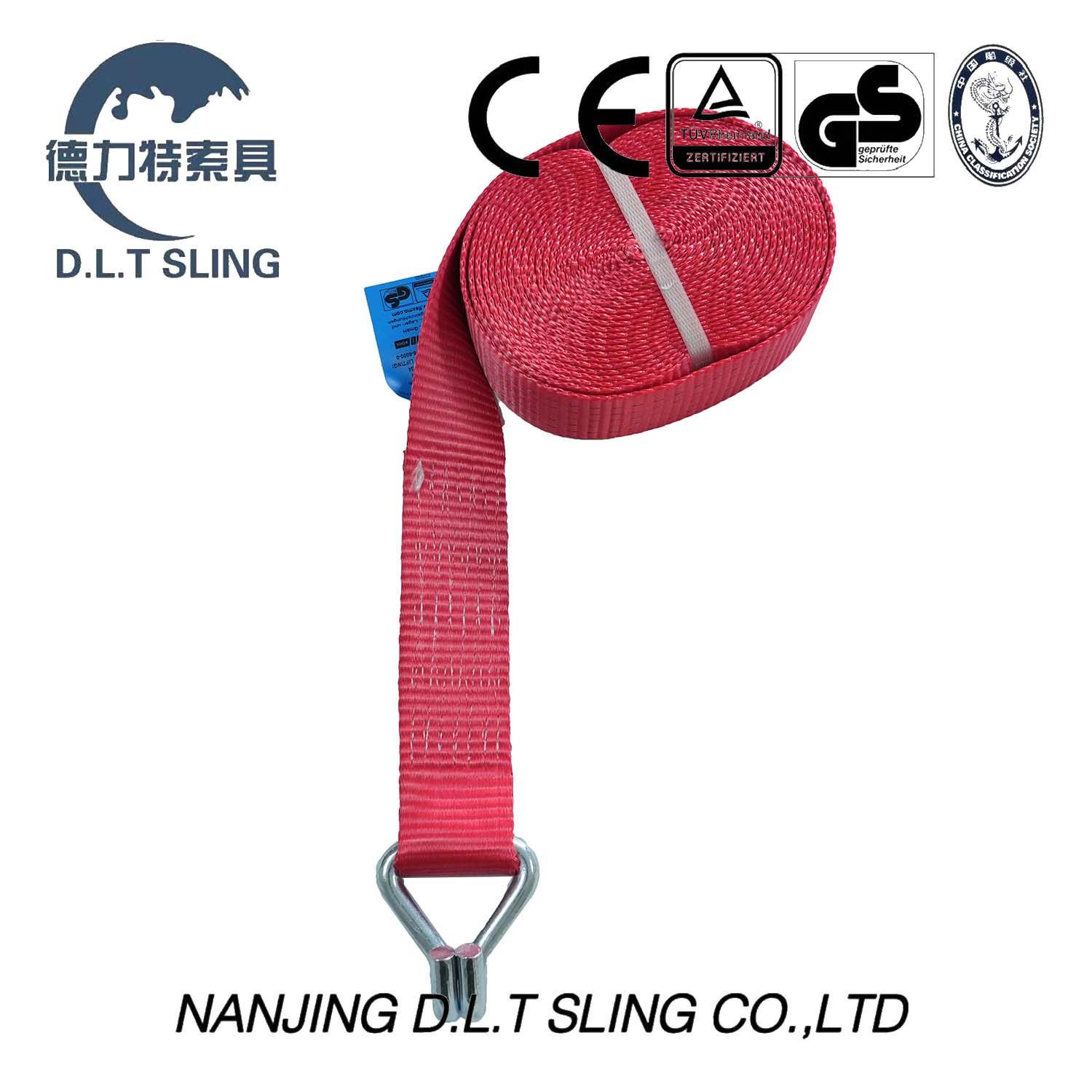

Detailed Photos
