| Quantity: | |
|---|---|

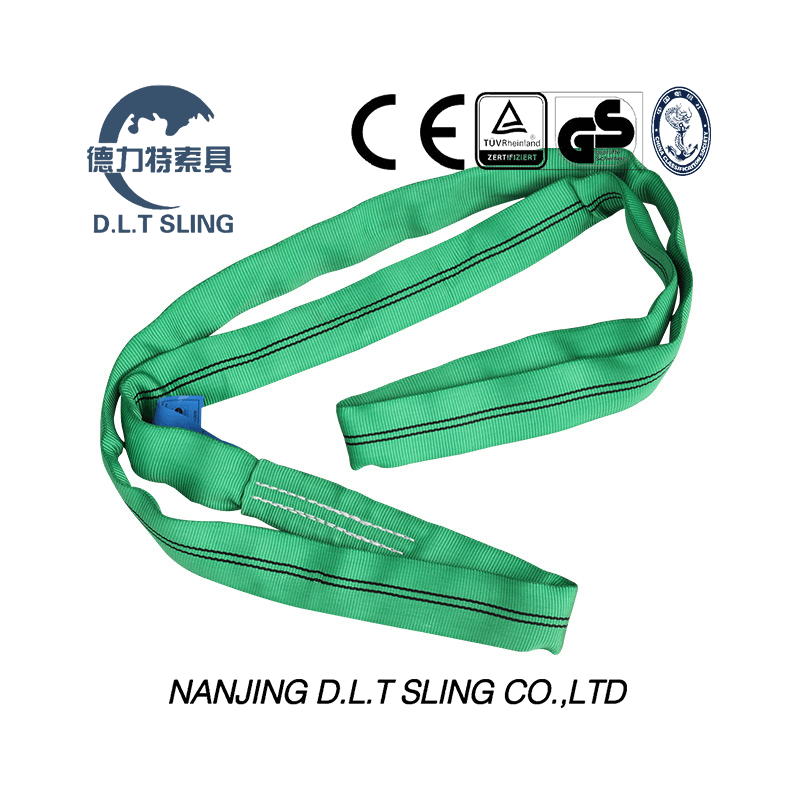

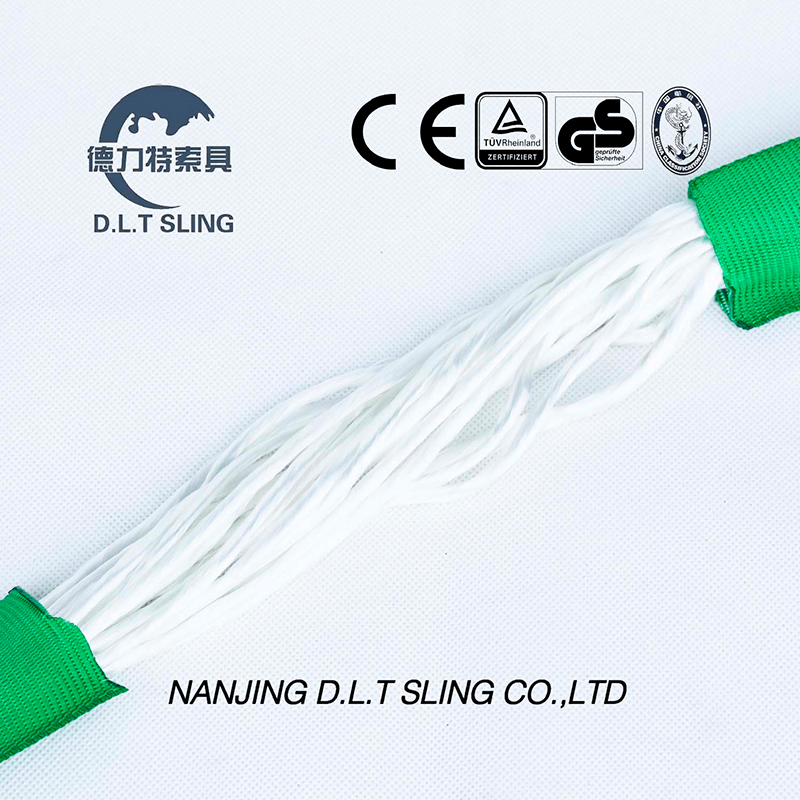

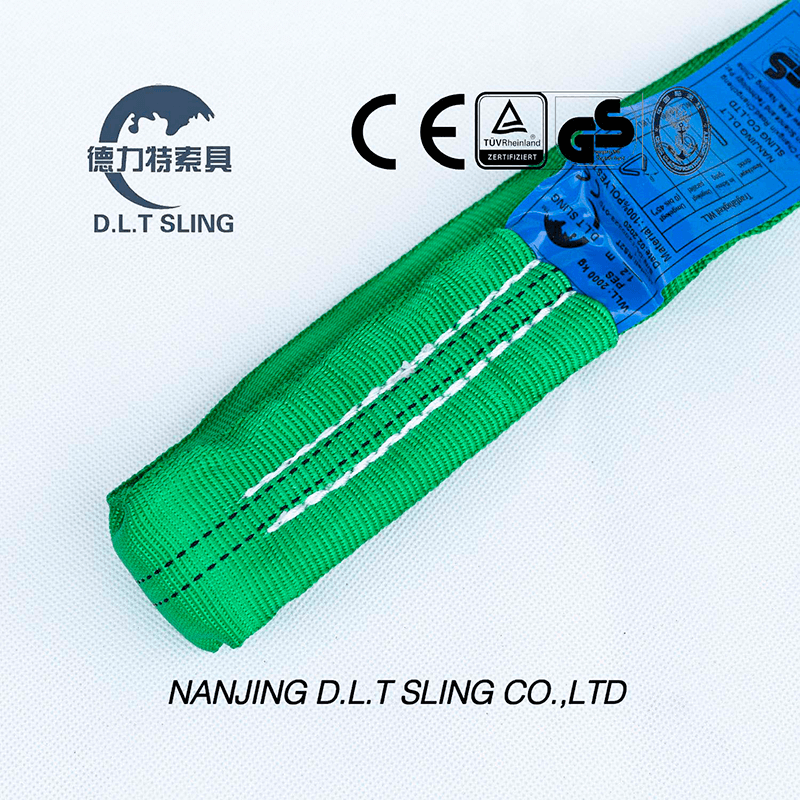

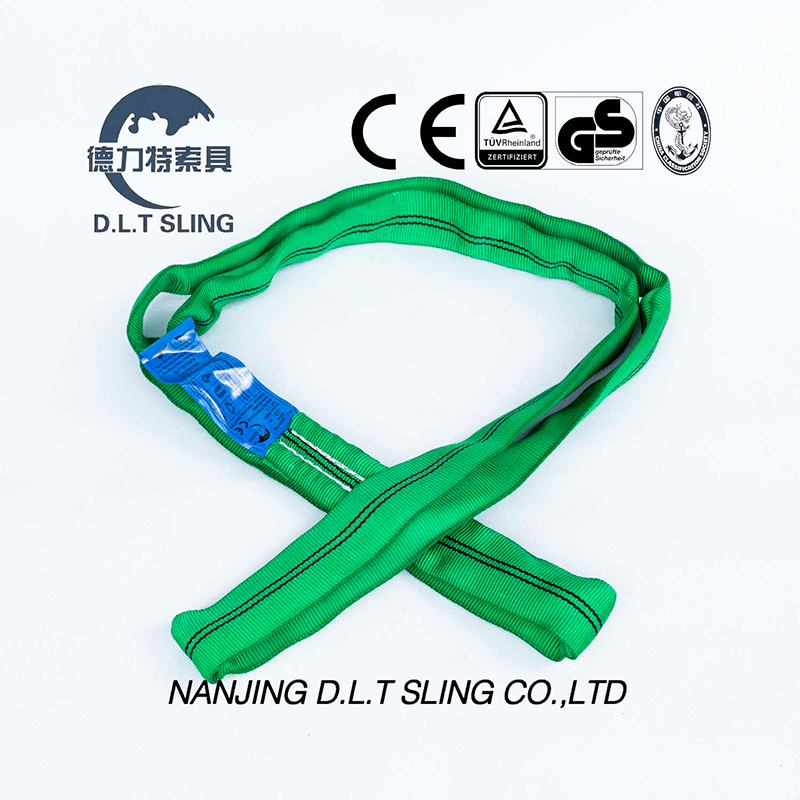

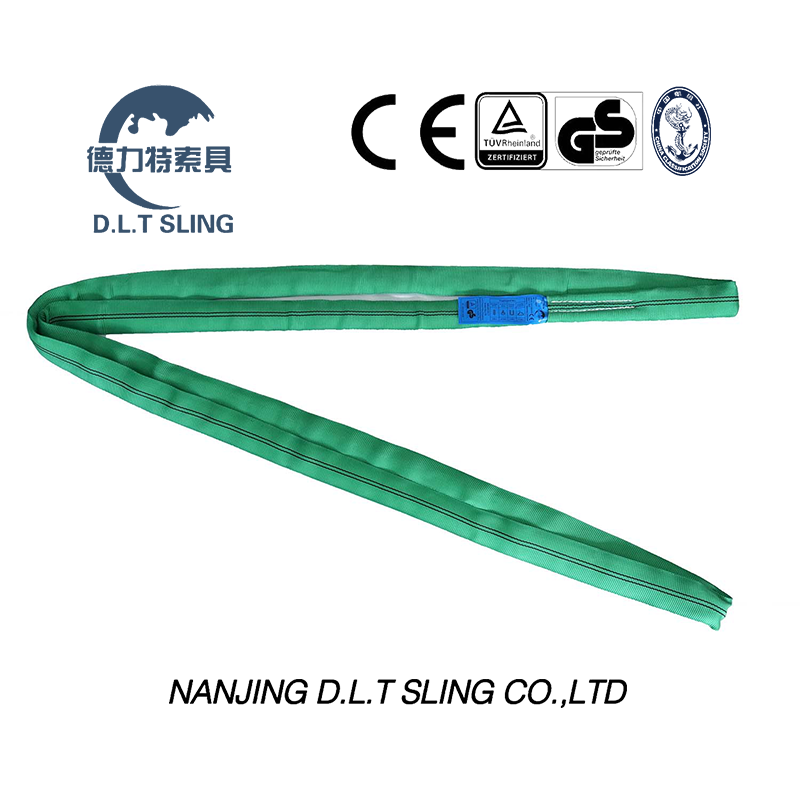

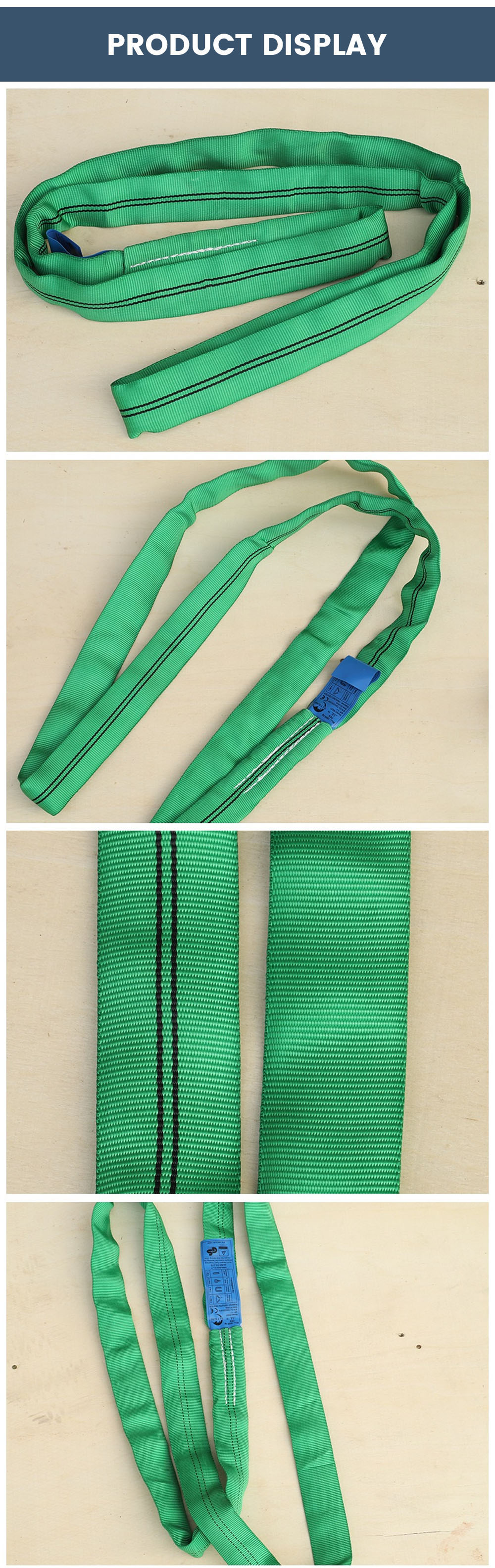

Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted. Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights. Manufactured to EN 1492-2, JB/T8521.2, AS4497.1 conforming to the CE GS.
The unique advantages of Round Sling:
1. Color code, in according with international standard, to validate sling capacity.

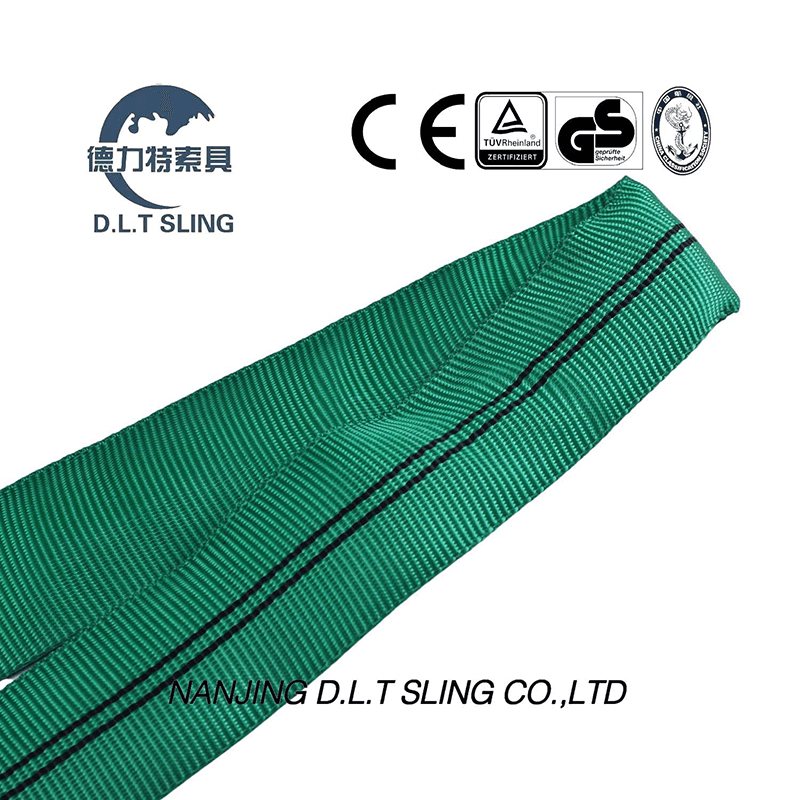

2. Special thickness sleeves and special technical to add using life.
3. Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4. Clearly print WLL and length on surface of sling.
6. Change-bearing point to add using life.
7. If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.

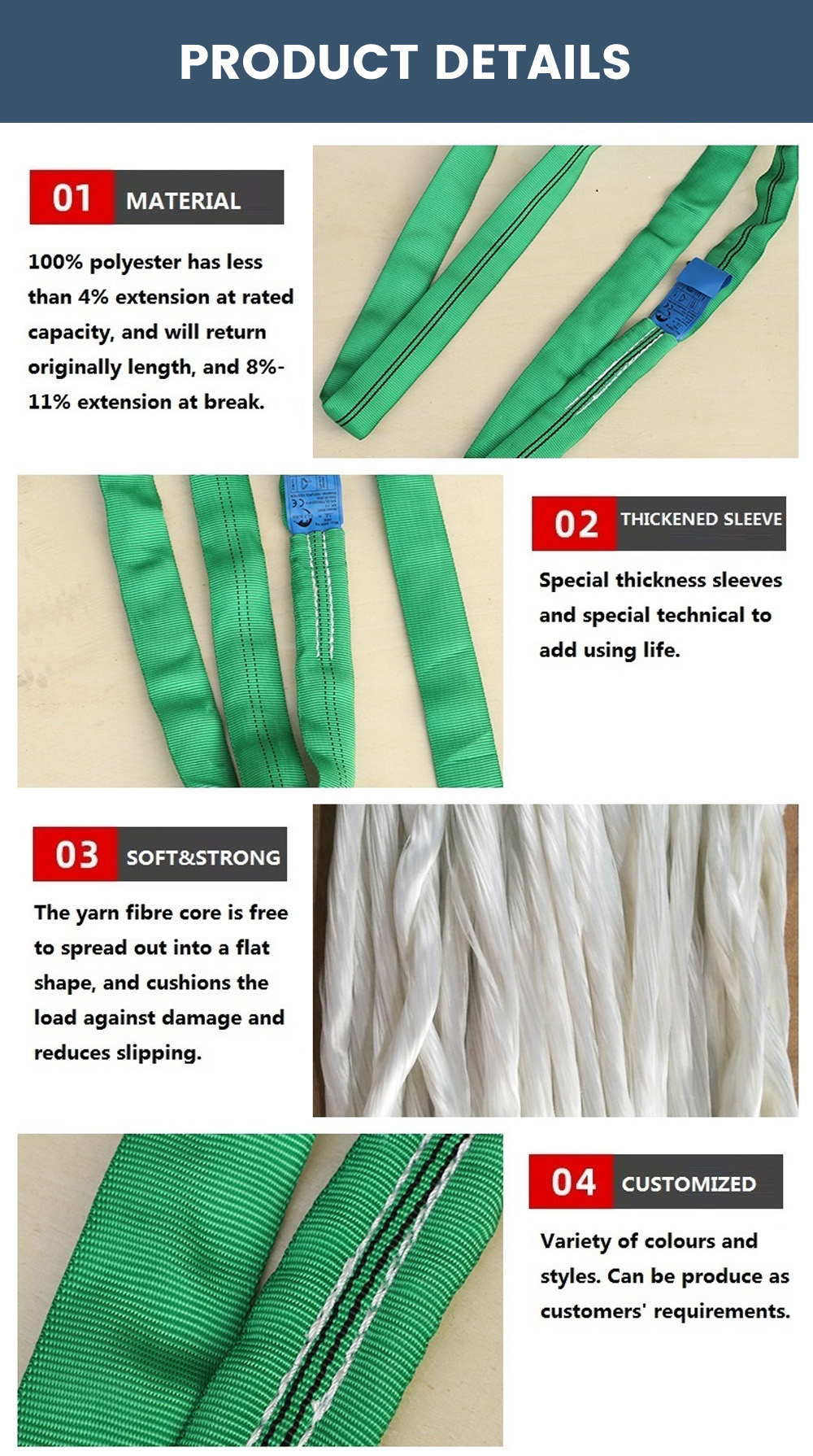

8. 100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
9. Clearly tag with serial number and a copy of certificate together with one sling.
10. Working temperature range: -40ºC-100ºC.

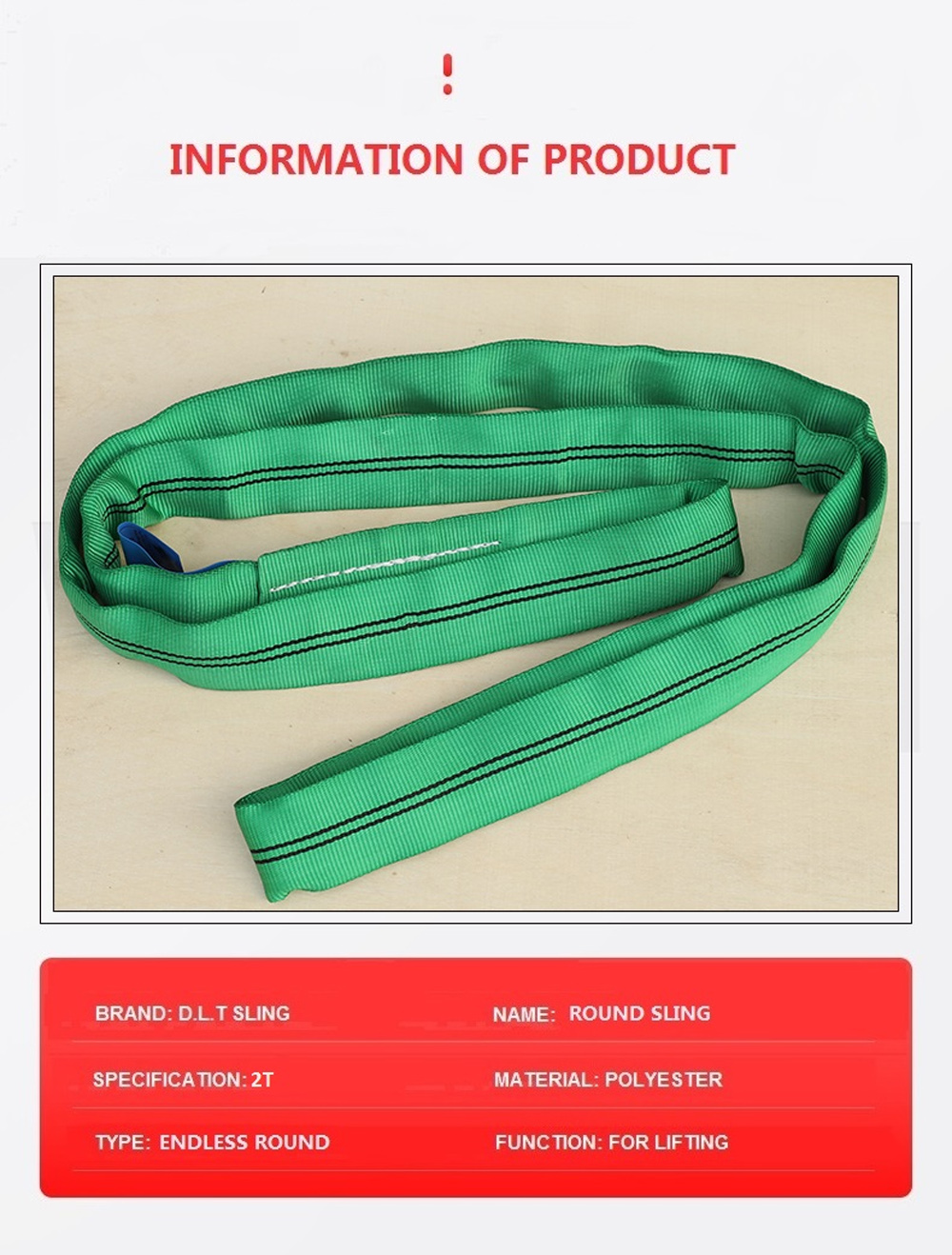

TYPE | RS7020 |
Brand Name | Nanjing D.L.T Sling |
Place Of Origin | Nanjing |
Business Type | Manufacturer, Exporter |
Working Load Limit | 2000KG |
Break Strength | 14000kg |
Shape | Endless/eye-eye |
Material | Polyester |
Length | customized as require |

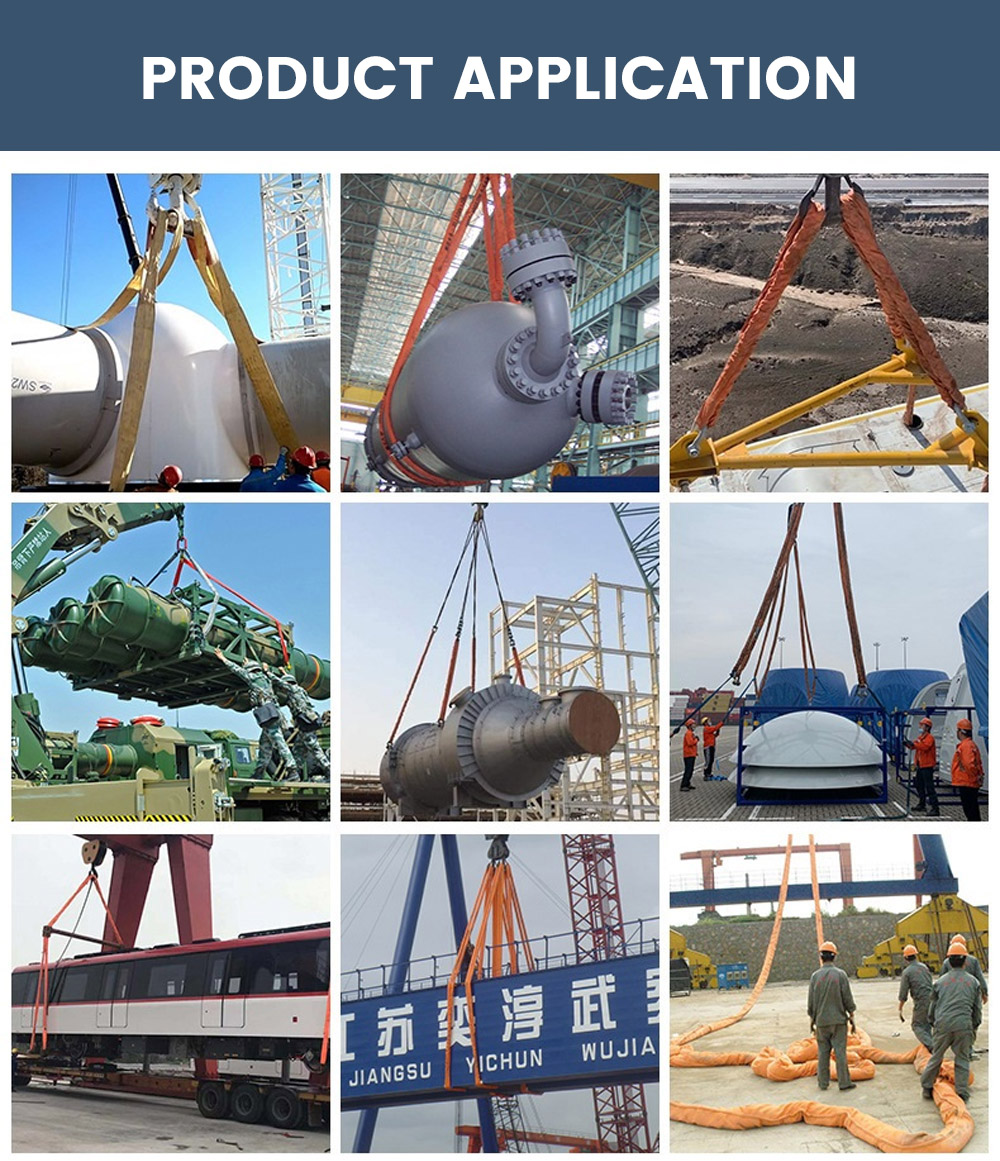

Application | Safty, transportation |
Certification | GS, CE, ISO9001, CCS |
Color | Green |
Advantages:
1. For endless round sling, its life span will get longer by changing its loading point in use;
2. High ratio of force to weight, light in weight, and also flexible. It is available that the sling is used without glove or other protective measure;
3. High abrasion resistance, without joint inside, low elongation, at WLL, the elongation not in excess of 3%.
2T ROUND SLING | Model | Color | Safety factor | Width(mm) | M.B.S |
| RS2T5F | Green | 5 | 50 | 10T |
RS2T6F | Green | 6 | 50 | 12T | |
RS2T7F | Green | 7 | 50 | 14T | |
RS2T8F | Green | 8 | 55 | 16T |
