Section 1 Introduction to the sling:
A sling is a tool used to lift heavy objects, usually made of high-strength materials with good load carrying capacity and durability. According to the different lifting objects, suspenders can be divided into fiber suspenders, chain suspenders, rope suspenders and so on. This technical presentation mainly describes the use of fiber sling.。
Length(m) | Weight(kg) (6:1) | |
Minimum | Maximum | |
1.5 | 80 | 0.33 |
1.5 | 80 | 0.47 |
1.5 | 80 | 0.68 |
1.5 | 80 | 0.85 |
1.5 | 80 | 1.06 |
2 | 80 | 1.28 |
2 | 80 | 1.59 |
2 | 80 | 2.1 |
2 | 80 | 2.6 |

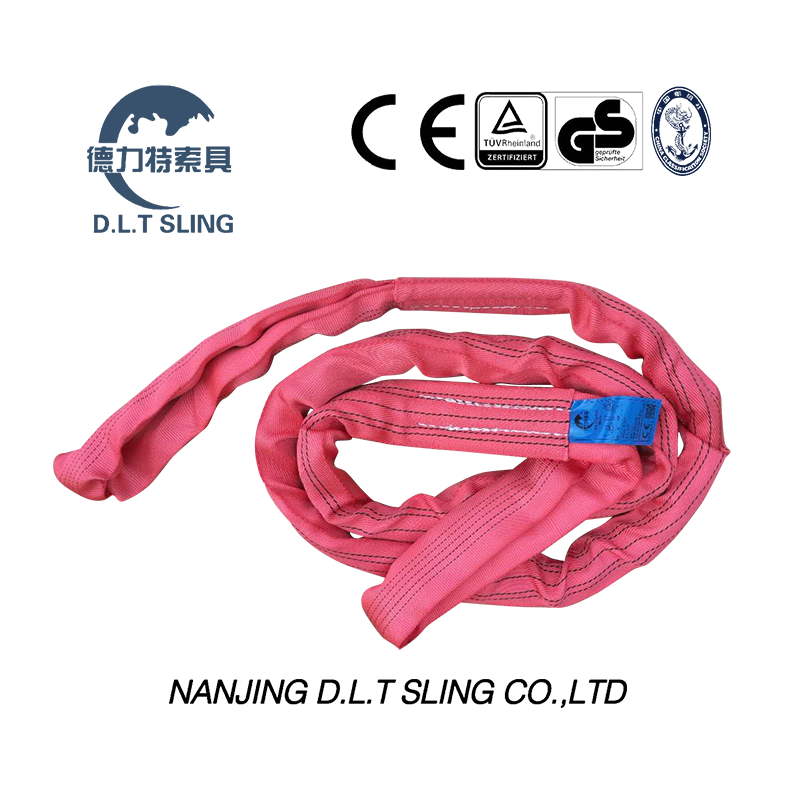

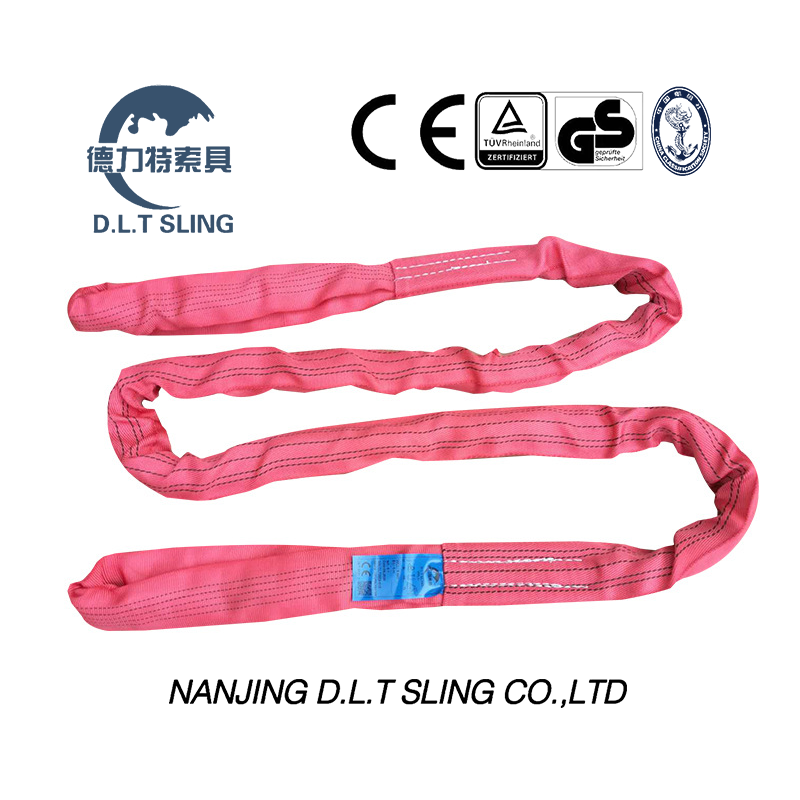

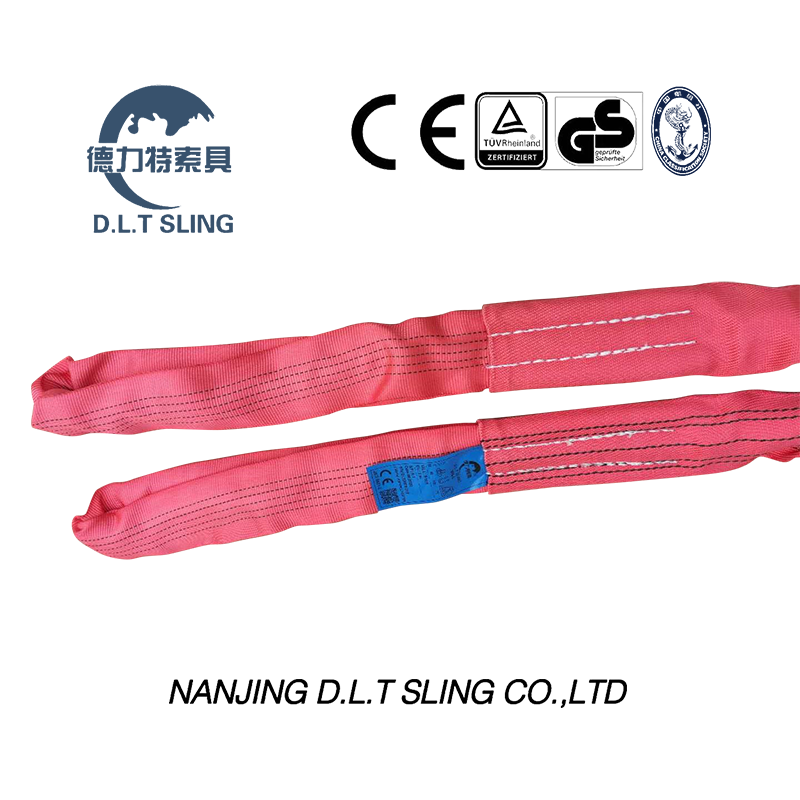

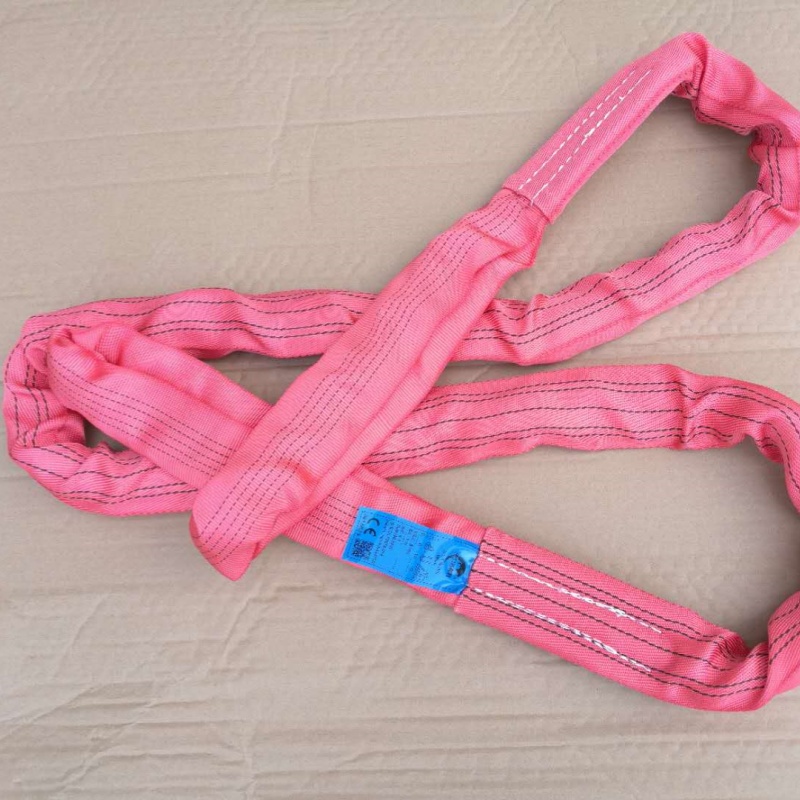

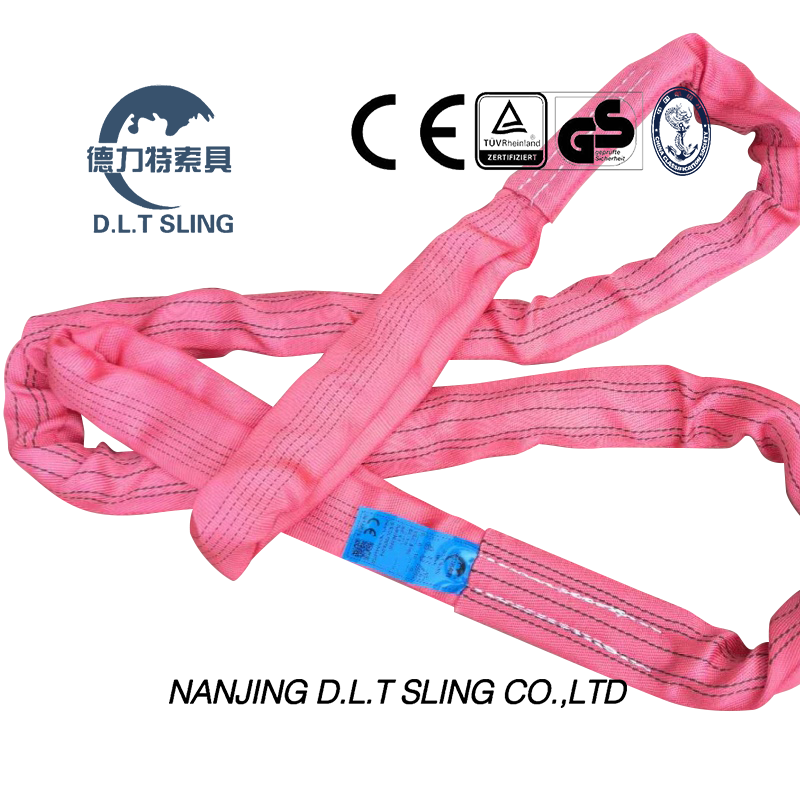

Eye and eye round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.
Selecting the Correct Sling
Roundslings are available in a range of materials and sizes in round sling form. Select the slings to be used and plan the lift taking the following into account: Material - polyester is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) is virtually immune to alkalis but is damaged by acids; polypropylene is little affected by acids or alkalis but is damaged by some solvents, tars and paints. Capacity - the sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If the slings are to be used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners which may damage the sling are likely, select a sling fitted with additional protective sleeves and/or use suitable packing. Storing and Handling Roundslings Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried naturally. Never force dry roundslings.
Store round slings by hanging on non-rusting pegs which allow the free circulation of air. The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter, modify or repair a roundsling but refer such matters to a Competent Person.

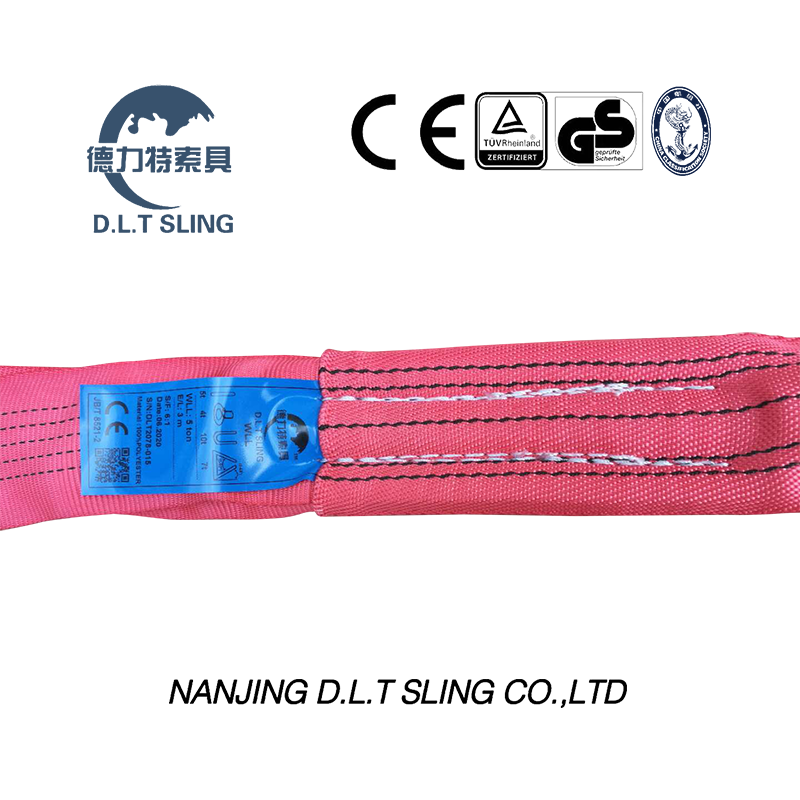

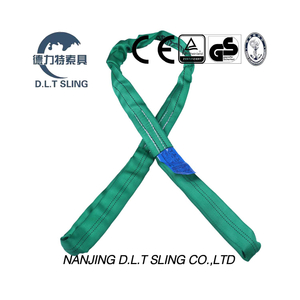

NOTE: The material from which the roundsling is manufactured may be identified by the colour of the label or printing on the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown. The outer sleeve of the sling will also be colour coded to indicate the SWL in straight pull.
