| Quantity: | |
|---|---|
The duplex sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling fitted with protective sleeves and/or use suitable packing.

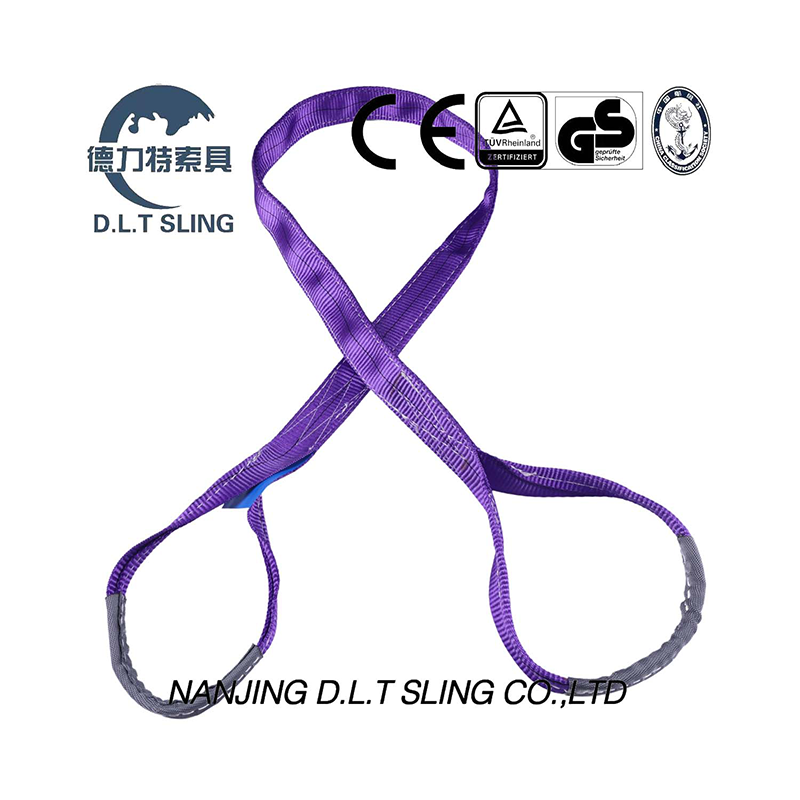

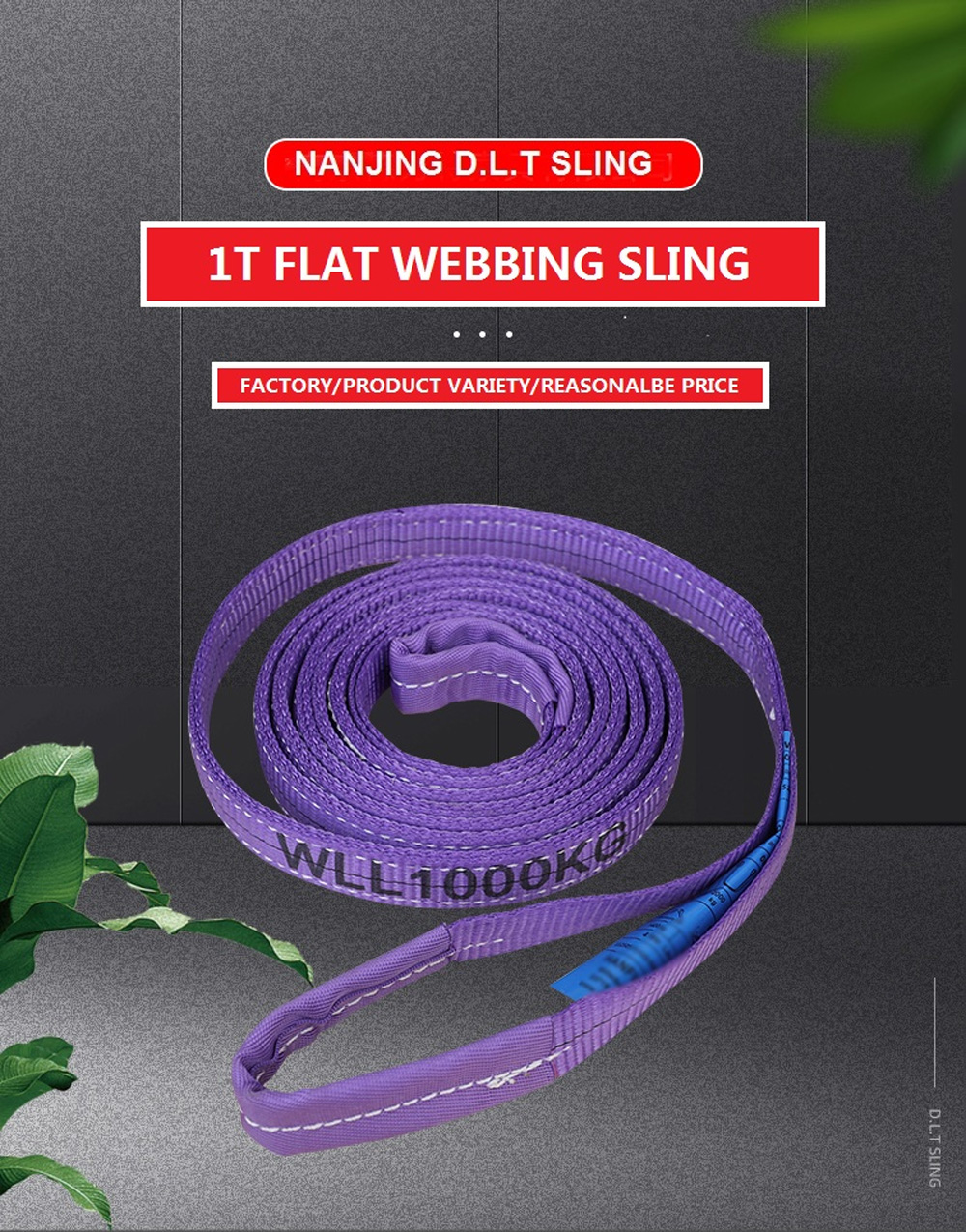

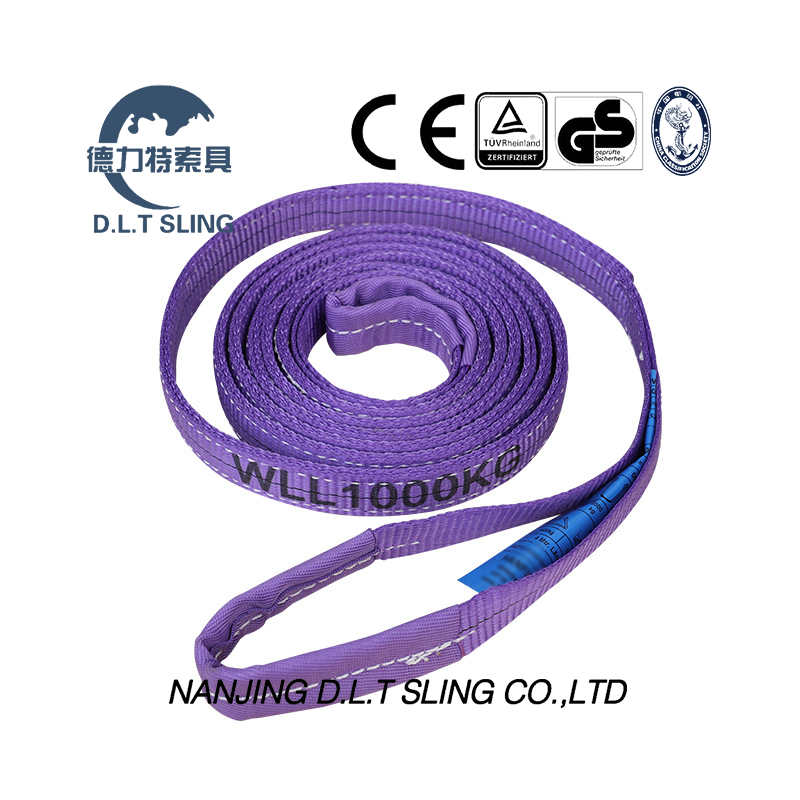

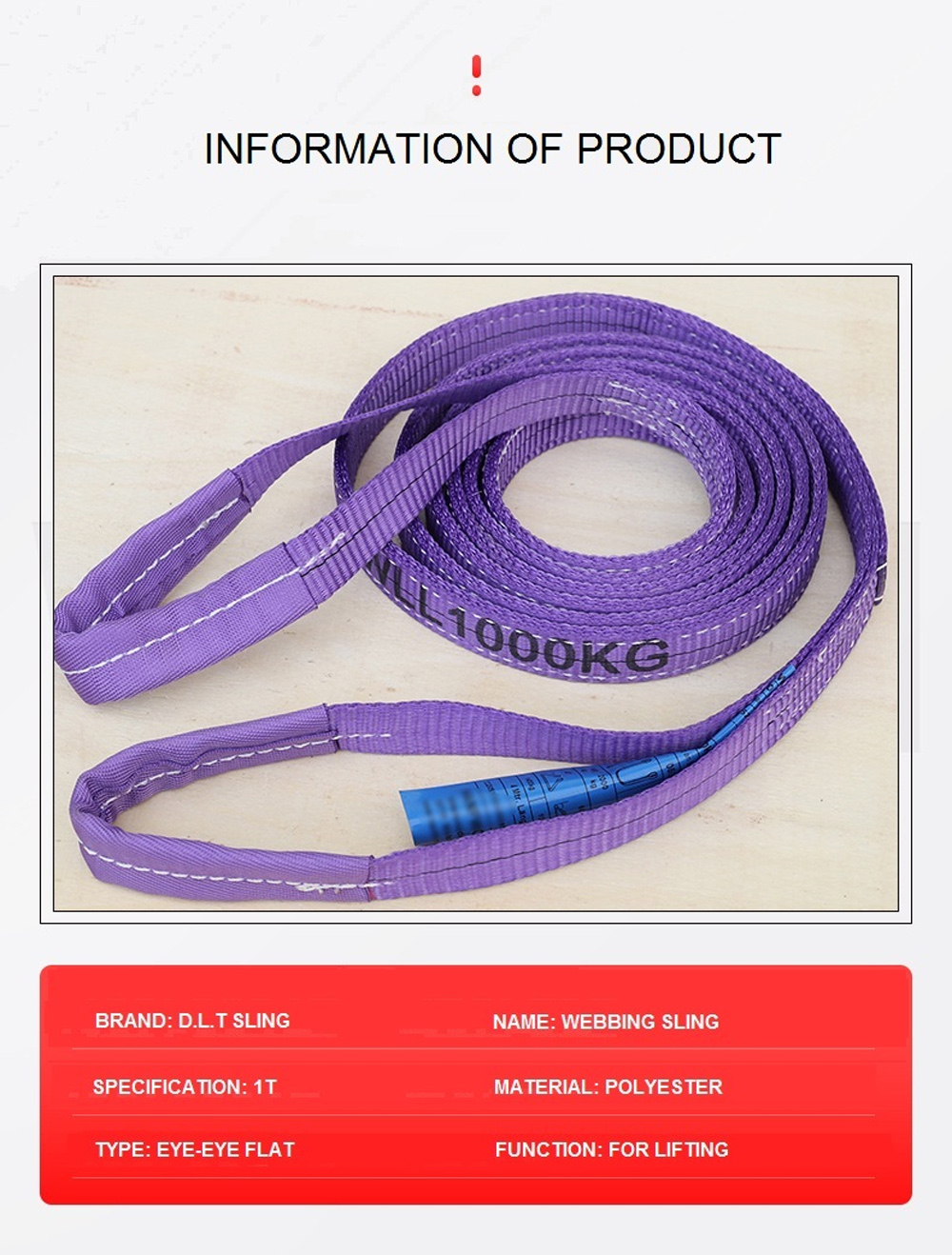

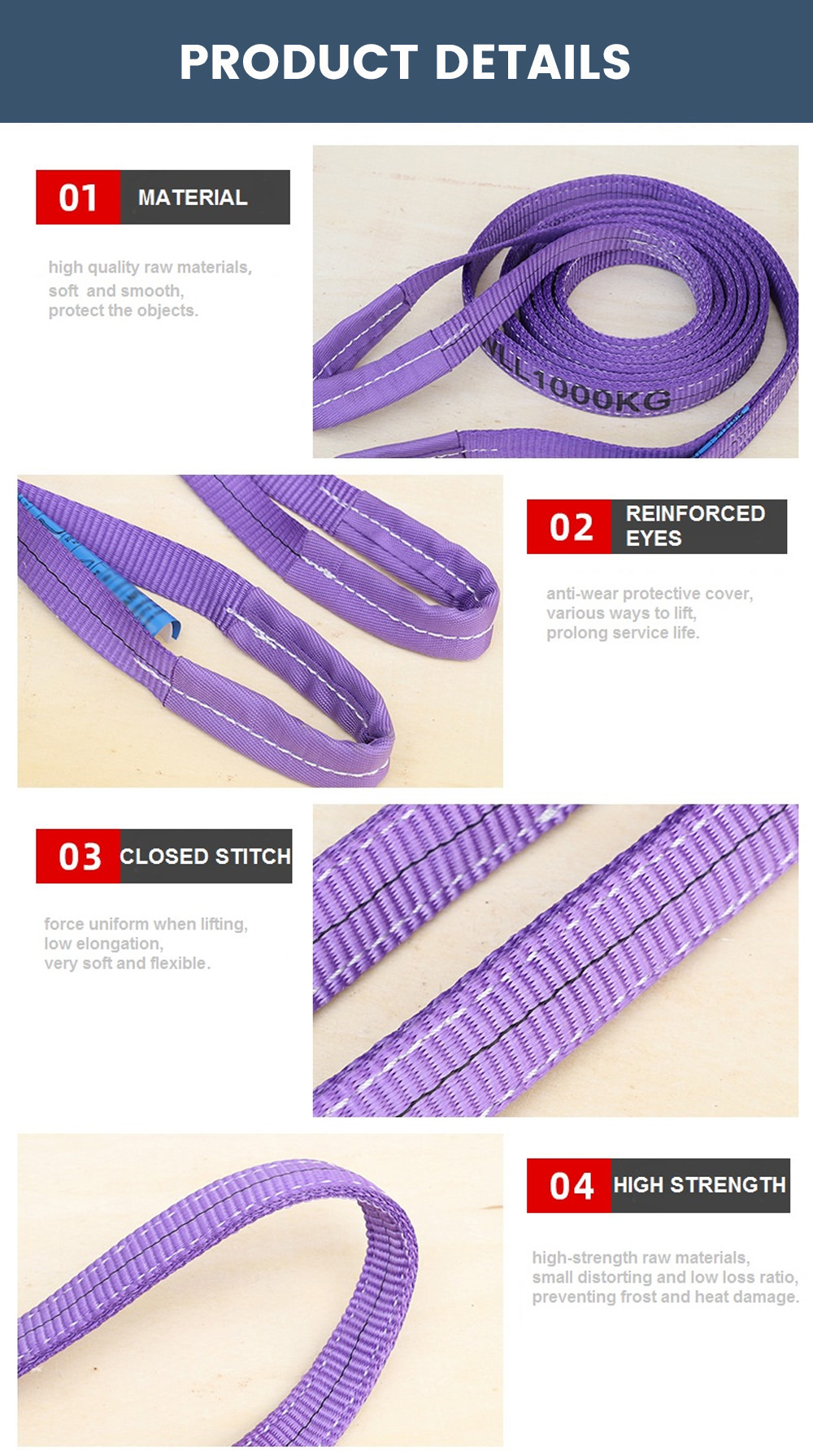

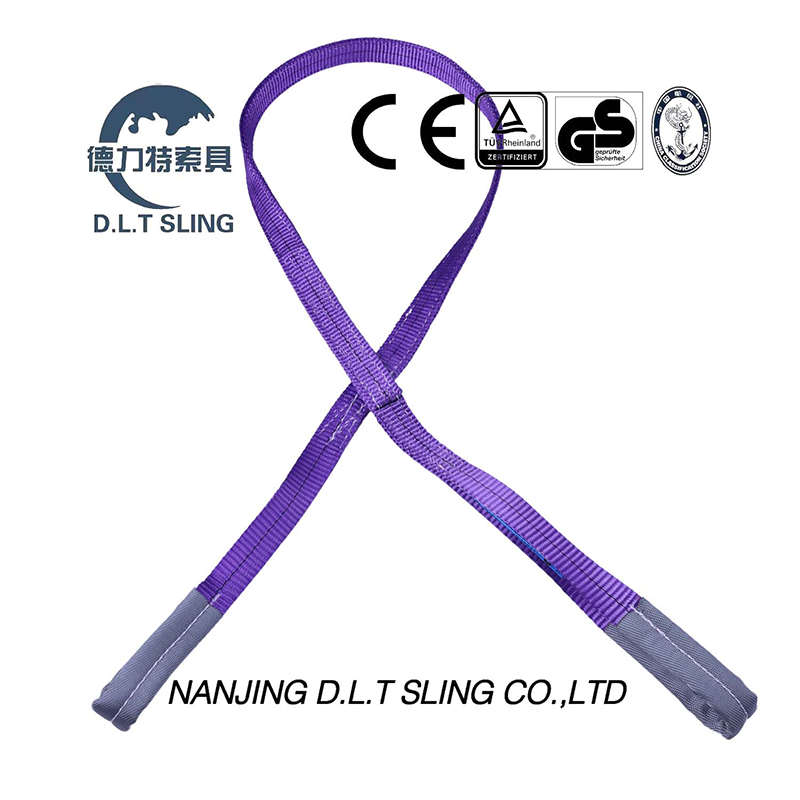

Type | 1T FLAT WEBBING SLING |
Brand Name | D. L.T SLING |
Material | 100% PES |

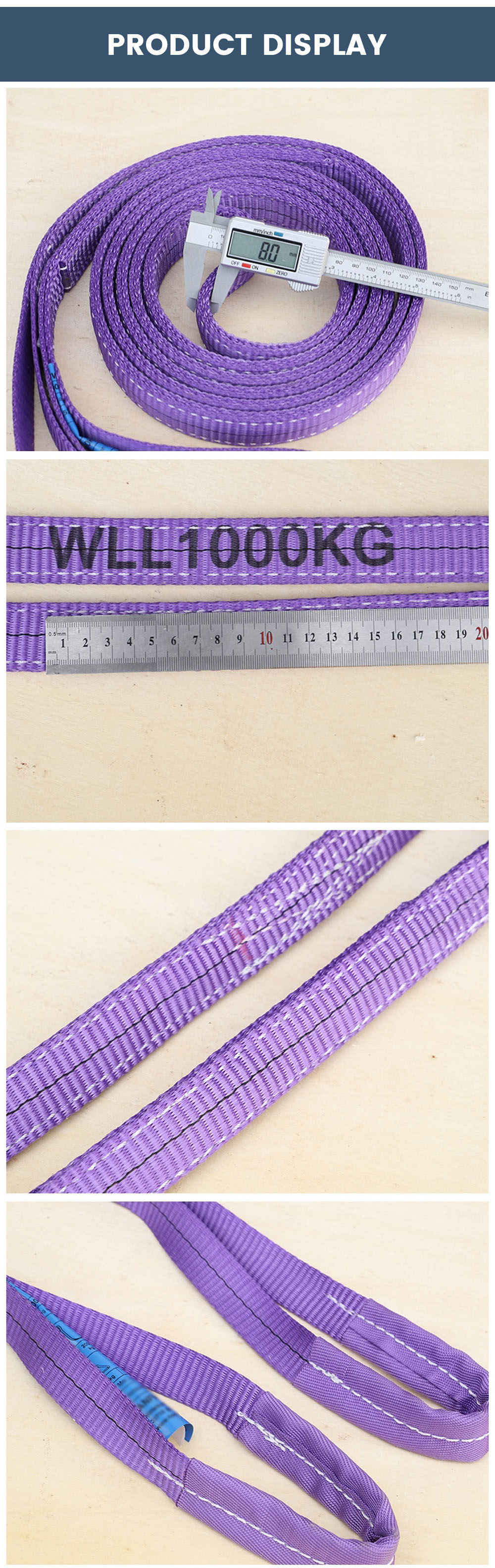

Width | 30mm |
Length | Can be customized as require |
W.L.L | 1ton/1000kg |
Safety Factor | 5:1, 6:1, 7:1, 8:1 all available |
Layer | Two ply |
Color | Violet |
Standard | EN1492-1 |
Certificate | ISO9001, CE, TUV-GS, etc. |
Place Of Origin | Nanjing,Jiangsu, China |
Packing | Plastic bag, carton and pallet |
Using Belt Slings Safely
When using a 1-ton (1T) flat webbing sling, it is important to follow proper procedures to ensure safe and effective lifting operations. Here is a step-by-step guide on how to use a 1T flat webbing sling.
Monitor the lift: Continuously monitor the 1T flat webbing sling and its attachment points during the lifting process. Regularly check for any signs of wear, slippage, or deformities. If any issues are detected, immediately stop the lift and address them before continuing.
Inspect the sling: Before use, carefully inspect the flat webbing sling for any signs of damage, such as cuts, abrasions, or frayed edges. Check the stitching and label to ensure they are in good condition and legible. Do not use a sling that shows signs of wear or damage.
Determine the load: Determine the weight of the load you intend to lift. Ensure that the load does not exceed the working load limit (WLL) of the 1T flat webbing sling. The WLL is typically indicated on the sling's label or tag.
Select the appropriate sling length: Choose a flat webbing sling with an appropriate length for the lifting operation. Ensure that the sling is long enough to accommodate the load and provide proper sling angle and choke, but avoid excessive length that may compromise lifting efficiency.
Lower the load carefully: When lowering the load, maintain control and ensure that it descends safely. Avoid sudden drops or impacts that could damage the equipment or surrounding structures.
Lift the load: Lift the load smoothly and in a controlled manner, keeping it stable throughout the lifting process. Communicate with the crane operator or lifting team to ensure coordinated and safe operations. Avoid sudden jerks or movements that could compromise the safety of the lift.
The duplex sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling fitted with protective sleeves and/or use suitable packing.
Type | 1T FLAT WEBBING SLING |
Brand Name | D. L.T SLING |
Material | 100% PES |
Width | 30mm |
Length | Can be customized as require |
W.L.L | 1ton/1000kg |
Safety Factor | 5:1, 6:1, 7:1, 8:1 all available |
Layer | Two ply |
Color | Violet |
Standard | EN1492-1 |
Certificate | ISO9001, CE, TUV-GS, etc. |
Place Of Origin | Nanjing,Jiangsu, China |
Packing | Plastic bag, carton and pallet |
Using Belt Slings Safely
When using a 1-ton (1T) flat webbing sling, it is important to follow proper procedures to ensure safe and effective lifting operations. Here is a step-by-step guide on how to use a 1T flat webbing sling.
Monitor the lift: Continuously monitor the 1T flat webbing sling and its attachment points during the lifting process. Regularly check for any signs of wear, slippage, or deformities. If any issues are detected, immediately stop the lift and address them before continuing.
Inspect the sling: Before use, carefully inspect the flat webbing sling for any signs of damage, such as cuts, abrasions, or frayed edges. Check the stitching and label to ensure they are in good condition and legible. Do not use a sling that shows signs of wear or damage.
Determine the load: Determine the weight of the load you intend to lift. Ensure that the load does not exceed the working load limit (WLL) of the 1T flat webbing sling. The WLL is typically indicated on the sling's label or tag.
Select the appropriate sling length: Choose a flat webbing sling with an appropriate length for the lifting operation. Ensure that the sling is long enough to accommodate the load and provide proper sling angle and choke, but avoid excessive length that may compromise lifting efficiency.
Lower the load carefully: When lowering the load, maintain control and ensure that it descends safely. Avoid sudden drops or impacts that could damage the equipment or surrounding structures.
Lift the load: Lift the load smoothly and in a controlled manner, keeping it stable throughout the lifting process. Communicate with the crane operator or lifting team to ensure coordinated and safe operations. Avoid sudden jerks or movements that could compromise the safety of the lift.
