Views: 0 Author: Site Editor Publish Time: 2026-06-03 Origin: Site
In construction, port logistics, machinery manufacturing and chemical processing industries, endless webbing sling has become one of the most widely used flexible lifting tools for its outstanding wear resistance and flexible rigging performance. Improper selection will lead to premature sling scrapping, hidden lifting safety hazards and extra procurement cost. This practical buying guide combines international EN1492-2 & ASME B30.9 standards to help you pick qualified endless slings matching your actual working conditions, and explain the advantages of cooperating with a professional sling manufacturer.

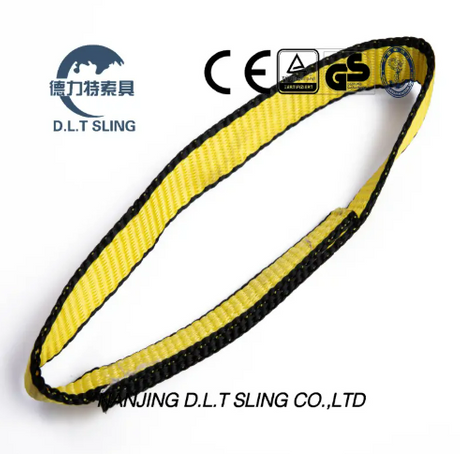

Different from fixed soft-eye webbing slings with fixed wear points, endless sling is made into a continuous closed loop via integral weaving and stitching.
Rotatable contact points: Rotate the sling position before each lift to spread friction evenly across the whole webbing, greatly extending service life;
Multi-hitch compatibility: Supports vertical, basket and choker three common rigging ways, adaptable for irregular and asymmetric loads;
Compact size: Easy to pass narrow gaps for tight-clearance lifting operations.
Safe rigging begins before you touch a payload. You must evaluate core materials meticulously. Your material choice dictates the safety and success of your lifting operation.
Polyester remains the undeniable industry standard. It features extremely low elongation. It stretches very little under heavy strain, giving you precise load control. It is also highly cost-effective for general repetitive lifting tasks. Nylon offers much higher stretch properties. This flexibility helps it absorb dangerous shock loads during sudden movements. However, nylon is highly susceptible to acid degradation. UHMPE (Ultra-High-Molecular-Weight Polyethylene) is designed for extreme heavy lifting. It offers higher strength-to-weight ratios than steel. It provides near-zero stretch for absolute precision.
All standard endless slings follow EN1492-2 universal color marking for quick WLL identification on site:
Table 1: Synthetic Core Material Comparison | |||
Material Type | Stretch / Elongation | Primary Advantage | Notable Weakness |
|---|---|---|---|
Polyester | Low (~3%) | Cost-effective, highly precise control | Degrades in highly alkaline environments |
Nylon | High (~10%) | Excellent shock load absorption | Highly susceptible to strong acids |
UHMPE | Near Zero (<1%) | Stronger than steel, extremely lightweight | Premium cost, specialized applications only |
Visual standards simplify procurement and field safety. The EN 1492-2 color-coding framework provides a universal visual management system. You can instantly identify safe working loads simply by looking at the fabric hue. We rely on this standardized chart daily.
EN 1492-2 Standard Color-Coding Framework Chart | |
Sling Color | Rated Working Load Limit (WLL) |
|---|---|
Purple | 1 Ton (1,000 kg) |
Green | 2 Tons (2,000 kg) |
Yellow | 3 Tons (3,000 kg) |
Grey | 4 Tons (4,000 kg) |
Red | 5 Tons (5,000 kg) |
Brown | 6 Tons (6,000 kg) |
Blue | 8 Tons (8,000 kg) |
Orange | 10 Tons (10,000 kg) |
You must also understand the mathematics behind safety factors. Reliable manufacturers engineer these tools with a 6:1 or 7:1 safety coefficient. What does this mean for practical risk mitigation? It represents the buffer between the working load limit and actual breaking strength. A 2-ton green sling with a 7:1 factor will physically snap at 14 tons in a laboratory. You never lift 14 tons. We use this massive buffer to protect against minor undetected wear, sudden shock loads, and slight angle miscalculations.
Three mainstream synthetic materials with different chemical & stretch features for different workshop conditions:
Polyester(PES): Elongation around 3%, low stretch for precise positioning lifting; resistant to acid but damaged by strong alkali, the most cost-effective general-purpose option;
Nylon(Polyamide): 8%~10% stretch rate, excellent shock absorption for dynamic impact lifting; anti-alkali but invalid under acid exposure;
UHMPE: Near-zero stretch, ultra-light and high tensile for super heavy lifting; higher cost for customized high-end projects only.
All standard synthetic slings cannot work continuously above 90℃(194℉). High-temperature working scenarios need customized heat-resistant sling solutions.
Qualified endless slings need to pass strict factory test and comply with global mainstream standards: EN1492-2(Europe), ASME B30.9(USA), ISO4878. Formal suppliers can provide batch tensile test report and complete product traceability. Missing or unreadable WLL tag means the sling should be discarded directly per OSHA rules.
Most industrial projects require non-standard specifications, reliable factories support full customization:
Custom length, width and tonnage according to your lifting requirement;
Custom edge wear pads, anti-alkali/acid special coating for harsh working environment;
Private logo labeling and customized package for bulk order.
Different industries leverage this rigging tool to solve unique operational hurdles. Let us explore the primary usage areas where these flexible lifters excel.
Construction & Heavy Infrastructure: Crews handle precast concrete walls, structural timber, and massive pipework. Surface preservation is critical. An endless webbing sling provides balanced weight distribution. It prevents load shifting and refuses to chip fragile concrete edges.
Logistics & Port Operations: Dock workers require rapid rigging for highly variable shipping loads. We emphasize the massive ergonomic benefit here. Replacing heavy steel chains reduces labor fatigue drastically. Workers maneuver faster, accelerating load preparation times across busy shipping yards.
Industrial Manufacturing & Machining: Operators frequently move finished metal components, aerospace turbines, and sensitive machinery. You must move these items without causing surface scratches. Synthetic fibers glide smoothly without causing friction burns to expensive payloads.
Specialty Environments (Foundries & Chemical Plants): Standard polyester melts quickly in extreme environments. Foundries and chemical plants demand specialized endless variations. We highlight the need for heat-resistant or spark-resistant models. You must upgrade your gear when operating outside standard synthetic thresholds.
With decades of sling R&D and production experience, we strictly follow international production specifications:
✅ Stable raw material inspection & finished product destructive test;
✅ Flexible lead time for both small trial order and bulk wholesale;
✅ Professional rigging engineers provide free selection suggestions to avoid wrong purchase & safety accidents.
If you need custom endless webbing sling for your construction, factory or port project, send your load weight, working environment and required size to get free tailored quotation.
A: An endless webbing sling usually consists of a flat woven continuous loop of material. A round sling features independent internal core yarns housed loosely within a separate, protective tubular outer jacket. Round slings offer softer load contact, while flat endless web slings provide a slightly wider surface grip.
A: A well-maintained synthetic sling has a base lifespan of up to 10 years. However, this timeframe is heavily reduced by environmental factors. Prolonged UV exposure, accidental overloading, chemical exposure, and sharp edge friction can reduce its safe lifespan to just a few months.
A: Yes, they are highly effective and safe in choker hitches. You must ensure the choke angle exceeds 120 degrees. You must also verify that the sling is not forced into sharp folds or twisted unnaturally around the load surface during the lift.
