an endless webbing sling can be a suitable choice for machinery and finished metal parts when the sling is correctly rated, the rigging method controls the load, and every contact edge is protected. Its flat synthetic body spreads contact over a relatively wide area, which can be valuable for painted frames, coated fabrications, stainless components, cabinets, and equipment that should not be marked by metal rigging. But “soft” does not mean risk-free. Machine geometry, weight distribution, sharp edges, lifting points, chemical residue, and the intended hitch all determine whether a webbing sling is the right tool. This article provides a practical evaluation method before the load leaves the floor.
An endless sling can protect a sensitive finish better than unprotected metal contact, but dirt, burrs, and corners can still cause damage.
The equipment’s real centre of gravity and approved pick points matter more than its outside shape.
A basket hitch may cradle a stable base; a vertical hitch needs an approved connection; a choker must not crush or slip on the component.
Edge protection is essential whenever webbing passes over a sharp, thin, or abrasive feature.
Use the tag’s hitch-specific working load limit and remove damaged or unidentified slings from service.
Machinery is rarely a simple, uniform object. A pump package can have a motor on one end. A gearbox can be heavy around an internal shaft. A skid can have an apparently flat base interrupted by protruding bolts, drains, fork pockets, or thin sheet-metal covers. A control cabinet can be light at the bottom and top-heavy after devices are installed. The fact that a component is wrapped or boxed does not prove it is balanced or that a sling can safely pass under it.
Begin with information supplied by the equipment manufacturer: total lifting weight, approved lifting points, centre-of-gravity marking, and any prohibited contact areas. Include temporary installation items, process fluids, cables, tooling, and shipping supports in the weight. If that information is unavailable, do not replace it with a visual guess. A competent lift assessment should establish the pick method before rigging proceeds.
The industrial uses of endless webbing slings include machinery handling, but the application remains conditional. A sling is one part of the lifting system. The hook, shackle, lifting lug, spreader, protective sleeve, crane, and the route the load travels must also be compatible with the planned load.

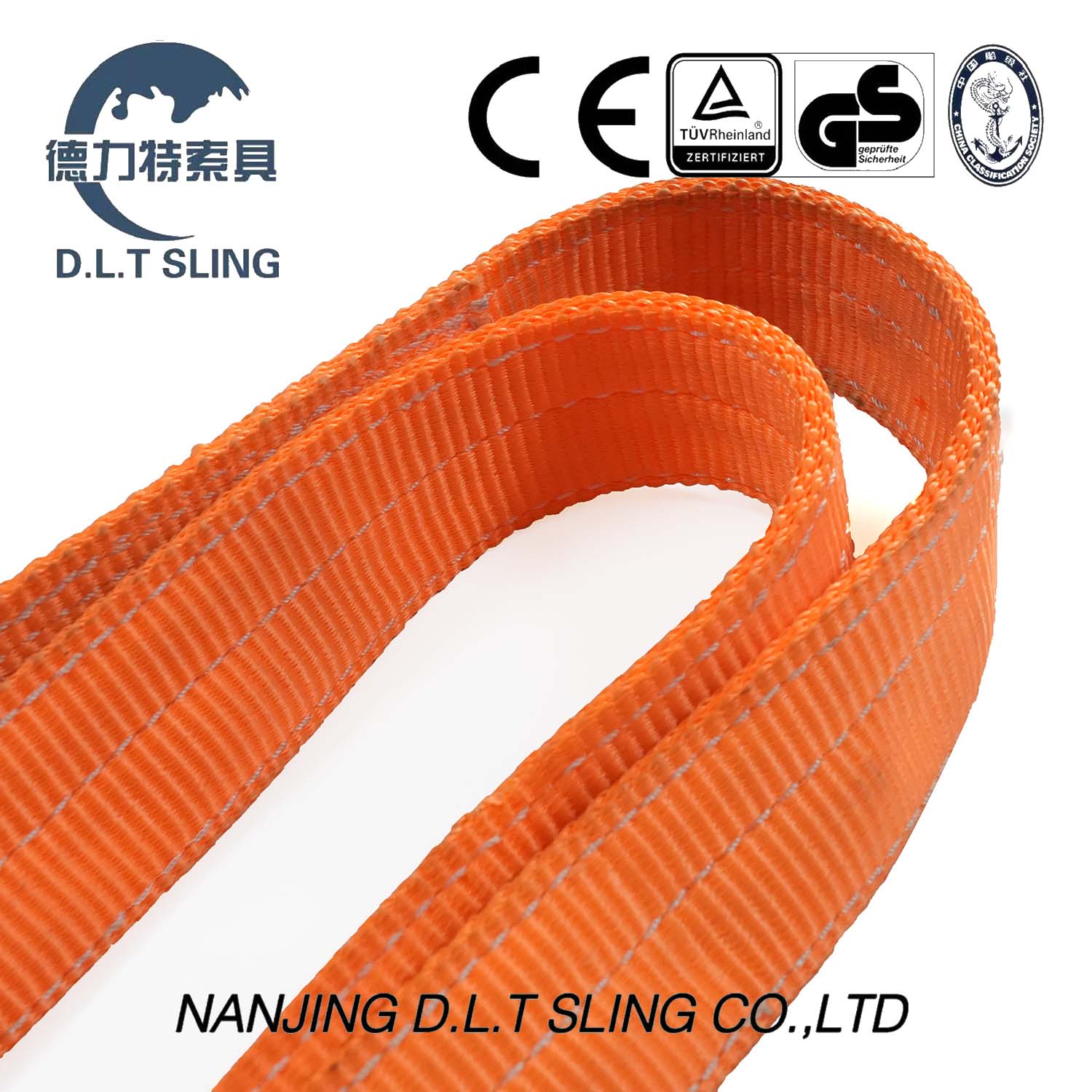

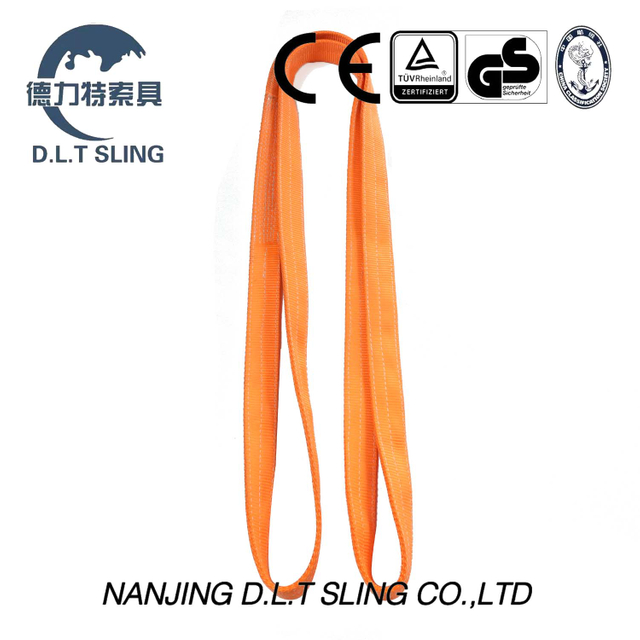

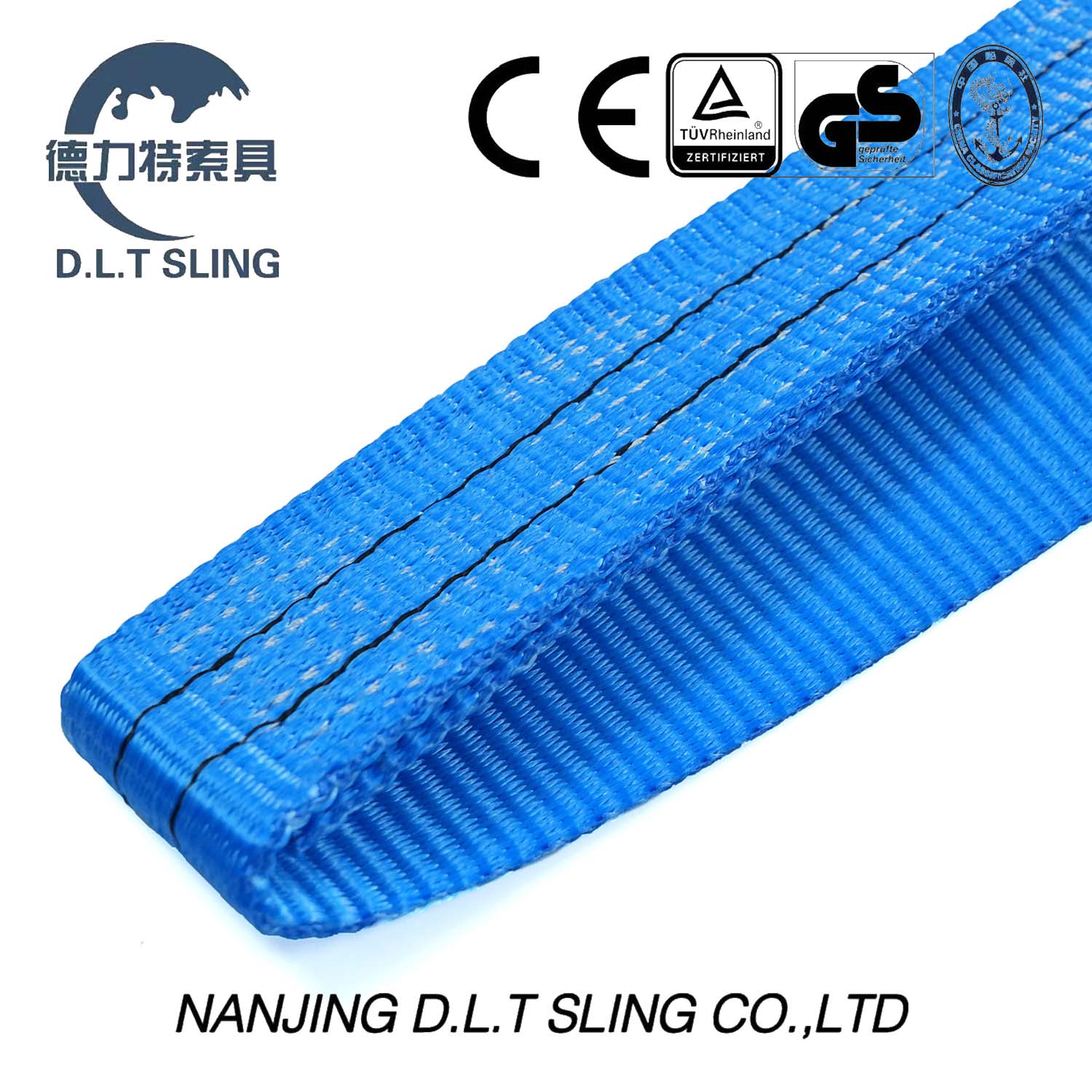

An endless webbing sling is a continuous loop with no fixed eye ends. It can be configured to create a broad bearing route under or around a load, and another section of the loop can be seated in the hook or connecting hardware. This construction gives the rigger useful placement options. The loop may also be repositioned between lifts to distribute normal service wear rather than repeatedly loading one section.
For finished metal parts, the principal advantage is pressure distribution. Wide webbing can bear over more surface than a narrow line contact, helping avoid point loading on a painted face or polished feature. It can also conform to gently curved or irregular shapes. The product design is not a guarantee against cosmetic damage: if chips, grit, metal swarf, or a sharp edge lie between the webbing and the workpiece, the lift can still scratch the part or cut the sling.
The all-sling webbing sling category offers a useful starting point for comparing designs, but a buyer should verify the exact label and documentation for the selected item. Width, length, construction, material, and rated capacity must suit the lift. Do not substitute a nominally similar sling based only on colour or a product photograph.
When handling finished metal, the sling protects the part only if the part also protects the sling. Treat both surfaces as part of the same decision.
Check whether webbing will cross visible faces, edge radii, decals, labels, lacquer, plated surfaces, machined surfaces, or sensitive covers. Choose the bearing path so it contacts strong, non-cosmetic load areas where possible. Use a clean protective sleeve or pad if a surface needs extra isolation. A product protection layer should not reduce the sling’s grip, migrate under tension, or conceal an unsafe edge.
Avoid trapping abrasive particles. A few metal chips under a tensioned sling can act like a cutting tool against paint or stainless steel. Keep the sling dry and clean, and do not drag it across the shop floor before placing it under a finished part.
Inspect every contact point—not just obvious corners. Common hazards include pressed-sheet edges, casting flash, threaded studs, keyways, weld spatter, lifting lug edges, forklift-pocket corners, and sharp crate hardware. A rounded-looking component can conceal a thin lip underneath. If a section of webbing will move against an edge during lifting, lowering, or load rotation, protection must cover the expected movement path as well as the initial contact point.
Use lifting edge protection designed for the job. It needs sufficient strength and stability to remain aligned while the sling is tensioned. Foam, cloth, cardboard, or loose packaging may prevent a light scuff but should not be assumed to prevent cutting or severe abrasion. If a safe protective arrangement cannot be achieved, select another lifting method.
The best hitch is the one that supports and controls the specific load. The endless loop supports several common arrangements, but each has limitations.
Machine or metal part condition | Potential arrangement | What must be confirmed |
|---|---|---|
Stable skid or crate with clear underside | Basket hitch | The sling cannot slide, squeeze the load, or contact sharp base edges. |
Fabrication with approved lifting lug | Vertical connection | Lug, hook/shackle fit, and vertical rated capacity are appropriate. |
Pipe section or smooth cylindrical component | Controlled choker | The choke grips without damaging the part or allowing rotation. |
Long panel, beam, or frame | Two-point / spreader-based plan | Centre of gravity, edge protection, leg angles, and deflection are controlled. |
Top-heavy cabinet or assembly | Engineered multi-point lift | Approved points prevent overturning and side loading. |
In a basket hitch, the load rests in a sling cradle. That can be well suited to a compact, stable base, but the load must remain centred and unable to roll or slide out. The two sling parts and their angle do not create an automatic capacity figure; use the rated information for the exact arrangement. Keep the legs far enough apart for stability while recognizing that shallow angles increase leg tension.
A vertical hitch is appropriate only when the load has an approved lifting point or a verified route for direct support. Never wrap an endless sling around a shaft, guard, pipe, or handle merely because it looks strong enough. It may bend, slip, damage an internal seal, or produce unacceptable side loading.
A choker hitch can restrain a cylindrical or bundled item, but it concentrates force and can reduce the allowed capacity. It must never bear against an unprotected sharp edge. It also may not be appropriate for finished equipment: tightening webbing can dent a thin cover, distort insulation, or impose load where the manufacturer forbids it.
The centre of gravity determines how a machine behaves once it is suspended. If the hook is not above the combined centre of gravity, the load will rotate until it finds equilibrium. That rotation can pull webbing across an edge, slide a basket hitch, strike nearby equipment, or expose a person to a crush zone.
For skidded machinery, compare the known centre of gravity with the two basket contact locations. For a multi-point lift, account for unequal load sharing; the leg nearest the heavier side can carry more force. Never assume two legs share the weight equally unless the geometry and centre of gravity support that conclusion. A spreader beam may be needed to preserve vertical pick points and prevent inward forces on a delicate frame.
Use a controlled trial lift. Raise the load only far enough to determine whether it remains level and clear of obstructions. Keep people outside the potential swing and pinch zones. If it tilts or the sling begins to migrate, lower it immediately and change the rigging plan. Do not try to reposition a loaded sling by hand or place any part of the body between the sling and load.
The working load limit is the maximum permitted load for a defined sling and hitch configuration. It is not simply the load’s weight divided by the number of visible webbing sections. Read the permanently attached tag to identify the sling, material, rated capacities, and hitch information. If the tag is missing or illegible, take the sling out of service until its status is resolved under the applicable procedure.
Hitch angles are especially relevant around broad machinery. As two sling legs become more horizontal, tension in each leg rises. A long sling may be required to keep a safe angle, but length alone does not solve a poor lifting plan. The crane hook height, headroom, spreader arrangement, and load width all need to be considered together.
Also inspect the hook or shackle interface. Webbing must sit correctly in the hook bowl or compatible connection without bunching, pinching, or point loading. Do not constrict a sling between shackle ears or force too much webbing into an undersized hook. The soft-eye and endless-sling comparison can assist where the connection method indicates that a sling with defined eyes is a better selection.
Some machinery-handling situations are unsuitable for synthetic webbing unless the hazard is fully controlled. Hot workpieces, welding areas, molten material, sparks, and sustained high-temperature exposure can damage synthetic fibres. Chemical residues also need case-specific review; material compatibility depends on the chemical, concentration, temperature, and exposure duration.
Webbing is also a poor choice where sharpness and abrasion cannot be isolated. A thin steel edge, damaged pallet rail, unprotected casting lip, or rough concrete contact may require different rigging or purpose-designed protection. If a load has unknown weight, unknown centre of gravity, no safe bearing route, or no approved lifting points, it is not ready for routine handling with any sling.
Do not confuse reusable and single-use products. For a specified one-way transportation task, a correctly rated disposable product may be selected under its instructions. The disposable endless webbing sling information describes a separate category with defined intended use. A single-use sling must not be put into repeated service after delivery.
First, verify the load’s weight, centre of gravity, lifting points, dimensions, surface condition, and destination. Second, inspect the Endless Webbing Sling along its entire loop. Look for cuts, abrasion, melted or glazed areas, chemical damage, broken stitching, embedded particles, and readable identification. Third, choose the hitch and connection hardware using the actual rated capacity for that setup.
Then prepare every contact point. Remove loose debris, identify corners, install suitable edge protection, and ensure the webbing lies flat without twists, knots, or bunching. Set an exclusion zone and conduct a controlled test lift. Check balance, sling movement, edge-protection position, hook seating, and clearance. Stop if anything shifts, creaks, rubs, or appears uncertain.
NANJING D. L. T SLING Co., Ltd. can supply sling options for considered handling plans, but the person directing the lift must ensure the selected configuration fits the equipment and local safety requirements. Careful pre-lift planning is especially important for high-value finished metal parts, where preventing a small slip can protect both people and product quality.
An Endless Webbing Sling can be an excellent solution for machinery and finished metal parts when its wide, flexible bearing surface supports a stable load without exposing the webbing to sharp or abrasive conditions. The decision rests on verified weight, centre of gravity, approved lifting points, hitch-specific working load limit, and reliable surface and edge protection. A clean, correctly positioned D.L.T SLING is an asset; a sling used around unknown geometry or unprotected edges is a risk. Use the right arrangement, inspect it carefully, and lower the load to revise the plan whenever control is not certain.
It can if debris, sharp edges, rough webbing, or movement under load is present. Clean the contact surfaces, choose a broad bearing route, and use suitable clean protection where the finish requires it.
Only if the equipment manufacturer specifically approves that lifting method. Motors, shafts, guards, and piping may not be designed as lifting points and can be damaged or cause the load to shift.
No. A basket hitch can work well beneath a stable skid with a clear, strong bearing route. Confirm that the sling cannot slide, that edges are protected, and that the load remains stable at the planned sling angle.
Use lifting edge protection appropriate to the edge radius, load, sling construction, and expected movement. It must stay in place under tension and protect against both cutting and abrasion.
Possibly, but it may concentrate force and move against the finish. Evaluate whether it will grip safely without crushing, sliding, or marking the component; a basket or approved lifting points may be preferable.
Lower it promptly to a safe support. Do not adjust a loaded sling by hand. Reassess the centre of gravity, pick points, sling positions, and whether a spreader or alternative rigging plan is necessary.
