Views: 0 Author: Site Editor Publish Time: 2026-08-24 Origin: Site
The safety factor on an endless webbing sling expresses the relationship between a sling’s minimum breaking force and its permitted working load limit. It is a design margin, not extra capacity that can be used in a lift. For example, a stated 5:1 design factor means the new sling’s minimum breaking force is at least five times its rated working load limit under the conditions defined by the manufacturer and applicable standard. The rigger must still stay within the tag’s hitch-specific rated capacity, account for angle and load shape, and remove damaged equipment from service. Understanding this distinction prevents one of the most dangerous rigging errors: treating the safety factor as a spare allowance.
Safety factor compares minimum breaking force with the permitted working load limit; it does not authorize overload.
The working load limit applies to a particular sling, hitch, and stated condition of use.
Vertical, basket, and choker configurations can have different rated capacities for the same Endless Webbing Sling.
Sling angle, sharp edges, chemical exposure, heat, knots, and damage can make a seemingly adequate sling unsuitable.
A legible identification tag and pre-use inspection are essential; a ratio printed in a catalogue cannot validate an unknown sling.
Rigging discussions can become unclear when several capacity-related terms are used as though they mean the same thing. They do not.
Working load limit (WLL), also called rated capacity. This is the maximum load permitted in service for the marked configuration. It is the number the lift plan must respect. The tag identifies the sling and normally shows relevant rated capacities.
Minimum breaking force (MBF). This is the minimum force at which a new, correctly manufactured sling is required to withstand or exceed in the specified test context. It is a design and verification reference, not a normal operating target. A breaking test is destructive; it does not show the permissible day-to-day load for a used sling.
Safety factor or design factor. This is the ratio of minimum breaking force to WLL. A 5:1 relationship means a new sling designed for a WLL of one unit has a minimum breaking force of at least five units, subject to the applicable construction and test requirements. It does not mean a load of four units is acceptable, nor does it cancel reductions caused by a choker hitch or leg angle.
The distinction matters because a lifting sling experiences real-world conditions that a simple ratio cannot describe: edge contact, abrasion, hook fit, sling angle, dynamic movement, environmental exposure, and accumulated service damage. The safety factor provides design margin; disciplined selection and use preserve that margin.
Assume an Endless Webbing Sling has a vertical WLL stated by its manufacturer. If the product documentation uses a 5:1 design factor, the corresponding minimum breaking force is at least five times that vertical WLL in the defined new-sling condition. The lift planner does not divide the breaking force among people, legs, or possible configurations. The only service capacity used is the marked WLL for the exact hitch.
Term | Purpose in sling selection | What the user must do |
|---|---|---|
Minimum breaking force | Design/testing reference for a new sling | Do not use it as the lifting limit. |
Safety factor / design factor | Ratio between breaking force and WLL | Treat it as built-in margin, not spare capacity. |
Working load limit | Maximum permitted service load in a stated hitch | Compare it with the actual planned load and geometry. |
Proof load, where specified | Non-destructive verification load | Do not confuse it with a daily operating rating. |
Suppose a load is within the vertical WLL but the planned rigging changes to a choker. The vertical number may no longer apply. The choke changes how the webbing bears and can require a lower allowable load. Similarly, a basket or multi-leg arrangement needs the manufacturer’s rated information and a check of leg angles and load balance. The correct conclusion is not “the safety factor covers it”; the correct conclusion is “the marked capacity must cover this exact arrangement.”
The continuous loop of an endless sling is versatile because it can form different hitches. This flexibility must be paired with hitch-specific discipline.
In a vertical hitch, the sling supports the load directly from one bearing path. It may be practical for an approved lifting point, a compatible hook connection, or a load that can safely be supported in a straight arrangement. Use the vertical WLL marked for the sling. Confirm that the hook or connector seats properly and that webbing is not bunched, pinched, twisted, or loaded over a sharp edge.
A basket hitch can support the load from two bearing parts of the loop, often creating a stable cradle for a skid, bundle, or broad object. It can be a valuable configuration where wide contact helps protect the load surface. The apparent two-part support does not remove the need to use the specific basket rating. The load must be balanced, the sling legs must remain positioned, and the angle must be suitable. A load that can roll, slide, or settle out of the basket is not controlled simply because two webbing sections are visible.
In a choker hitch, the sling passes around the load and tightens as it is loaded. This can help restrain pipe, bundles, or certain cylindrical items, but it changes the loading condition. The tagged choker WLL and any choke-angle instruction must be followed. The sling should not be choked over a corner or a feature that can cut, crush, or abrade the webbing. A choker also must not be used as an improvised solution for an unknown centre of gravity.
The endless versus soft-eye sling guide explains why the continuous loop is adaptable, but the task should determine the construction. A sling with fixed eyes or a different rigging system may be better when the connection method needs defined attachment points.
Sling-leg angle is a capacity issue, not a cosmetic detail. In a two-leg arrangement, the more horizontal the legs become, the greater the tension in each leg. That extra tension can reduce the permitted load for the arrangement. Long, wide, or awkward loads often need a deliberate plan for hook height, sling length, and pick-point spacing.
Load sharing can also be uneven. Two legs do not always take half the load. A machine can be heavier on one side; pick points can be at unequal distances from the centre of gravity; a rigid frame can prevent equalization; and one leg may become taut before the other. For multi-leg work, determine how the load will actually be supported instead of using a simple division rule.
The guidance on choosing a webbing sling rightly begins with weight, shape, surface, and environment. Add centre of gravity and angle to that list. A sling whose straight-lift WLL appears sufficient may be unsuitable after the hitch and geometry are applied.
A synthetic sling’s design factor assumes the sling is in a qualifying condition. Service damage changes that assumption. Cuts, holes, tears, snags, melted areas, chemical burns, broken stitching, excessive abrasive wear, embedded particles, knots, and an illegible tag are not minor cosmetic concerns. Each can compromise the sling body or eliminate the user’s ability to determine its rating.
Inspect the entire loop before use. Because an endless sling can be rotated in service, damage may be located in a section that was not under the hook during the previous lift. Lay the sling out where practical and check both surfaces, edges, stitching, protective coatings or sleeves, and the identification tag. Look for contamination as well as obvious fibre damage. A sling that appears questionable should be removed from service and handled under the site’s inspection procedure.
Rotation is useful only for an undamaged sling. It can distribute ordinary wear across different sections over time, but it cannot “move past” a cut or restore worn fibres. Similarly, a temporary repair, a knot to shorten length, or an improvised sleeve over serious damage does not return a sling to its designed safety factor.
Temperature and chemicals are selection issues before the lift starts. Synthetic webbing should be kept away from hot workpieces, welding spatter, sparks, molten material, and temperature exposure outside the manufacturer’s instructions. Heat may alter fibres in ways that are not reliably measured by appearance alone.
Chemical compatibility must be specific. Polyester and nylon do not react in the same way to every acid, alkali, solvent, or process fluid. Concentration, temperature, and duration of contact matter. Do not select a sling on a vague claim of “chemical resistance.” Identify the substance and consult the sling manufacturer or a competent technical authority when exposure is possible.

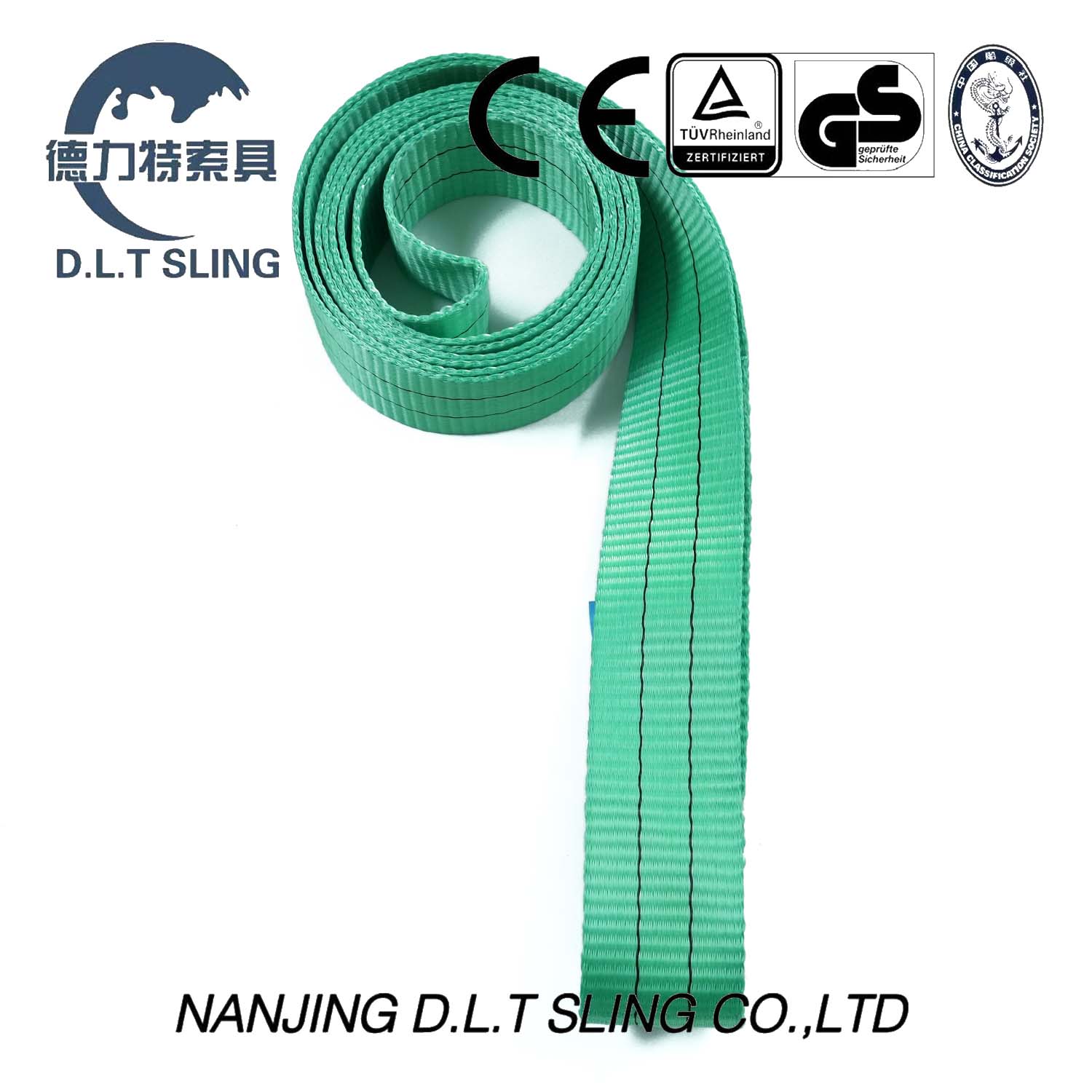

For applications where a polyester product is suitable, the 2 t green synthetic endless webbing sling product page is an example of a site resource to review alongside the exact product label and project requirements. Product descriptions can support initial selection, but the current tag and formal instructions control the lift.
The label is the bridge between a theoretical safety factor and a real item in the yard or workshop. It allows the user to identify the manufacturer, product or stock reference, material, and rated capacities. It may also identify configuration, length, serial or batch information, and applicable instructions. If the label is missing or unreadable, the sling cannot be assumed to carry the capacity of a similar-looking item.
Standards and regional requirements can specify different design factors, markings, and testing approaches. A sling should therefore be selected and used to the applicable jurisdiction, standard, and manufacturer guidance—not to a universally assumed ratio. Where a purchase order requires a particular standard or certification, verify it before purchase and retain the associated documentation as required by the site’s quality system.

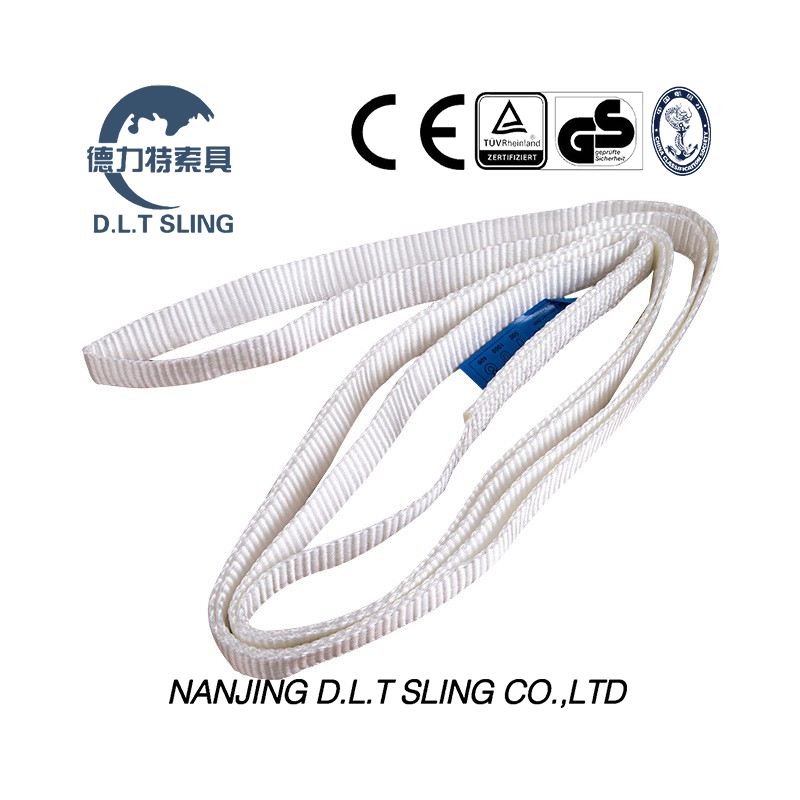

For temporary logistics applications, distinguish purpose-built one-way slings from reusable lifting equipment. The disposable endless webbing sling product details describe a single-use category with its own instructions and application scope. Its listed safety factor does not authorize repeated use after its intended delivery task.
Identify the actual load weight and centre of gravity. Select a sling with a readable tag and a WLL that is adequate for the planned vertical, basket, choker, or multi-leg arrangement. Confirm sling length, angle, hook compatibility, and the need for edge protection. Inspect the whole Endless Webbing Sling, not just the visible top section.
Next, position the webbing flat and free of twists, knots, bunching, or abrasion paths. Protect all corners and protrusions. Keep the load balanced and control its path with the proper lifting plan and exclusion area. Make a careful trial lift when appropriate. If the sling migrates, the load tilts, protection moves, or the hardware does not seat correctly, lower the load and revise the arrangement.
NANJING D. L. T SLING Co., Ltd. can support specification and product selection, while the lift director remains responsible for the onsite configuration. The safety factor helps make a properly selected sling robust; safe work depends on not consuming that protection through misuse. D.L.T SLING specifications should always be read together with the individual product tag.
The safety factor of an Endless Webbing Sling is a ratio built into the sling’s design, connecting minimum breaking force with permitted working load limit. It is not a reserve you can borrow to lift more weight, use an unlisted hitch, accept a shallow angle, or keep a damaged sling in service. Read the tag, use the capacity for the actual configuration, protect the webbing, inspect every part of the loop, and account for the load’s balance. Those actions turn a D.L.T SLING design factor into a real safety margin during work.
No. The working load limit is the maximum permitted service load for a stated configuration. The safety factor is the design relationship between that limit and the sling’s minimum breaking force.
No. The WLL is the permitted lifting limit. The 5:1 relationship is a design margin for a new sling under specified conditions, not an emergency overload allowance.
The design factor concerns the sling design, while permitted capacities can differ by hitch. Always use the manufacturer’s rating for the intended vertical, basket, or choker configuration.
As sling legs become more horizontal, the tension in each leg rises. This can reduce the allowable load for the arrangement, so the angle must be considered in the lift plan.
No. Without readable identification and rated capacity information, the sling should be removed from service until evaluated under the applicable inspection procedure.
No. Rotation can distribute ordinary wear on an undamaged sling. It cannot repair cuts, heat damage, chemical exposure, broken stitching, or excessive abrasion.
