| Quantity: | |
|---|---|

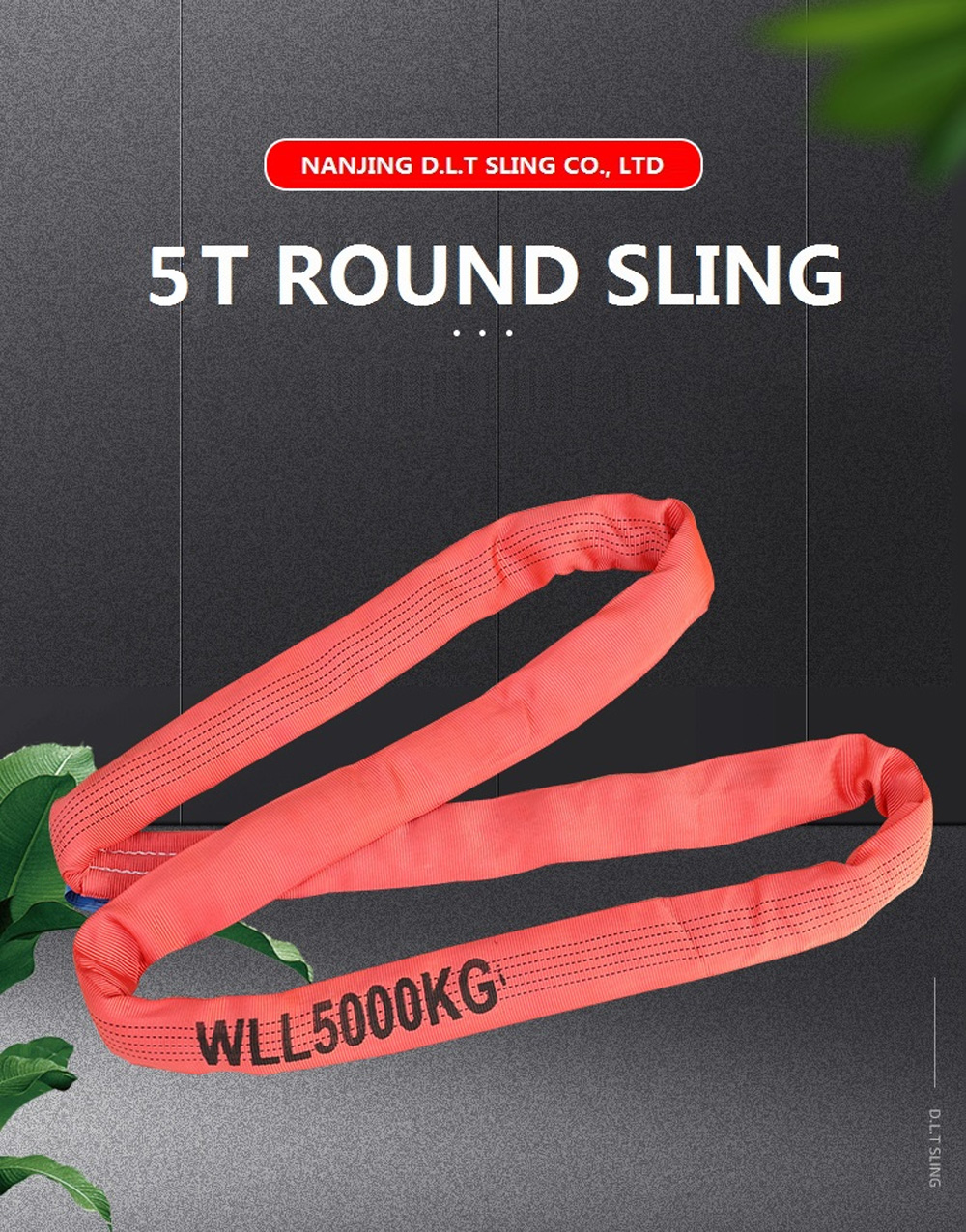

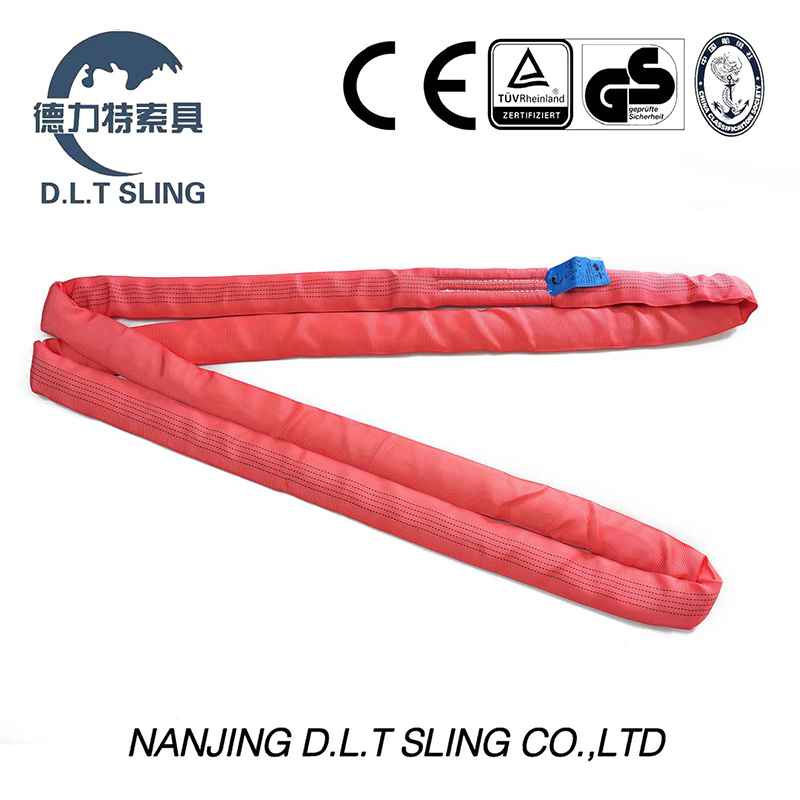

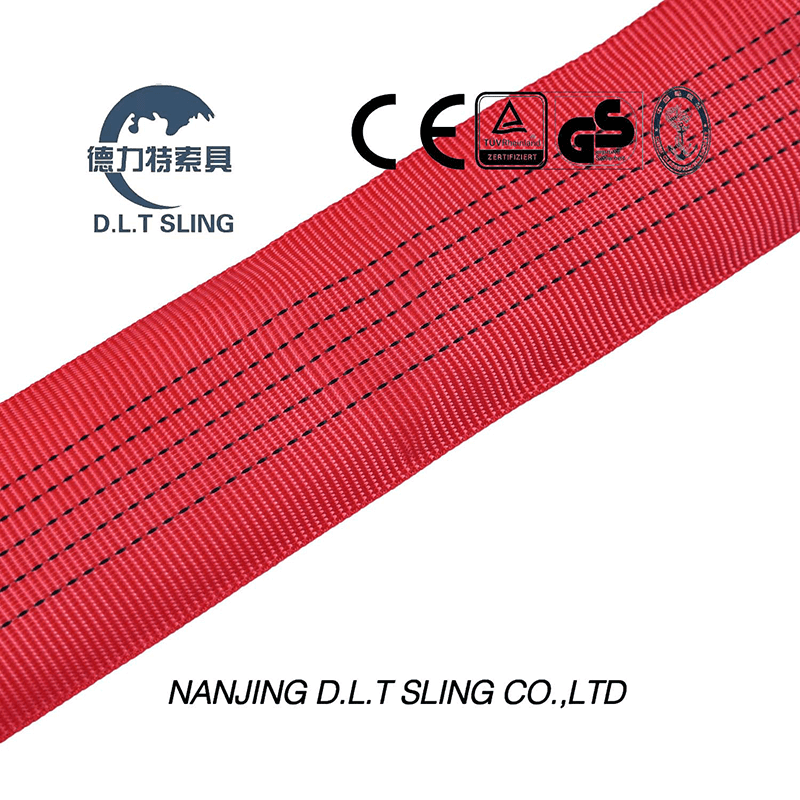

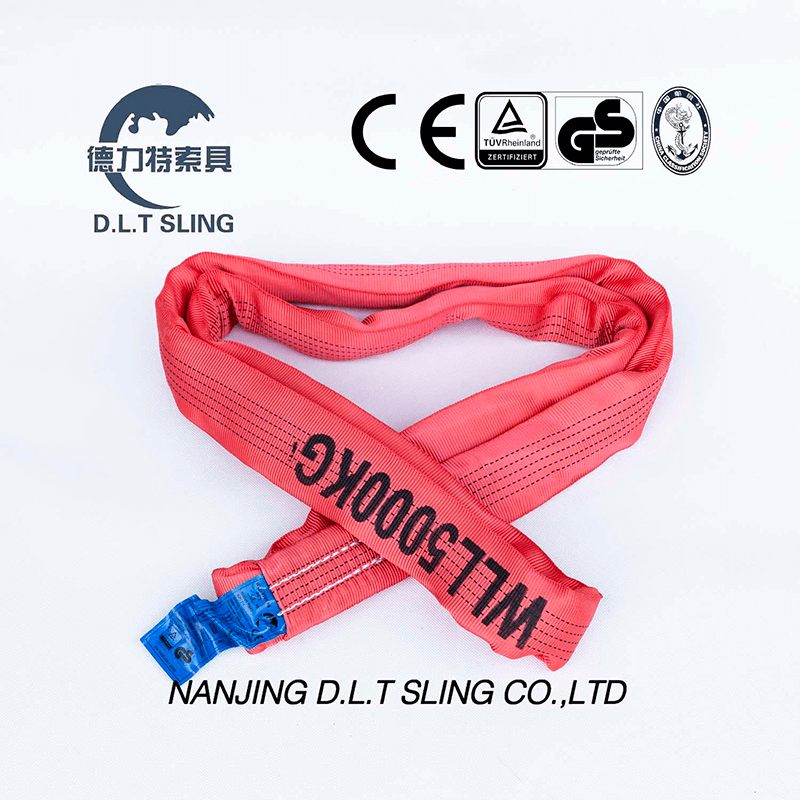

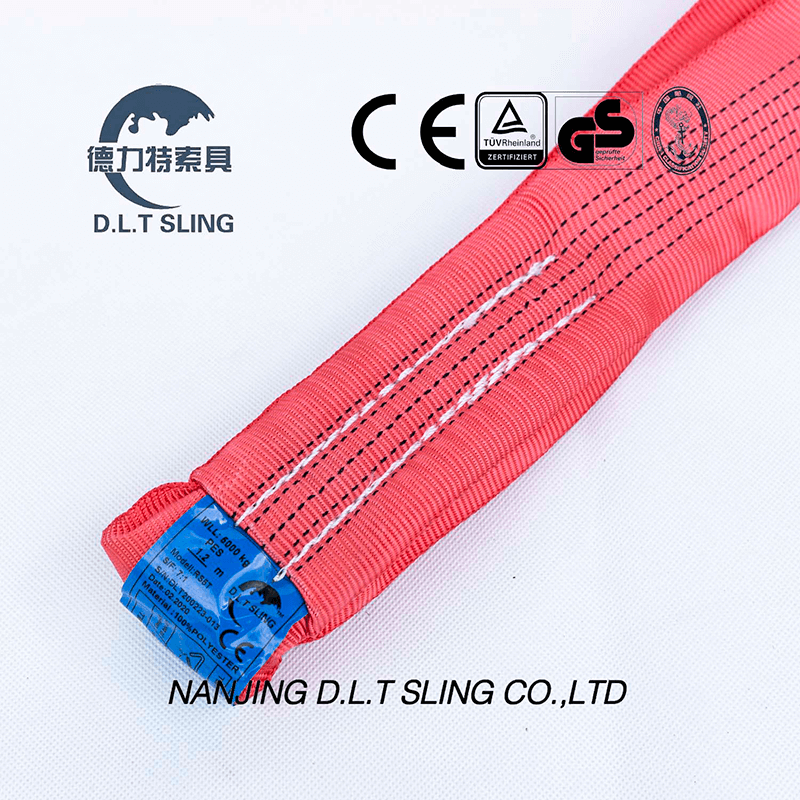

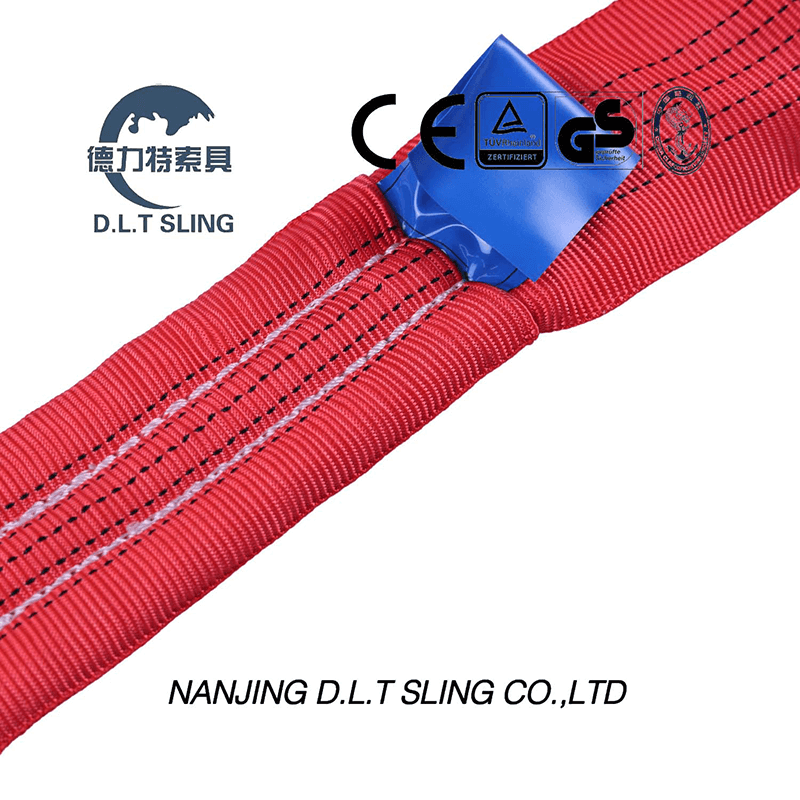

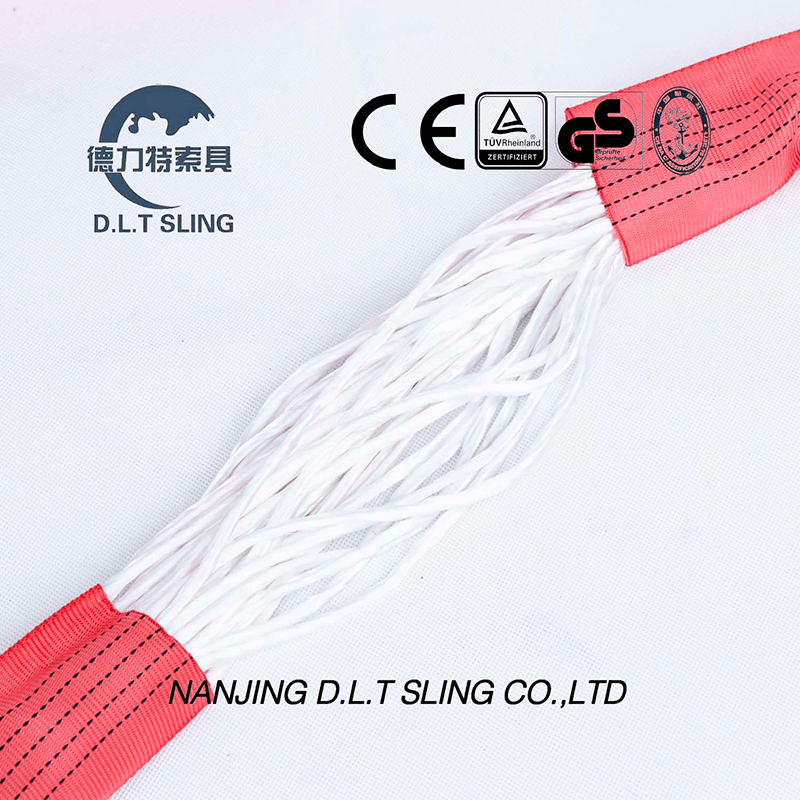

Polyester Round Lifting Sling are the most basic and versatile type of round sling.They are made of load-bearing core and protective jacket,which provides a layer of protection over the core polyester loops,and the its abrasion will not reduce capacity.

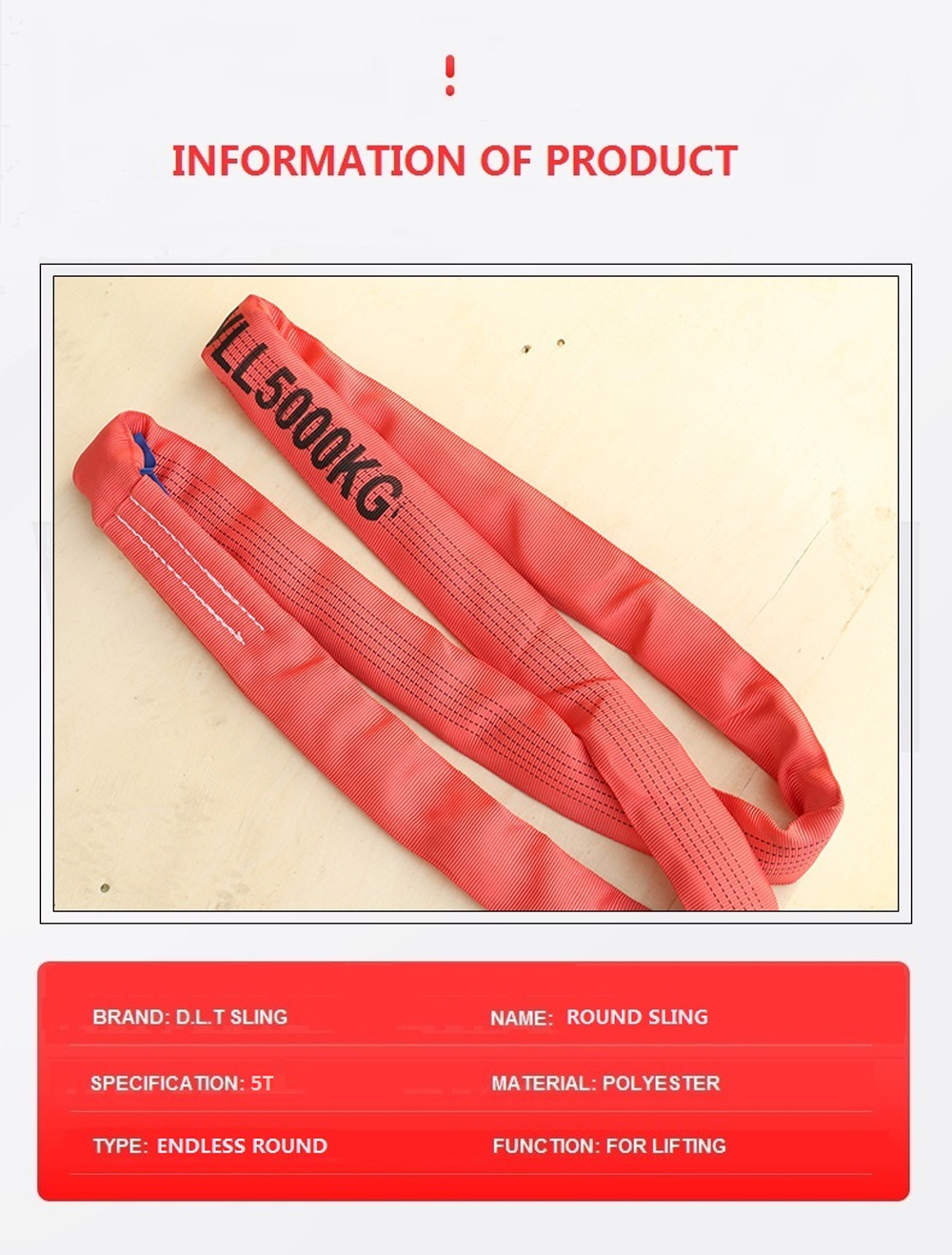

Type | 5T round sling |
Material | High tenacity 100% Polyester |
Brand Name | D. L.T SLING |
Safety Factor | 5:1,6:1,7:1,8:1 all available |
W.L.L | From 1000kgs to 100000kgs or up |
Length | from 500mm to 10000mm up, can be customized as require |
Color | According to customer requirement |
Certificate | CE, ISO9001, TUV-GS, etc. |
Place Of Origin | Jiangsu, China |
Packing | carton, pallet |
Standard | EN1492-2 |
|
| SWL,WLL(t),M,CC | Double Multi-set SWL(t) | |||||||
|
| Vertical | Choker | Vertical | Choker | Vertical | ||||
0-7° | 7-45° | 45-60° | <45° | <45° | 45-60° | 45-60° | ||||
1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 | ||
RS7010 | 1t | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 2,800 | 1,120 | 1,000 | 800 |
RS7020 | 2t | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 5,600 | 2,240 | 2,000 | 1,600 |
RS7030 | 3t | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 8,400 | 3,360 | 3,000 | 2,400 |
RS7040 | 4t | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 11,200 | 4,480 | 4,000 | 3,200 |
RS7050 | 5t | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 14,000 | 5,600 | 5,000 | 4,000 |
RS7060 | 6t | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 16,800 | 6,720 | 6,000 | 4,800 |
RS7080 | 8t | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 22,400 | 8,960 | 8,000 | 6,400 |
RS7100 | 10t | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 28,000 | 11,200 | 10,000 | 8,000 |
RS7120 | 12t | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 33,600 | 13,440 | 12,000 | 9,600 |
RS7150 | 15t | 15,000 | 12,000 | 30,000 | 21,000 | 15,000 | 21,000 | 16,800 | 15,000 | 12,000 |
RS7200 | 20t | 20,000 | 16,000 | 40,000 | 28,000 | 20,000 | 28,000 | 22,400 | 20,000 | 16,000 |
RS7300 | 30t | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 42,000 | 33,600 | 30,000 | 24,000 |
Cautions:
1. Apply the correct mode factor for the slinging arrangement.
2. Position the bight for choke lift at 120° (natural angle).
3. Use the correct mode factor and check lifting angle.
4. Do not expose belt slings to direct heat or flames.
5. Do not attempt to shorten, knot or tie belt slings.
FAQ
Q1: How can you guarantee the quality of the products we order?
A1: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q2: Can you add our own logo on the products?
A2: Yes. We offer the service of adding customers' logo on the product.
We will have an agreement with each other and not supply products with your logo to others.
Q3: How do I pay?
A3: We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
Q4. I want more styles, how can I get latest catalogue for your reference?
A4: You can contact us by Email, we will give you our latest catalogue according to your information.
Q5: How about the packing?
A5: We usually use cartons or pallets for packing.If you have your own design, we can help you to find the printer and send you the sample until you are satisfied.
