In heavy-lift rigging, the structural integrity of lifting equipment is the single barrier between a successful operation and catastrophic failure. Procurement and safety managers often treat synthetic slings as commodity items. However, misunderstanding how these tools are constructed—specifically the relationship between the load-bearing core and the outer jacket—leads to improper application, accelerated wear, and severe OSHA compliance risks. Understanding the exact manufacturing process and material science behind a synthetic round sling provides the technical framework necessary to evaluate supplier quality, match equipment to specific environmental hazards, and ensure safe load control. Knowing the mechanics of these lifting tools allows operators to maximize safety and longevity on the job site, preventing accidents before they happen.
Load-Bearing Architecture: The lifting capacity of a round sling (ranging from 2,600 to over 180,000 pounds) is determined entirely by the volume of continuous core yarns, not the outer cover.
Material Trade-Offs: Selecting between polyester, nylon, and high-performance fibers requires balancing stretch requirements, chemical resistance, and weight.
Protective Vulnerabilities: While the outer jacket protects against UV and abrasion, it does not bear the load; failure to mitigate sharp edges remains the primary cause of synthetic sling failure.
Rigging Advantages: Compared to wire rope or chain, synthetic round slings offer extreme flexibility, lightweight handling, and superior load-molding capabilities.
Compliance & Certification: Legitimate manufacturing processes culminate in strict ASME B30.9 and OSHA-compliant tagging and proof-testing protocols.
To evaluate a sling's suitability for a specific lift, buyers must first understand its dual-component architecture. Success requires both components to function without degradation. The core provides the strength, while the jacket provides the necessary protection. If either component fails, the entire lifting assembly is compromised.

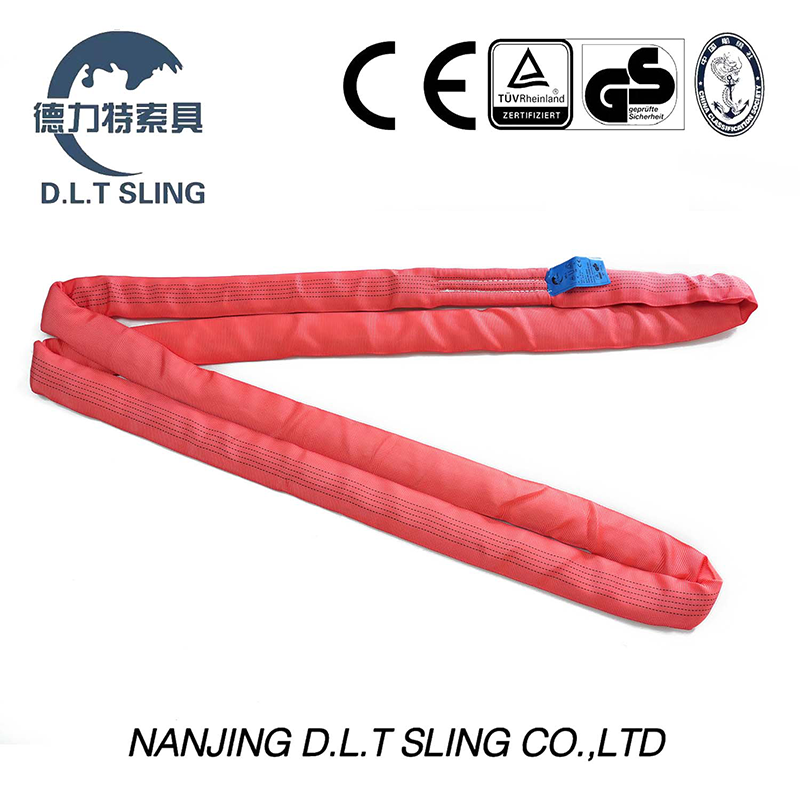

The internal structure consists of a continuous, endless loop of synthetic yarn. The number of wraps or strands inside this loop directly dictates the working load limit (WLL) of the sling. More wraps equal a higher capacity. Manufacturers calculate the exact number of revolutions required to meet specific weight ratings, ensuring the core can handle the dynamic forces of industrial lifting.
The mechanics of a Polyester Yarn Round Sling rely on independent core yarns moving freely within the jacket. This movement allows the sling to mold to the load, providing superior grip and control during a lift. When you wrap the sling around a cylindrical object, the internal fibers shift and flatten, distributing the weight evenly across the contact area. This design offers extreme flexibility and light weight compared to heavy, rigid chain or wire rope alternatives.
A critical manufacturing quality safeguard is the integration of "Tell-Tale" indicator cores. These specific yarns extend past the jacket to visually signal internal overload or core damage. If the internal fibers stretch beyond their elastic limit or snap, the tell-tale tails pull back inside the jacket, giving riggers an immediate warning of hidden failures.

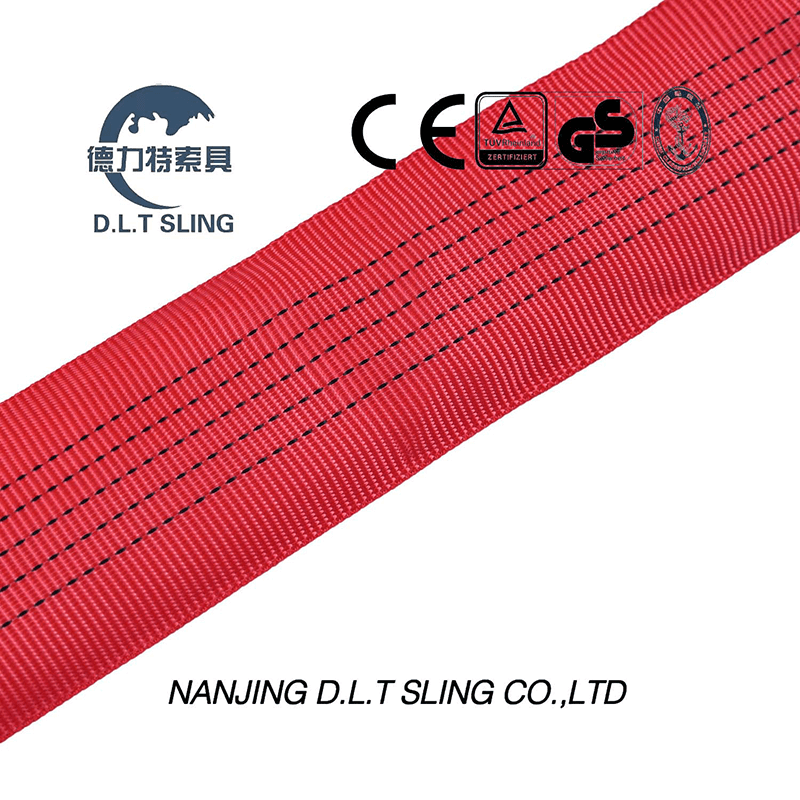

The outer cover is a woven tubular jacket designed solely to contain the core yarns. It protects them from UV degradation, dirt, and minor abrasion. A common misconception on job sites is that the jacket adds to the lifting capacity. The protective sleeve bears zero lifting weight. Its only job is to keep the core intact and shield it from environmental hazards.
Jacket variations exist to suit different environments. Manufacturers offer single-wall and double-wall covers, as well as heavy-duty woven jackets designed specifically for high-friction environments where standard covers would wear out rapidly. Double-wall jackets provide a secondary layer of defense; if the outer layer breaches, the inner layer still protects the core, allowing the operator to safely finish the lift and retire the sling.
Component | Primary Function | Load Bearing Capacity | Inspection Focus |
|---|---|---|---|
Core Yarns | Provide structural lifting strength | 100% of rated capacity | Tell-tale tails, internal bunching, hard spots |
Outer Jacket | Protect core from UV, dirt, and abrasion | 0% of rated capacity | Cuts, tears, snags, holes, UV fading |
Identification Tag | Display WLL, material, and traceability | N/A | Legibility, attachment security |
Different manufacturing stages impact the final reliability of the rigging hardware. Precision at each step ensures the sling performs safely under maximum load conditions. A failure in the manufacturing process translates directly to a failure on the crane hook.
Spooling the raw synthetic yarn onto the manufacturing carousel.
Threading the yarn through the pre-measured protective jacket.
Winding the continuous loop to achieve the target working load limit.
Tensioning the fibers to ensure equal load distribution.
Splicing the yarn ends to close the loop seamlessly.
Sealing and stitching the outer protective cover.
Attaching the compliance tags and conducting proof tests.
The initial loading phase involves staging industrial spools of high-tenacity yarn on a manufacturing carousel. Operators must ensure the yarn feeds smoothly without tangles or snags, which could introduce weak points into the core. During the threading process, the yarn is pulled and threaded continuously through the pre-measured synthetic round sling jacket.
Manufacturers achieve specific lengths and capacities by controlling the number of continuous revolutions the yarn makes. The physics of tensioning is critical here. Uneven tension during winding causes individual strands to bear disproportionate loads. When a load is applied, the tighter strands take all the weight and snap, transferring the load to the next tightest strands, resulting in premature sequential fiber failure. Equal load distribution across all core fibers is mandatory.
The splicing or joining technique closes the continuous loop without creating a weak point. Unlike wire rope, which requires heavy mechanical sleeves to form an eye, the synthetic core is joined using specialized knotting or overlapping techniques that maintain the structural integrity of the core uniformly throughout the sling.
Once the core is wound and tensioned, the process involves pulling the protective sleeve completely over the joined core. Industrial stitching closes the jacket, ensuring the core remains completely encased and protected from environmental exposure and physical damage. The stitching must be robust enough to withstand the daily abuse of construction sites without unraveling.
Mandatory integration of identification tags is required for compliance. These tags detail the WLL for vertical, choker, and basket hitches, along with the material type and manufacturer traceability. Reputable manufacturers batch-test or individually proof-test slings on hydraulic test beds to verify they meet ASME B30.9 and OSHA 1910.184 standards before they leave the facility. If a sling lacks a legible tag, it is legally unfit for use.
Matching the chemical and physical properties of the sling material to the operational environment is crucial for safety and longevity. Using the wrong material in a chemically active environment will cause rapid degradation and catastrophic failure.
Polyester features low stretch, approximately 3% at rated capacity. It provides excellent resistance to UV light and common acids, making it ideal for general construction and outdoor use. However, it is vulnerable to alkaline environments and degrades at temperatures exceeding 194°F (90°C). You will find polyester used in the vast majority of standard lifting applications.
Nylon offers higher stretch, up to 10% at rated capacity, which helps absorb shock loads during dynamic lifts. It is highly resistant to alkalis. Its limitations include moisture absorption, which reduces wet strength by up to 15%, and severe vulnerability to acids. Nylon is generally less common in modern round sling construction compared to polyester, but remains useful in specific chemical environments.
High-performance fibers provide an extreme strength-to-weight ratio with minimal stretch (less than 1%). They are used for engineered lifts exceeding 100,000 lbs where wire rope would be too heavy to handle manually. While they carry a high initial cost, they offer significant advantages in ergonomics, reduced rigging weight, and specialized heat or cut resistance. Aramid fibers, for example, can withstand temperatures up to 300°F, making them suitable for foundry work.
Material | Stretch at WLL | Acid Resistance | Alkali Resistance | Max Temperature |
|---|---|---|---|---|
Polyester | ~3% | Good | Poor | 194°F (90°C) |
Nylon | ~10% | Poor | Good | 194°F (90°C) |
HMPE | <1% | Excellent | Excellent | 140°F (60°C) |
Aramid | <1% | Good | Good | 300°F (149°C) |
Translating manufacturing knowledge into safe procurement and operational practices minimizes implementation risks. Buying lifting equipment based solely on the lowest bid often results in acquiring substandard gear that fails prematurely or lacks proper certification.
When evaluating suppliers, look for ISO certification, transparent testing data, and strict adherence to color-coding standards for weight capacities. Red flags include missing tags, inconsistent stitching on the protective sleeve, or a lack of traceability to the original manufacturer. A reputable supplier will always provide a certificate of conformance with every batch of slings.
The construction of a Round Sling dictates its performance under different hitches. A vertical hitch provides a direct capacity load path, utilizing 100% of the sling's rated strength. A choker hitch creates friction at the choke point, reducing the capacity by approximately 20%; the sliding action of a Protective Sleeve Round Sling preserves core integrity while maintaining load control. A basket hitch doubles the capacity by distributing the load across both legs of the loop, provided the D/d ratio (diameter of the load vs. diameter of the sling) is adequate.
Synthetic round slings are highly susceptible to cutting, making sharp edges the primary implementation risk on any job site. The mandatory use of engineered edge protection, such as magnetic corner protectors or cut-resistant sleeves, is required regardless of the sling's jacket thickness. A sharp edge is defined as any edge where the radius is less than the thickness of the sling. Failure to use edge protection is the leading cause of synthetic sling failure worldwide.
Purchasing cheaper, single-jacket slings often leads to higher replacement frequencies. Investing in double-jacketed or high-performance fiber slings can lower operational disruptions over time by reducing inspection failure rates and rigging-related downtime. Always match the durability of the jacket to the abrasiveness of the loads you handle daily.
The safety and efficacy of a synthetic round sling depend entirely on the precision of its manufacturing, specifically the continuous looping of the core yarn and the integrity of its protective sleeve. When selecting a supplier, prioritize manufacturers who provide verifiable proof-testing, clear ASME/OSHA compliant tagging, and comprehensive material data sheets. Proper material selection and rigorous inspection protocols are non-negotiable for safe lifting operations.
Audit current rigging inventories immediately to remove any slings with illegible tags, exposed core yarns, or severe jacket wear.
Consult with a certified rigging engineer to match sling materials to specific environmental hazards, such as chemical exposure or extreme heat.
Implement strict edge-protection protocols for all lifts involving synthetic slings, ensuring crews have access to engineered corner protectors.
Establish a routine inspection schedule based on usage frequency and environmental exposure, documenting all findings in a central log.
A: A web sling is made from flat woven webbing, while a synthetic round sling consists of a continuous loop of load-bearing core yarns encased in a protective tubular jacket. Round slings generally offer better load molding and flexibility.
A: The lifting capacity is determined by the number of continuous core yarns inside the jacket. This capacity is strictly indicated on the manufacturer's attached identification tag and is often represented by an industry-standard color code.
A: No. If the outer jacket is torn or damaged, exposing the load-bearing core yarns, the sling must be immediately removed from service and destroyed. Synthetic round slings cannot be repaired under any circumstances.
A: Color-coding provides a quick visual reference for the sling's working load limit (WLL). For example, purple typically indicates a lower capacity, while colors like blue or orange indicate much higher capacities, helping riggers select the right tool quickly.
A: Standard polyester and nylon synthetic round slings should not be used in environments where temperatures exceed 194°F (90°C) or drop below -40°F (-40°C). Specialized materials like Aramid are required for extreme temperatures.
A: The protective sleeve acts as a barrier against UV rays, dirt, and minor abrasion. By encasing the core yarns, it prevents direct contact with abrasive surfaces, though it does not protect against sharp edges under heavy loads.
A: Tell-tale indicator tails are specific core yarns that extend slightly past the jacket. If the sling is overloaded or the internal core is damaged, these tails will pull inside the jacket, providing a visual warning that the sling must be retired.
