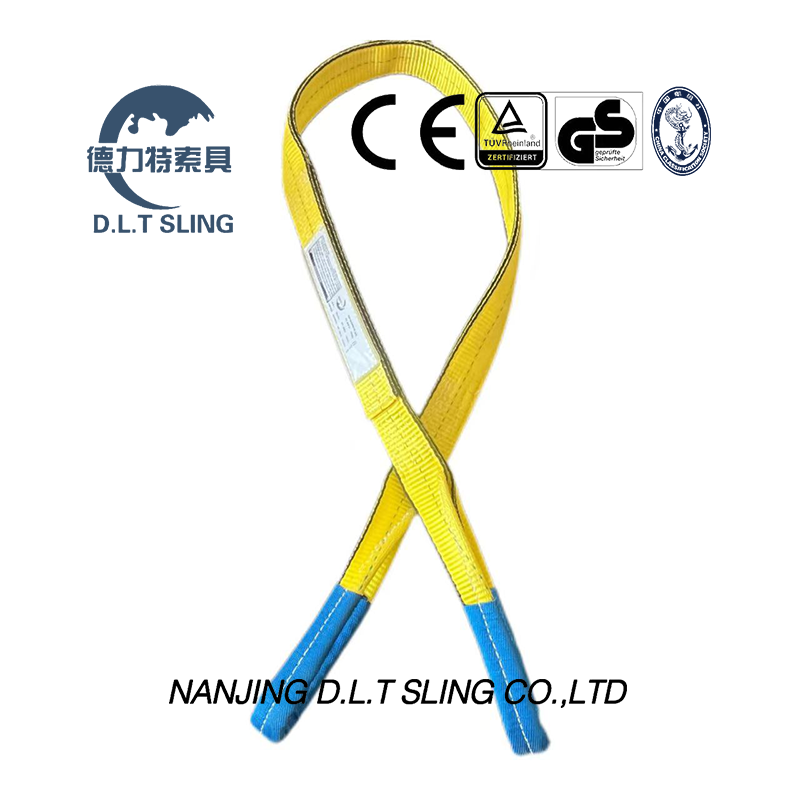

Miscalculating rigging capacities is a primary cause of catastrophic load drops, equipment damage, and fatal workplace incidents. A sling’s rated capacity is never a static number. Rigging planners and safety managers must account for variables that drastically alter effective capacity, including hitch types, sling angles, center of gravity, and material degradation. Relying solely on the manufacturer's base tag without calculating the exact lift dynamics creates severe operational and liability risks.
To ensure safe, compliant, and efficient lifts, operators must master the formulas for calculating Working Load Limit (WLL) reductions and understand how to specify the correct lifting sling for complex load geometries. Proper planning prevents rigging failures, keeps operations moving smoothly, and protects your crew on the job site.
Sling Angles Dictate Tension: As the angle between the sling leg and the horizontal plane decreases, the tension on each leg increases exponentially. Angles below 30 degrees are generally prohibited due to extreme stress.
Hitch Multipliers Alter WLL: The base capacity of a sling changes based on application; basket hitches can double capacity (at 90 degrees), while choker hitches typically reduce it by a minimum of 20%.
Compliance is Non-Negotiable: Specifying a certified ASME lifting sling ensures the hardware meets the required 5:1 design factor (or 4:1 for chain), providing a verifiable baseline for all calculations.
Dynamic Forces Invalidate Static Math: Shock loading, wind resistance, and off-center loads require additional capacity buffers beyond standard static weight calculations.
Working Load Limit (WLL) and Minimum Breaking Strength (MBS) represent two vastly different metrics in the rigging industry. WLL is the maximum allowed operational load under normal, static conditions. MBS is the exact point of catastrophic failure during destructive testing at the manufacturing facility. You must base all field rigging calculations strictly on the WLL. Confusing these two numbers will result in immediate equipment failure and severe safety hazards on the job site.
The design factor, often called the safety factor, provides a built-in buffer for the equipment. Industry standards dictate a 5:1 ratio for synthetic and wire rope slings. Alloy chain slings require a 4:1 ratio. This means a synthetic sling with a WLL of 2,000 lbs actually broke at 10,000 lbs during testing. Operators must never use the design factor to justify overloading a sling. This buffer exists solely to absorb unforeseen dynamic forces, minor material degradation, and slight calculation errors, not to increase your lifting capacity.
Baseline tag verification is your starting point for any lift. Every piece of rigging hardware must feature a legible, manufacturer-affixed identification tag. This tag details the base WLL for vertical, choker, and basket configurations. If the tag is missing, torn, or unreadable, remove the equipment from service immediately. You cannot calculate capacity without a verified baseline. Field personnel should inspect these tags before every shift, ensuring the stated capacities align with the planned lift weights.
Understanding the load itself is just as critical as understanding the rigging gear. You need accurate weights, not estimates. Check shipping manifests, engineered drawings, or use an inline load cell to verify the exact weight of the object. Once you have the true weight and the verified WLL from the tag, you can begin applying the necessary mathematical reductions based on your specific rigging configuration.
The way you attach the rigging to the load fundamentally changes its capacity. You must apply the correct hitch multiplier to the base WLL to determine the actual capacity for that specific lift. Failing to adjust for the hitch type is a common error that leads to overloaded gear.
A vertical hitch provides a direct load calculation. The sling supports the exact weight of the load, hanging straight down from the crane hook to the attachment point. This configuration uses a 1.0x multiplier, meaning the capacity equals the tagged vertical WLL. However, vertical hitches offer poor load rotation control. They struggle to manage loads with an offset center of gravity. If the load shifts or spins, a single vertical hitch provides zero stabilization, making it unsuitable for loose materials or long, unbalanced loads.
A choker hitch reduces capacity by a minimum of 20%. The stress point where the material bites back on itself creates friction and structural strain. You multiply the vertical WLL by 0.8 to find the choker capacity. This hitch is excellent for gripping cylindrical loads like pipe or lumber, but the capacity reduction must be factored into the lift plan.
The angle of choke dictates further reductions. If the angle of choke falls below 120 degrees, capacity drops significantly. ASME B30.9 reduction factors apply here. An angle of 120 degrees or greater retains 80% of the WLL. Angles between 90 and 119 degrees drop to 74%. Angles between 60 and 89 degrees fall to 60%. Always measure the choke angle before lifting. If you are choking down hard on a small bundle, you are likely operating at a severely reduced capacity.
A basket hitch distributes the load across two legs of a single piece of rigging. This configuration can double the vertical capacity. However, this 2.0x multiplier only applies if the legs are perfectly vertical at 90 degrees to the load. As the angle between the legs widens, the basket capacity mathematically drops off. You must calculate the resulting angle to determine the true capacity. Basket hitches are ideal for cradling loads, but they require the load to be balanced perfectly to prevent it from sliding out of the open basket.
Hitch Type | Standard Multiplier | Primary Application | Key Limitation |
|---|---|---|---|
Vertical | 1.0x | Direct overhead lifting with engineered lift points. | No rotational control; poor for unbalanced loads. |
Choker (120°+) | 0.8x | Gripping loose bundles, pipes, or lumber. | Reduces base capacity by at least 20%. |
Basket (90°) | 2.0x | Cradling large, balanced loads. | Load can slide out if not perfectly balanced. |
Rigging angles drastically alter the tension on your hardware. A 10,000 lb load lifted by a two-leg setup does not simply put 5,000 lbs of tension on each leg if rigged at an angle. As the angle to the horizontal decreases, tension increases exponentially. This is the most misunderstood concept in field rigging and the leading cause of snapped gear.
You calculate the tension on each leg using the Load Angle Factor (LAF). The formula is: Tension = (Load Weight / Number of Legs) x Load Angle Factor. You calculate the LAF using simple trigonometry. Divide the length of the rigging (L) by the height from the load to the hook (H). This gives you the multiplier needed to find the actual tension. For example, if your rigging is 10 feet long and the height from the load to the hook is 8 feet, your LAF is 1.25.
Using standard angle multipliers speeds up field calculations. Memorize these common LAF values to ensure quick and accurate rigging assessments. At 60 degrees, the LAF is 1.154. At 45 degrees, the LAF is 1.414. At 30 degrees, the LAF is 2.000. If you are lifting a 10,000 lb load with two legs at a 30-degree angle, each leg experiences 10,000 lbs of tension. You have effectively doubled the load on the gear simply by using a shallow angle.
Rigging standards strongly advise against angles less than 30 degrees to the horizontal. At 30 degrees, the tension equals the total weight of the load on each leg. Dropping below this angle creates extreme stress that easily exceeds the WLL, leading to catastrophic failure. If your lift plan requires an angle shallower than 30 degrees, you must redesign the lift. Use a spreader bar or longer rigging to increase the angle and reduce the tension.
Do not assume a 4-leg setup shares the load equally across all legs. Due to load rigidity and minor length variations, often only two legs carry the actual weight. The other two merely balance the load. Always calculate safe WLL using the "designing for two legs" safety principle. Treat 3-leg and 4-leg setups as if only two legs are bearing the tension. This ensures you have adequate capacity even if the load shifts and the weight transfers unevenly.
Let's walk through a practical field calculation to determine the required capacity for a specific lift.
Determine the total weight of the load. For this example, the load weighs 12,000 lbs.
Divide the total weight by the number of load-bearing legs. We are using a 2-leg setup, so the base weight per leg is 6,000 lbs.
Determine the rigging angle to the horizontal. We measure the angle at 45 degrees.
Find the Load Angle Factor (LAF) for 45 degrees, which is 1.414.
Multiply the base weight per leg by the LAF. 6,000 lbs x 1.414 = 8,484 lbs of tension per leg.
Select rigging hardware with a vertical WLL of at least 8,484 lbs per leg to safely execute the lift.
Different materials behave differently under load. You must adjust your calculations based on the specific properties of your rigging gear. What works for steel chain will not necessarily work for synthetic fibers.

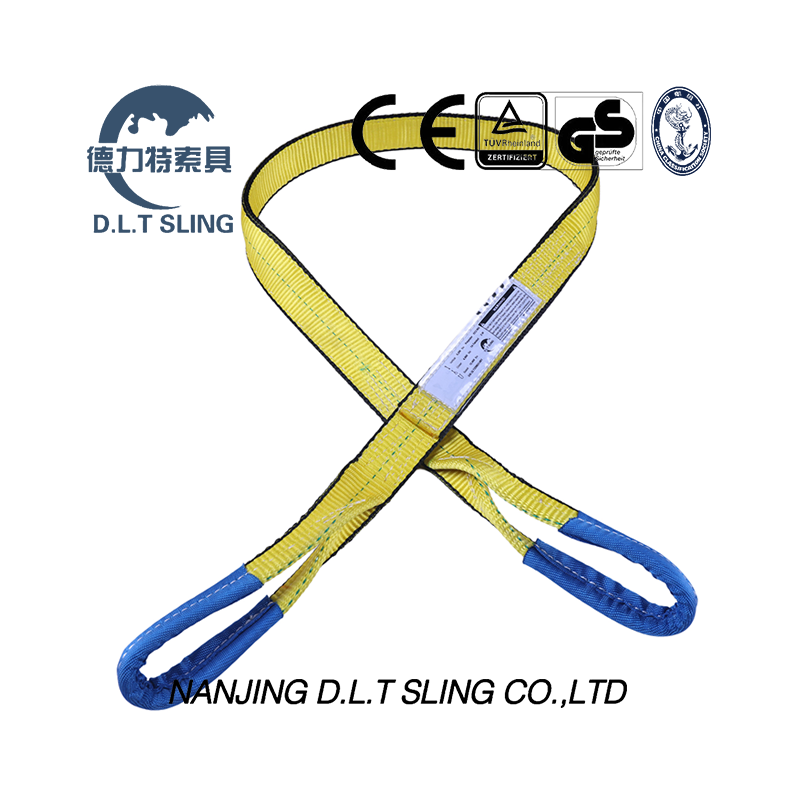

Synthetic materials like nylon and polyester stretch under load. Nylon can stretch up to 10% at its WLL. This stretch alters the rigging angle during the lift. As the material stretches, the angle flattens, and the tension increases. You must monitor the lift and recalculate if the angle changes significantly. When using a Heavy-Duty Webbing Sling, account for this stretch in your initial headroom calculations to ensure the load clears any obstacles.
Environmental degradation also reduces the effective WLL before the gear even attaches to a load. UV exposure, chemical contact, and dirt penetration weaken synthetic fibers over time. Temperature thresholds are strict. Do not exceed 194°F (90°C) for standard nylon or polyester. High heat melts the fibers and destroys the capacity instantly. If you are working near welding operations or hot machinery, you must use heat-resistant materials or switch to wire rope.
Wire rope capacity depends heavily on the D/d ratio. This is the ratio of the load diameter (D) to the rope diameter (d). Bending a wire rope around a small shackle or sharp load edge causes bending fatigue. A tight bend drastically reduces the WLL. Always use proper sizing to maintain a safe D/d ratio. If you must choke a wire rope around a small pipe, you must apply a reduction factor to your capacity calculations.
Chain asymmetry complicates calculations. When using adjustable chain setups for off-center loads, leg lengths and angles differ. You must calculate the tension for each leg individually based on its specific angle and distance from the center of gravity. Chain is incredibly durable and handles high heat well, but it is heavy and unforgiving. It does not stretch like synthetics, meaning shock loads are transferred directly to the crane hook and the load attachment points.
Regulatory frameworks govern manufacturing, testing, and capacity ratings. ASME B30.9 and OSHA 1910.184 outline strict requirements for safe rigging operations. Ignoring these standards exposes your site to severe fines and catastrophic accidents.
Specifying a certified ASME Lifting Sling guarantees compliance. These products undergo rigorous proof testing at the manufacturing facility. Manufacturers test them to 200% of their WLL before deployment. This verifies the structural integrity of the material and its splices. When you purchase compliant gear, you receive a certificate of testing that serves as your legal documentation of the equipment's baseline capacity.
Calculations must extend to all system hardware. Shackles, master links, and hoist rings must align with the calculated tension. Ensure no sub-component is the weakest link. If your rigging is rated for 10,000 lbs but you connect it to the load with a 5,000 lb shackle, your maximum capacity is only 5,000 lbs. Maintain strict procurement records and inspection logs. Utilize load charts provided specifically by the manufacturer to verify your math in the field.
Daily visual inspections are mandatory under OSHA regulations. Before every shift, riggers must check for cuts, abrasions, heat damage, and deformed hardware. If any defect is found, the equipment must be removed from service and destroyed to prevent accidental use. You cannot calculate a safe capacity for damaged gear. The WLL on the tag only applies to equipment in pristine condition.
Even perfect math fails if you ignore field realities. Address these common risks to maintain safe lifting operations and protect your personnel.
Center of Gravity (CoG) miscalculations cause severe accidents. Assuming a symmetrical load distribution is dangerous. If the CoG is offset, the leg closest to the CoG bears a disproportionate amount of the tension. Use CoG formulas to calculate unequal load distribution based on the distance from the balance point. Always perform a test lift, raising the load just a few inches off the ground to verify the balance before committing to the full hoist.
Dynamic loading instantly exceeds the calculated WLL. Rapid acceleration, sudden stops, or crane jerks multiply the static weight of the load. Factor in a dynamic load allowance when planning the lift. Utilize smooth hoisting techniques to minimize shock loads. Instruct crane operators to ease into the lift, taking up the slack slowly before applying full power.
Edge protection failures bypass capacity calculations entirely. Sharp edges cut synthetic fibers and kink wire rope. This causes immediate structural failure regardless of the WLL. Mandate the use of engineered edge protection rated for the specific material on every lift. Cardboard or rags are not acceptable edge protection. Use magnetic corner protectors or heavy-duty sleeves designed specifically to prevent the load from slicing through your rigging.
Calculating capacity requires determining the load weight, identifying the center of gravity, applying the hitch multiplier, and factoring in the exact rigging angle. Skipping any of these steps compromises the safety of the entire operation.
Audit your current rigging hardware immediately to ensure all identification tags are legible and compliant with ASME standards.
Implement mandatory load-calculation worksheets for all lifts to standardize safety protocols across your site.
Select hardware based on the maximum calculated tension at the lowest anticipated rigging angle, rather than just the static weight of the load.
Train all riggers on ASME B30.9 standards to ensure they understand the physics of angles and hitch multipliers.
Mandate the use of engineered edge protection on all lifts involving sharp or abrasive load edges.
A: Divide the total load weight by two. Then, multiply that number by the Load Angle Factor (LAF) for the specific rigging angle. The LAF is calculated by dividing the sling length by the height from the load to the hook.
A: The industry-standard design factor for synthetic webbing is 5:1. This means the minimum breaking strength is five times higher than the stated Working Load Limit. Never use this factor to intentionally overload the equipment.
A: A standard choker hitch reduces the base vertical capacity by a minimum of 20%. If the angle of choke falls below 120 degrees, the capacity reduces even further according to ASME B30.9 standards.
A: As the angle between the leg and the horizontal plane flattens, the horizontal force pulling the legs apart increases. This added horizontal force combines with the vertical lifting force, exponentially increasing the total tension.
A: OSHA and ASME standards require immediate removal from service. You cannot legally or safely use rigging hardware without a legible manufacturer's tag detailing its Working Load Limits for various hitches.
A: You must calculate the capacity as if only two legs are bearing the entire load. Due to load rigidity and minor length variations, it is unsafe to assume all four legs will share the weight equally.
