How To Use Round Sling?

Industrial lifting operations demand absolute precision and rigorous safety protocols. Synthetic sling failure during a lift results in catastrophic load drops, severe structural damage, and massive liability. Knowing exactly how to use a Round Sling correctly forms the foundation of secure rigging on any job site. While synthetic slings offer superior flexibility and load protection compared to wire rope or alloy chain, improper hitch execution, neglected edge protection, and failure to account for sling angles routinely compromise safety and compliance.

This guide serves as a definitive framework for rigging professionals, crane operators, and site managers to evaluate sling types, execute proper hitch configurations, and standardize inspection protocols. By mastering these technical elements, lifting teams ensure strict compliance with heavy lifting regulations such as ASME B30.9 and OSHA standards. We will break down the exact mechanics of load distribution, hardware compatibility, and environmental factors that dictate sling performance in the field.

• Configuration Dictates Capacity: The working load limit (WLL) of a round sling changes drastically depending on whether a vertical, choker, or basket hitch is applied.

• Angle Multipliers are Critical: Operating at sling angles below 60 degrees exponentially increases tension, requiring precise load calculations and higher-capacity slings.

• Edge Protection is Non-Negotiable: Synthetic fibers are highly susceptible to cutting and friction; proper wear pads must be integrated into the lifting plan.

• Sling-to-Fitting Compatibility: Ensure hardware and hooks have a sufficient radius to prevent pinching, crowding, or crushing the round sling fibers.

• Strict Retirement Criteria: Visible damage to the protective jacket, exposed core yarns, or missing identification tags mandate immediate removal from service.

Evaluating Round Sling Types for Specific Lifting Profiles

The Endless Round Sling: Continuous Loop Advantages

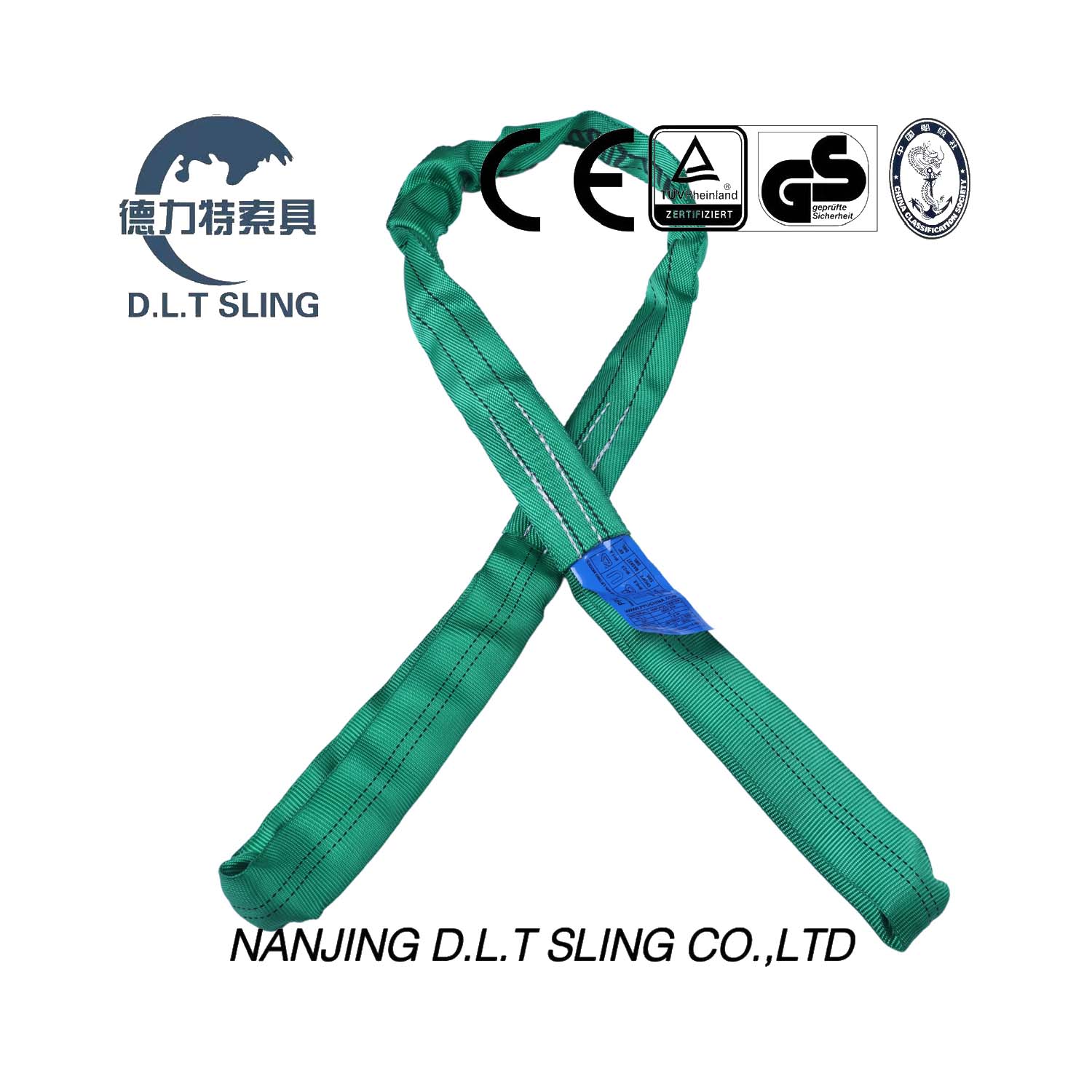

The structural design of an Endless Round Sling consists of a continuous loop of load-bearing core yarns encased inside a durable tubular jacket. This design isolates the critical lifting fibers from direct contact with the load, protecting them from immediate abrasion and UV degradation. The primary operational advantage of this continuous loop is the ability to rotate the sling with each use. By shifting the contact points along the length of the sling, riggers distribute wear evenly across the entire jacket, significantly extending the equipment's operational lifespan.

These slings excel in heavy, abrasive load applications where maximizing lifespan and minimizing localized friction are top priorities. When lifting concrete forms, large steel pipes, or industrial machinery, the continuous loop allows the rigger to adjust the bearing points away from known wear zones. This rotational capability makes it a highly versatile tool for dynamic construction environments. If a specific section of the jacket begins to show minor scuffing, the rigger simply rotates the sling so that the scuffed area rests in a low-friction zone during the next lift. This simple field adjustment prevents premature retirement of the rigging gear.

The Eye-Eye Round Sling: Precision and Control

An Eye-Eye Round Sling features a standard round sling core encased in an additional protective sleeve to form distinct, reinforced lifting eyes at each end. This configuration provides a different set of mechanical advantages compared to the continuous loop. The formed eyes reduce shifting on the crane hook, offering controlled attachment points that resist sliding during complex maneuvers. The structured ends also allow for easier threading through tight load attachment points, narrow shackle openings, or engineered lifting lugs.

This type of sling is ideal for choker hitches and applications requiring strict control over the sling's position on the hardware. When precise load orientation is necessary, the fixed eyes prevent the sling from rotating unpredictably. Riggers frequently deploy these slings when working with asymmetrical loads or when specific connection points on a load require a fixed, non-slip attachment. For example, when choking a bundle of rebar, the eye-eye configuration allows the rigger to pass one eye through the other smoothly, creating a tight, secure bite on the load that will not slip down the length of the sling body.

Material Selection: Polyester vs. High-Performance Fibers

Standard polyester slings are highly cost-effective, feature low stretch characteristics (typically around 3% at rated capacity), and are suitable for the vast majority of general rigging tasks. Polyester resists many common acids and maintains its strength well in standard weather conditions. However, specialized lifting operations often demand high-performance fibers like HMPE (High-Modulus Polyethylene) or Aramid. These advanced materials offer an extreme strength-to-weight ratio, allowing riggers to lift massive loads with remarkably lightweight slings. Aramid fibers also provide superior heat resistance, making them necessary for foundry work or environments with high ambient temperatures.

Selecting the right material requires matching the fiber to the operational environment. You must account for chemical exposure, temperature extremes, and weight restrictions. Using a standard polyester sling in an environment with high alkaline exposure or extreme heat will lead to rapid degradation and potential failure. Always verify the material specifications against the exact conditions of the lift.

Pre-Lift Inspection Protocols and Compliance

Verifying the Identification Tag

The identification tag is the most critical compliance component of any lifting sling. The absolute rule in rigging is simple: if the tag is missing or illegible, the sling must be removed from service immediately. Riggers cannot guess the capacity or material of a sling based on its color or size alone, as environmental fading or non-standard manufacturing can lead to fatal miscalculations. OSHA and ASME B30.9 strictly enforce this requirement.

A compliant tag must display specific information clearly. Without this data, the sling is legally and operationally void. When inspecting the tag, follow this verification sequence:

1. Locate the manufacturer's name or trademark to ensure the sling comes from a certified source.

2. Identify the core material (e.g., polyester, HMPE) to confirm environmental compatibility.

3. Read the Working Load Limit (WLL) for the three primary hitch configurations: vertical, choker, and basket.

4. Check for traceability codes or serial numbers required for your site's annual inspection logs.

Identifying Critical Wear and Damage

Visual and tactile inspections of the protective jacket must occur before every single lift. Riggers should run their bare hands (or thin gloves) along the entire length of the sling, feeling for hard spots, lumps, or inconsistencies that indicate internal core damage. The jacket itself must be scrutinized for any signs of compromise. Dirt and grease can hide severe defects, so slings must be reasonably clean before inspection.

Strict rejection criteria apply to all synthetic slings. You must remove the sling from service if you find holes, tears, cuts, embedded debris, or weld splatter. Acid or caustic burns, as well as melting or charring from heat exposure, permanently destroy the synthetic fibers. The most critical failure indicator is exposed core yarns. The outer jacket bears no load; its sole purpose is protection. Any visibility of the load-bearing core yarns indicates compromised structural integrity, meaning the sling could fail well below its rated capacity.

Environmental Degradation and Post-Lift Storage Standards

Synthetic fibers degrade over time when exposed to harsh environmental factors. Prolonged UV exposure breaks down the molecular structure of polyester and other synthetics, causing them to become brittle and lose tensile strength. This UV degradation is often visible as severe fading of the jacket color. Moisture absorption, particularly if the sling is stored wet in a sealed gang box, can lead to mildew and rot in certain materials, while chemical contact can dissolve or weaken the fibers invisibly.

Establishing strict storage best practices is vital for maintaining equipment integrity. Slings must be stored in cool, dry, dark environments away from direct sunlight and extreme heat sources. Keep them off the ground on racks or pegs to prevent moisture wicking and keep them clear of areas where corrosive vapors, battery acid, or welding sparks might be present. Proper post-lift storage prevents accelerated degradation and ensures the sling is ready for its next deployment. Never leave slings lying in the mud or draped over steel beams overnight.

Executing Core Hitch Configurations Safely

Vertical Hitch: Direct Load Transfer

A vertical hitch is the most straightforward rigging configuration. It involves connecting one end of the sling directly to the load and the other end directly to the crane hook. In this setup, the load distribution is entirely linear, meaning 100% of the sling's rated Working Load Limit (WLL) is utilized. The vertical capacity listed on the sling's tag applies directly to this lift without any reduction factors.

Despite its simplicity, the vertical hitch carries specific implementation risks. The primary danger is a lack of load control. Because there is only one point of attachment, the load can easily spin or sway during the lift. If the center of gravity is not perfectly aligned directly beneath the hook, the load will tilt violently as it leaves the ground. Vertical hitches should only be used when the load has a known, stable center of gravity and rotation can be managed with taglines. Never use a single vertical hitch for lifting loose materials or long, unbalanced loads like steel beams.

Choker Hitch: Securing Cylindrical Loads

A choker hitch provides superior grip on a load, making it ideal for lifting cylindrical objects like pipes, logs, or bundled rebar. The setup involves passing one end of the sling around the load, threading it through the opposite end (or eye), and then attaching that free end to the crane hook. As tension is applied, the sling tightens around the load, securing it firmly and preventing the materials from sliding out of the rigging.

This configuration inherently reduces the sling's capacity. A standard choker hitch typically reduces the WLL by 20% compared to a vertical hitch. This reduction occurs because the sling is crushed against itself at the choke point, creating severe localized stress on the fibers. To maintain safety, riggers must ensure the angle of choke is greater than 120 degrees. Never force the choke down toward the load with a hammer or pry bar, as this damages the fibers. Both endless and eye-eye variants must be positioned carefully to avoid shifting during the initial tensioning phase.

Basket Hitch: U-Shape Distribution and Slippage Prevention

The basket hitch cradles the load in a U-shape, with both ends of the sling attached to the crane hook. When executed correctly as a true vertical basket hitch—where both legs of the sling are perfectly parallel—this configuration doubles the WLL of a single vertical hitch. The load is distributed evenly across two legs, effectively cutting the tension on each leg in half. This makes the basket hitch highly efficient for heavy, balanced loads.

However, critical angle constraints dictate the safety of a basket hitch. Riggers must keep the horizontal sling angle above 60 degrees. Angles lower than 60 degrees cause the sling legs to slide together toward the center of the load. This induces severe load instability, hazardous lateral slippage, and can cause the load to drop entirely. Basket hitches should only be used on loads with inherent stops or balanced dimensions that prevent the sling from sliding inward. Never use a basket hitch on a load that is difficult to balance or has a slick surface without secondary securing methods.

Multi-Sling and Bridle Configurations: Balancing Complex Loads

When lifting large beams, panels, or complex structural components, a single sling is rarely sufficient. Rigging multiple components requires combining multiple slings into a bridle configuration. A common setup involves dual-sling or four-leg arrangements meeting above the load's center of gravity, attached to a master link or directly to the crane hook.

Balancing these complex loads requires precise adjustment of individual sling lengths and positioning. The goal is to ensure the load remains perfectly level upon lifting and that tension is distributed evenly across all legs. If one sling is shorter or positioned closer to the center of gravity, it will bear a disproportionate amount of the weight, potentially overloading that single leg while the others remain slack. To execute a safe multi-leg lift, follow these steps:

1. Determine the exact center of gravity of the load.

2. Select slings of identical length and capacity for symmetrical loads.

3. Attach the slings to engineered lifting points equidistant from the center of gravity.

4. Apply slight tension to the crane hook to verify the load remains level before fully clearing the ground.

5. Adjust rigging hardware (like turnbuckles) if the load tilts during the test lift.

Load Calculations and the Impact of Sling Angles

Understanding Sling Tension Multipliers

The physics of angled lifting dictate that as the angle between the sling leg and the horizontal plane decreases, the tension on the sling increases dramatically. When a sling is completely vertical (90 degrees to the horizontal), it supports exactly its share of the load's weight. But as you spread the slings outward to attach to different points on the load, the angle drops, and the tension spikes due to the added horizontal force required to hold the load together.

Riggers use standard angle factors to calculate this increased tension. Failing to account for these multipliers leads to catastrophic overloading. If you have a 10,000-pound load supported by two slings at a 45-degree angle, each sling is not holding 5,000 pounds; each is holding 5,000 multiplied by 1.414, which equals 7,070 pounds of tension.

Calculating the Mode Factor

Applying mode factors is essential for safe lift planning. The mode factor accounts for the slinging arrangement, including the number of legs, the hitch type, and the angle. To calculate the required sling capacity, you must divide the total weight of the load by the number of load-bearing legs, then multiply that number by the appropriate angle factor and hitch factor.

This step-by-step calculation framework ensures the selected sling exceeds the actual tension generated by the lift. Always base calculations on the worst-case scenario. If a load is asymmetrical, assume the heaviest side dictates the required capacity for all slings used. Rigorous mathematical verification prior to lifting is the only way to guarantee the equipment will not fail under dynamic stress. Never guess the weight of a load; consult shipping manifests, engineering drawings, or use an inline dynamometer to confirm the exact weight before selecting your rigging gear.

Rigging Hardware Compatibility and the D/d Ratio

The relationship between the diameter of the load (or hardware) and the diameter of the sling is known as the D/d ratio. This ratio is critical for synthetic slings. Tight bending radii on shackles, trunnions, pins, and crane hooks severely reduce the sling's capacity and risk damaging the internal core fibers. When a sling is forced around a narrow pin, the fibers on the outside of the curve stretch excessively, while the fibers on the inside bunch up and take the entire load.

Hardware must meet specific fitting requirements. You must use shackles and hooks of sufficient width to allow the sling to bunch naturally and form smooth, uncrowded curves. If the sling is pinched, crowded, or overlapping itself within the hardware fitting, its capacity is compromised. Always consult the manufacturer's guidelines for the minimum allowable hardware diameter for your specific sling capacity. A common field error is forcing a high-capacity, thick round sling into a small shackle bow, which instantly creates a pinch point that can sever the core yarns under tension.

Edge Protection and Friction Mitigation

The Reality of Synthetic Fiber Vulnerability

A dangerous misconception in the rigging industry is that thick synthetic jackets are cut-proof. They are not. Under thousands of pounds of tension, even a seemingly dull edge can slice through a synthetic jacket and sever the core yarns instantly. In rigging, a "sharp edge" is defined as any edge that is not rounded to a specific radius relative to the sling's thickness. Even the standard 90-degree corner of an I-beam, the rough edge of a concrete block, or the machined edge of a steel plate acts like a razor blade when the sling is fully tensioned.

We see this failure mode frequently on construction sites where riggers assume the sling's jacket will withstand the pressure of a steel beam. The moment the crane takes the weight, the synthetic fibers stretch slightly, dragging across the unyielding steel edge. This micro-movement under massive pressure slices the fibers cleanly, resulting in an immediate and catastrophic dropped load.

Selecting and Deploying the Right Protection Hardware

To mitigate this vulnerability, riggers must deploy appropriate edge protection. Sliding sleeves made of reinforced webbing or Kevlar offer basic protection against abrasion and minor friction. For true 90-degree corners, heavy-duty wear pads or magnetic corner protectors are required. Magnetic protectors are particularly useful on steel beams, as they snap into place and stay secure while the sling is positioned.

The decision framework for selecting protection requires matching the hardware to the load material. Concrete requires thick, cut-resistant pads that can handle high abrasion, while machined steel might require softer sleeves that protect both the sling and the finish of the load. Ensure the protection remains secure during movement. If the pad slides out of place as the sling stretches under load, the protection is useless. Riggers must visually confirm that the wear pad is perfectly centered over the edge before signaling the crane operator to hoist.

Procurement and Fleet Management Strategies

Standardizing Rigging Inventory

Managing a large fleet of rigging equipment requires strategic standardization to maintain safety and efficiency. One of the most effective operational benefits comes from strictly adhering to industry-standard color-coding. Synthetic slings are color-coded based on their weight capacities. Ensuring all equipment on site follows this universal standard prevents riggers from grabbing the wrong capacity sling in a fast-paced environment.

Furthermore, standardizing sling lengths is critical for multi-leg lifts. If a facility stocks slings in random lengths, riggers will struggle to create balanced bridle hitches, leading to mismatched legs and uneven load distribution. By standardizing inventory to specific, uniform lengths and capacities, site managers eliminate guesswork, streamline the inspection process, and drastically reduce the likelihood of rigging errors.

Conclusion

Safe lifting operations require far more than simply attaching a sling to a hook. Riggers must combine rigorous pre-lift inspections, precise hitch execution, and accurate tension calculations based on sling angles to ensure every lift is executed without incident. Understanding the specific advantages of different sling configurations and materials allows teams to adapt to complex loads while maintaining strict safety margins.

When selecting equipment, procurement and safety teams should choose between endless and eye-eye configurations based on the frequency of use, the abrasiveness of the loads, and specific hitch requirements. Endless loops offer superior longevity through rotation, while eye-eye variants provide essential control for choker hitches.

To immediately improve your rigging safety, take the following next steps:

• Audit your current rigging inventory and immediately destroy any slings with missing tags or visible core yarn damage.

• Implement mandatory edge protection protocols for all lifts involving steel beams, concrete, or machined edges.

• Consult with a certified rigging engineer to update your facility's load calculation charts and angle multiplier reference cards.

• Standardize your sling inventory by length and color-code to eliminate mismatched legs during complex bridle lifts.

FAQ

Q: How do you calculate the safe working load of a round sling?

A: Calculate the safe working load by identifying the sling's base Working Load Limit (WLL) on its tag, then applying the correct mode factor based on the hitch type (vertical, choker, or basket) and the sling angle. Always use tension multipliers for angles below 90 degrees to ensure the actual load tension does not exceed the sling's rated capacity.

Q: What is the difference between an endless round sling and a web sling?

A: An endless sling consists of continuous load-bearing core yarns encased in a tubular jacket, allowing it to conform easily to load shapes and rotate to distribute wear. A web sling is a flat, woven strap of synthetic material. Round variants typically offer higher capacities and better resistance to crushing, while flat web slings provide a wider surface area for fragile loads.

Q: How does a choker hitch affect the capacity of an eye-eye round sling?

A: A choker hitch reduces the capacity of the sling, typically by 20% compared to its vertical rating. This reduction occurs because the hitch creates severe localized stress and crushing forces at the choke point. You must always reference the specific choker WLL listed on the sling's identification tag.

Q: At what angle does a basket hitch lose its double-capacity rating and risk load slippage?

A: A basket hitch loses its true double-capacity rating as soon as the sling legs depart from a perfectly vertical (90-degree) alignment. If the horizontal sling angle drops below 60 degrees, the tension increases significantly, and the sling legs risk sliding together, which can cause severe load instability and lateral slippage.

Q: When should a synthetic round sling be permanently removed from service?

A: Remove the sling from service immediately if the identification tag is missing or illegible, if there are holes, tears, or cuts in the jacket, if the load-bearing core yarns are exposed, or if there are signs of heat damage, melting, or chemical burns. Never attempt to repair a damaged synthetic sling.

Q: Can you use a round sling without edge protection on steel beams?

A: No. You must never use a synthetic sling on a steel beam without proper edge protection. Even a standard 90-degree beam corner acts as a sharp edge under tension and will instantly cut through the protective jacket and sever the core yarns, leading to catastrophic failure.
