Views: 0 Author: Site Editor Publish Time: 2026-08-15 Origin: Site
Improperly releasing tensioned cargo securing equipment presents a severe operational risk on any job site or loading dock. Forced releases frequently cause irreversible hardware damage, accelerate webbing degradation, and lead directly to operator injury. Logistics professionals and heavy-haulers consistently battle friction points like jammed mandrels, bound webbing, and the hidden replacement costs of prematurely degraded cargo control equipment. These failures almost always stem from user error or substandard hardware that cannot handle the massive kinetic energy stored during transit.
Mastering the release mechanism is only the baseline for securing loads safely. Mitigating future failures requires a deep understanding of mechanical troubleshooting, strict adherence to safety compliance, and evaluating purpose-built hardware upgrades for high-cycle applications. You must know exactly how to disengage tension smoothly to protect the cargo, the equipment, and your crew. A controlled release prevents the sudden, violent snap of webbing that causes load shifts and hardware fractures.
Mechanical Precision: Safe release requires fully disengaging the manual pawl from the gear teeth and opening the handle to a flat 180-degree position to free the mandrel.
Jam Mitigation: Over-spooling the webbing is the primary cause of release failure; maintaining a maximum of two to three webbing wraps on the mandrel prevents binding.
Hardware Selection: Upgrading to specialized configurations, such as a Rotary Ratchet Tie Down or a Long Neck Ratchet Strap, significantly reduces operational friction in tight-clearance or high-volume securing scenarios.
Compliance & Lifecycle: Routine inspection for hardware deformation and webbing abrasion dictates when a tie-down must be retired to maintain FMCSA and DOT compliance.
The primary success criteria for cargo control involve maintaining absolute tension during transit while allowing for a controlled, predictable release without binding. Achieving this requires the hardware to lock securely under immense strain and disengage smoothly when you initiate the release sequence. Understanding the mechanical anatomy of a standard Ratchet Tie Down is essential for diagnosing jams and operating the equipment safely in the field.

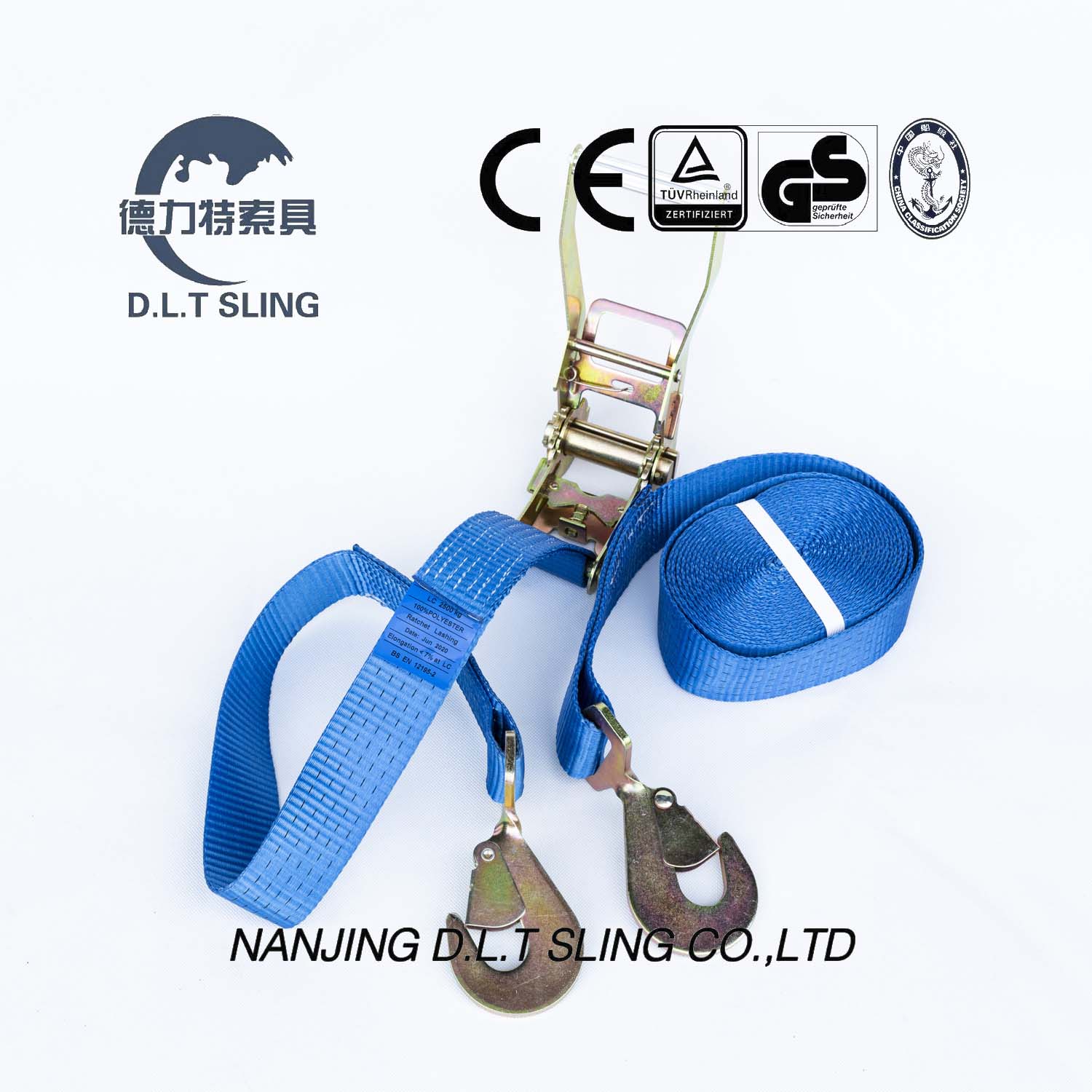

The critical parts involved in the release process include the handle, the manual release pawl, the gear teeth, and the rotating mandrel. The handle provides the leverage needed to tension the strap. The manual release pawl, often referred to as the trigger, is the spring-loaded mechanism that you squeeze to disengage the lock. The gear teeth hold the pawl in place, preventing the mandrel from spinning backward under load. The mandrel itself is the slotted spool where the webbing wraps and stores the tension.
Scale nuances play a major role in daily operation. Consumer-grade 1-inch setups operate with relatively light spring tension and require minimal manual pawl force. In contrast, heavy-duty 2-inch, 3-inch, or 4-inch commercial systems demand significantly more force to disengage. The spring tension and the physical size of the gear teeth scale up to handle massive loads. This means the release sequence requires deliberate, forceful action. You cannot simply flick a 4-inch commercial strap open; it requires proper body mechanics and a firm grip.
The physics of tension dictate exactly how the mechanism functions. The pawl locks into the gear teeth to hold the Working Load Limit (WLL). Releasing that stored kinetic energy requires specific mechanical sequencing. If the pawl is not fully disengaged before the handle is opened, the tension remains locked. Forcing the handle in this state will bend the frame or shear the gear teeth entirely. We frequently see operators use cheater bars to force a stuck handle, which instantly destroys the frame geometry and voids any safety rating.
To fully grasp the anatomy, you must inspect the wear points. The pivot pins holding the handle to the frame bear the brunt of the rotational force. If these pins bend even slightly, the handle will not open to the required 180 degrees. Furthermore, the springs behind the manual pawl lose tension over time, especially if left exposed to rain and road salt. A weak spring fails to push the pawl fully into the gear teeth, leading to a catastrophic slip during transit, or fails to retract properly during the release phase.
Executing a safe release begins before you even touch the handle. Pre-release verification involves confirming that the strap was originally threaded correctly. The webbing must pass from the bottom up through the mandrel slot. Correct threading ensures the release mechanism functions exactly as engineered, allowing the mandrel to spin freely once the pawl is disengaged. If you thread it backward, the webbing will pinch against the release plate.
Engaging the Manual Pawl: Squeeze the release lever against the main handle. This action pulls the locking mechanism out of the gear teeth. You must maintain this squeeze throughout the next step to prevent the pawl from catching on the gears as the handle moves. If the pawl feels gritty or stuck, do not force it. Apply a quick spray of penetrating lubricant to free the spring.
The 180-Degree Extension: While holding the manual pawl, push the handle completely open until it lays flat. It must reach a full 180 degrees, sitting in line with the fixed end of the strap. This flat position is critical. Anything less than 180 degrees keeps the mechanism partially engaged. You will feel a distinct physical stop when the handle is fully open.
Freeing the Mandrel: When the handle reaches the flat position, a cam mechanism physically locks the pawl out of the gears. The mandrel is now free to spin backward. You will often hear a loud click or feel the tension suddenly drop as the spool releases. Keep your fingers clear of the gear teeth during this step, as the mandrel can snap back violently if the load shifts.
Extracting the Webbing: Pull the loose end of the strap back through the mandrel slot. This removes the remaining tension safely. Pulling the webbing out completely clears the spool for the next use and prevents the strap from twisting inside the hardware. Never leave excess webbing wrapped on the spool during storage, as it traps moisture and accelerates rot.
Closing and Securing the Hardware: Pull the manual pawl again and fold the empty ratchet handle back into the closed, locked position. Leaving the handle open exposes the gear teeth and spring mechanisms to impact damage during storage. Closing it protects the hardware, keeps the springs in a relaxed state, and ensures the unit is ready for immediate deployment on the next load.
Even with strict adherence to the standard protocol, real-world scenarios often cause the release mechanism to fail. Identifying these implementation risks allows you to mitigate jams without compromising the hardware. Applying brute force to a stuck mechanism is the fastest way to destroy the equipment and risk severe injury. When a strap holds thousands of pounds of tension, a sudden, uncontrolled release can break bones or cause the cargo to spill off the trailer.
The over-spooled mandrel is the most frequent cause of binding. Feeding too much excess webbing into the ratchet fills the spool beyond its physical capacity. The webbing expands against the frame and the gear teeth, physically blocking the mandrel from spinning. The friction becomes so immense that the release pawl cannot disengage.
To extract an over-spooled strap, lock the ratchet in the open 180-degree position. Use a flathead screwdriver or heavy-duty pliers to carefully leverage the bound webbing out of the slot. Pull firmly on the loose end while working the trapped layers free. Never cut the webbing unless it is an absolute emergency, as this destroys the strap entirely.
The reverse-threaded mandrel lock occurs when the webbing is fed backward through the slot during setup. This causes the strap to wrap around itself in reverse, actively pulling against the release pawl and binding the mechanism under tension. To safely back out the tension, you must forcefully squeeze the release pawl and manually rotate the mandrel backward. This often requires a tool to pry the webbing loose while maintaining the pawl in the open position.
Corrosion and debris binding severely impact functionality. Rust, dirt, mud, and ice accumulate in the spring mechanisms and gear teeth, preventing the pawl from retracting. Routine maintenance is non-negotiable for flatbed haulers. Apply penetrating lubricants like PTFE or silicone-based sprays to the moving parts weekly. Regular cleaning with a stiff wire brush removes the hardened debris that causes the pawl to stick.
Bent frames and deformed gear teeth represent catastrophic hardware failure. Exceeding the Working Load Limit or dropping the heavy hardware onto concrete alters the frame geometry. Once the frame is bent, the pawl no longer aligns with the gear teeth, making release impossible. Deformed hardware cannot be repaired safely and necessitates immediate equipment retirement.
Symptom | Root Cause | Field Solution | Prevention Strategy |
|---|---|---|---|
Handle won't open to 180 degrees | Debris in gear teeth or bent frame | Clean teeth with wire brush; if bent, cut strap and discard | Store in dry box; do not drop hardware |
Mandrel won't spin when open | Over-spooled webbing binding against frame | Pry webbing with flathead screwdriver while handle is flat | Limit spool to 2-3 wraps maximum |
Release pawl is stuck/stiff | Corrosion or frozen moisture in springs | Apply PTFE spray and tap gently with a rubber mallet | Weekly lubrication and winterizing |
Webbing pinched under pawl | Reverse-threaded during initial setup | Force pawl open, manually reverse mandrel rotation | Always thread from bottom up through slot |
Standard ratchets serve general purposes, but specialized designs are engineered to solve specific operational bottlenecks. Comparing standard configurations against upgraded hardware reveals significant efficiency gains for high-volume securing tasks. If your crew spends more than ten minutes fighting jammed straps every morning, upgrading your hardware will yield immediate productivity returns.
The Rotary Ratchet Tie Down introduces a completely different mechanical approach. Unlike traditional linear ratcheting, the rotary mechanism utilizes a specialized gear system that allows for continuous tensioning without resetting the handle position. This design yields faster spooling, easier tension release, and drastically reduced ergonomic strain for operators securing multiple loads daily. The rotary action minimizes the physical force required to disengage the pawl under heavy loads, making it ideal for repetitive logistics operations.
The Long Neck Ratchet Strap addresses severe clearance issues. Securing loads in tight spaces, such as inside enclosed trailers or against bulky machinery, often prevents standard handles from achieving the full 180-degree range of motion required for a safe release. The extended neck moves the ratcheting mechanism away from the anchor point. This prevents the heavy hardware from scratching against the vehicle paint or fragile cargo and ensures the operator has the unobstructed space needed to open the handle completely flat.
Ergonomic handle variations also impact operational efficiency. Standard metal grips offer durability but cause operator fatigue and are notoriously difficult to use in cold weather. Wide-handle, rubberized, and molded grips provide better leverage and comfort. These variations allow operators to apply the necessary force to disengage heavy-duty pawls without straining their hands, particularly when wearing thick leather work gloves in freezing conditions.
When evaluating upgrades, consider the specific environment. If you haul agricultural equipment through mud, you need open-gear designs that are easy to wash out. If you haul finished automobiles, you need extended necks and rubberized handles to prevent scratching the freight. Matching the hardware to the application eliminates the vast majority of release failures.
Selecting replacement tie-downs requires a strict framework that prioritizes jam resistance and reliable releases over a long lifecycle. Evaluating equipment across specific dimensions ensures the hardware can withstand the rigors of high-cycle cargo control without failing in the field.
Material specifications dictate longevity. High-tenacity polyester webbing is mandatory for low stretch and high UV resistance. Nylon stretches too much under load, which causes the load to shift and binds the mandrel. Polyester maintains its shape, preventing the strap from degrading and jamming in the spool. The hardware must feature zinc-plated or dichromate finishes to resist the corrosion that seizes release pawls. Bare steel will rust within a week of winter driving.
Understanding the relationship between Working Load Limit and Break Strength is critical. The industry standard mandates a 1:3 safety ratio. Buying a strap with a higher WLL than strictly necessary prevents the hardware deformation that leads to jammed releases. Operating too close to the maximum limit stresses the frame, eventually misaligning the gear teeth and the pawl. If you regularly secure 3,000-pound loads, do not use a strap rated exactly for 3,000 pounds; upgrade to a 5,000-pound WLL to ensure the frame remains rigid.
Compliance standards provide the final verification of quality. Hardware must meet Web Sling & Tie Down Association (WSTDA), DOT, and FMCSA regulations. This compliance is verified through visible, legible tagging sewn directly onto the webbing. If the tags are missing, torn, or unreadable, the equipment is non-compliant and must be removed from service immediately. DOT inspectors will issue out-of-service violations for illegible tags, regardless of the strap's physical condition.
Safely releasing a ratchet strap is a function of proper mechanical operation and preventative loading. Executing the 180-degree open ensures the mandrel spins freely, while avoiding over-spooling and ensuring correct threading prevents the vast majority of jams.
Audit your current fleet equipment immediately and discard any straps with bent pawls, frayed webbing, or missing compliance tags.
Implement a weekly maintenance schedule to clean gear teeth with a wire brush and lubricate spring mechanisms with PTFE spray.
Transition to specialized hardware like rotary or extended-neck configurations if your daily operations involve tight clearances or high-volume securing.
Train all operators on the strict 180-degree release protocol to eliminate forced handle damage and prevent injuries.
A: The primary causes include over-spooled webbing binding the mandrel, a reversed threading path that pulls against the release mechanism, or a jammed release pawl due to rust, dirt, or frame deformation.
A: Apply penetrating oil to the moving parts. Squeeze the release pawl firmly and forcefully open the handle to a flat 180 degrees to break the tension. Use a flathead screwdriver to pry out over-spooled webbing if necessary.
A: It is used for high-efficiency securing. Its specialized gear mechanism allows for faster tensioning and smoother release, significantly reducing ergonomic strain for operators handling multiple loads.
A: Use it for tight anchor points. The extended neck keeps the bulky ratchet mechanism away from vehicle paint or fragile cargo, providing the necessary clearance to open the handle fully for release.
A: The industry standard is 2 to 3 full wraps. This provides enough friction to secure the load without over-spooling the mandrel and causing a jam during release.
A: Yes. Folding the empty ratchet handle back into its closed position protects the springs, gears, and frame from impact damage and debris accumulation during storage.
A: No. Bending load-bearing hardware back into place compromises its structural integrity. Deformed hardware must be replaced immediately to maintain the Working Load Limit and ensure safe operation.
