Incorrectly measuring lifting equipment is a primary driver of imbalanced loads, rigging failures, and critical safety incidents. In heavy lifting, precision is not optional. Procurement teams and rigging professionals frequently confuse a sling's circumference with its Effective Working Length (EWL). Ordering the wrong size leads to operational downtime, voided warranties, and severe OSHA compliance risks. When riggers assume a length based on circumference rather than the proper bearing-to-bearing measurement, the resulting sling is often twice as long as required. This creates dangerous shifts in the center of gravity and compromises the entire lifting operation. This guide establishes the industry-standard methodology for measuring synthetic lifting gear, evaluating Working Load Limits (WLL), and specifying the correct standard or custom configurations for your lifting operations. By understanding the mechanical properties of synthetic fibers and adhering to strict measurement protocols, you can ensure your rigging hardware performs safely under maximum load conditions.

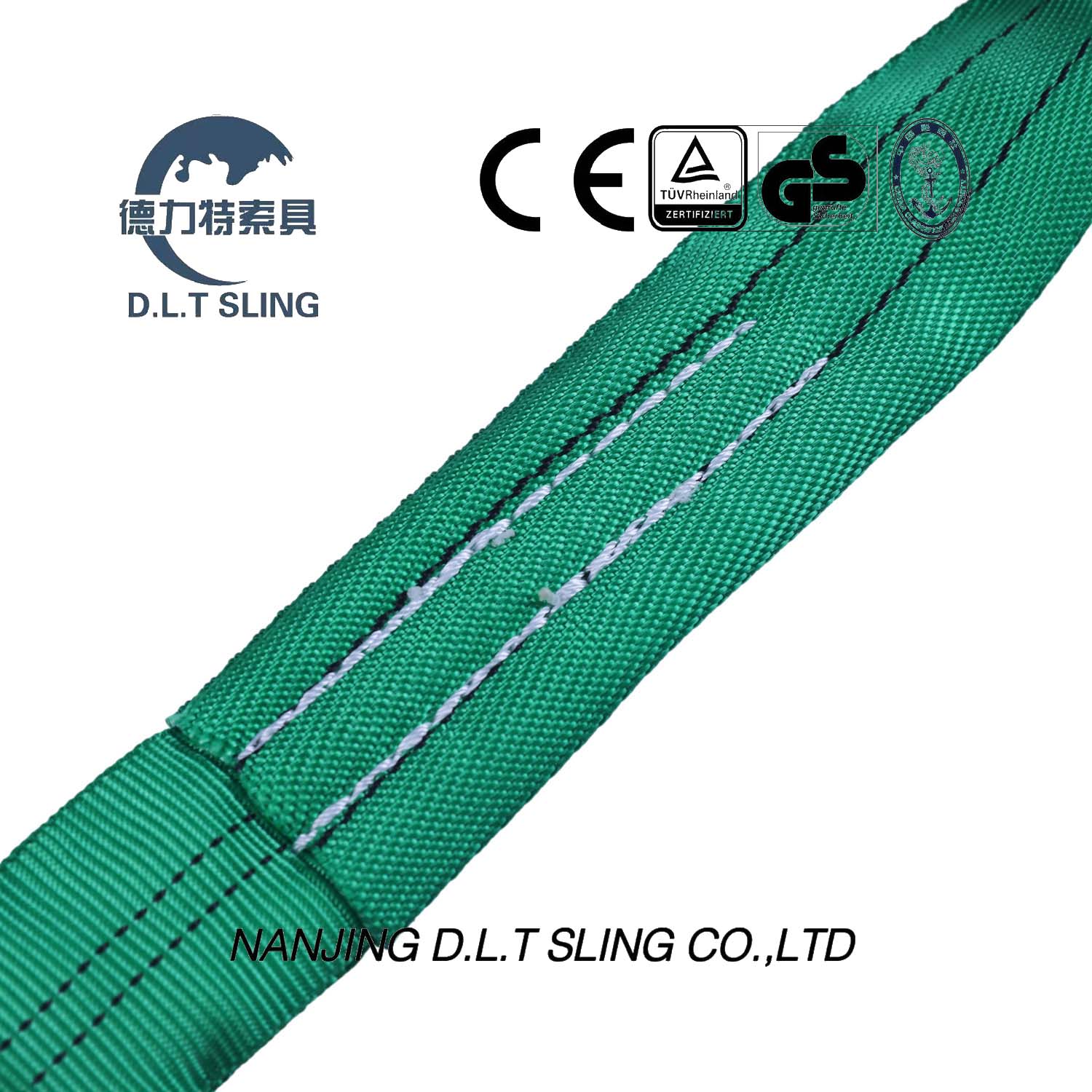

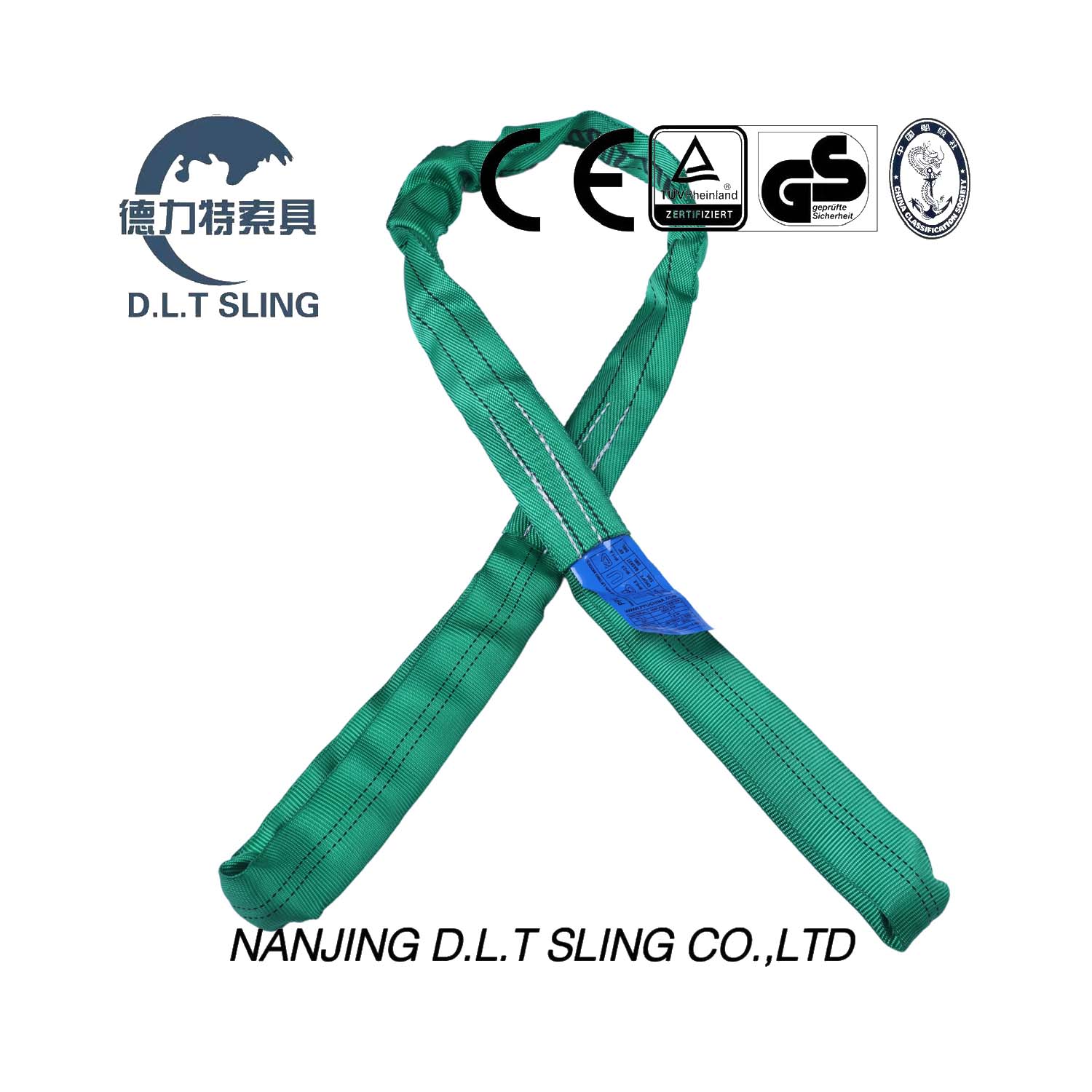

Measure Tip-to-Tip: A Round Sling is always measured by its Effective Working Length (bearing point to bearing point when laid flat), never by its total circumference.
Understand Load Angles: Sling length directly dictates the rigging angle; incorrect lengths alter the tension factor, significantly reducing the actual Working Load Limit (WLL).
Match Material to Application: While a standard Polyester Round Sling covers most industrial applications, extreme environments or unique load geometries require engineered Custom Round Sling solutions.
Prioritize Compliance: All measurements and subsequent procurement decisions must align with ASME B30.9 and OSHA standards for synthetic slings.
Before measuring, specifiers must understand how the sling's construction impacts its length under load and its overall flexibility. A synthetic sling behaves differently than wire rope or alloy chain. The internal geometry and external protection layers dictate how the equipment stretches, handles sharp edges, and distributes weight across the bearing points. You need to know exactly what is happening inside the jacket when you apply tension to the load.
The strength of this equipment lies in its continuous loop of load-bearing synthetic yarns. These core yarns are wound continuously during fabrication to form an endless bundle, providing exceptional strength and flexibility. Because the core yarns are endless, the load is distributed evenly throughout the entire loop. Surrounding this load-bearing core is a woven tubular protective jacket. This jacket does not bear the load. Instead, it dictates wear resistance, provides UV protection, and features color-coding to indicate capacity. The independent movement between the core yarns and the outer jacket allows the sling to conform tightly to the load, reducing localized friction points that cause premature wear.
During the manufacturing process, the tension applied to the core yarns determines the final resting length of the assembly. Manufacturers calibrate this tension carefully to ensure the finished product meets exact dimensional tolerances. If the core yarns are wound too loosely, the sling will exhibit excessive initial stretch when first loaded. If wound too tightly, the sling loses some of its natural flexibility, making it harder to manipulate around tight corners or through narrow shackle bows.
A standard Polyester Round Sling features a very low stretch factor, typically around 3% at its rated capacity. This minimal stretch is necessary for maintaining load control and must be factored into headroom calculations during the lift planning phase. When lifting heavy machinery in confined spaces, a 3% elongation on a long sling can significantly alter the clearance between the load and the crane hook. Riggers must account for this dynamic elongation to prevent accidental impacts with overhead structures.
Polyester also offers excellent resistance to common industrial chemicals, particularly mild acids. However, it degrades quickly when exposed to strong alkalis or temperatures exceeding 194 degrees Fahrenheit (90 degrees Celsius). Understanding these material limitations helps you determine if a standard polyester configuration will survive your specific site conditions or if you need to upgrade to a more resilient fiber blend.
While both are made from synthetic materials, their construction and measurement methods differ vastly. A continuous loop design provides superior flexibility and load protection compared to the flat, multi-ply design of synthetic web slings. Flat web slings are measured eye-to-eye or by overall length. In contrast, endless loop configurations must always be measured flat tip-to-tip, known as the Effective Working Length, rather than by circumference.
You should choose an endless loop design over a flat web sling when you need superior flexibility, enhanced load protection, and highly efficient choking capabilities that grip cylindrical or irregular loads securely. The tubular jacket of an endless loop slides over the core yarns, allowing the bearing points to shift during each lift. This shifting distributes wear evenly across the entire length of the jacket, significantly extending the service life of the equipment compared to a flat web sling, which tends to wear out at the fixed bearing points of its eyes.
Feature | Polyester Round Sling | Synthetic Web Sling |
|---|---|---|
Measurement Method | Effective Working Length (Tip-to-Tip) | Eye-to-Eye or Overall Length |
Load Bearing Structure | Endless core yarns inside a tubular jacket | Flat, woven webbing (single or multi-ply) |
Wear Distribution | Jacket rotates, distributing wear evenly | Wear concentrates at fixed bearing points (eyes) |
Flexibility | Extremely high, conforms to irregular shapes | Moderate, better for flat bearing surfaces |
Choker Hitch Performance | Excellent grip, minimal edge damage | Good, but edges can crush under high tension |
Accuracy in measurement prevents catastrophic rigging failures. The most common error in procurement is confusing the total circumference of the loop with the actual working length required for the lift. You must train your teams to speak the same dimensional language as the manufacturers to avoid costly ordering mistakes.
Effective Working Length (EWL) is defined as the distance between the bearing points (pull-to-pull) when the sling is pulled taut in a straight line. The mathematical relationship is absolute: the circumference of the continuous loop is always exactly twice the Effective Working Length. A frequent procurement error involves ordering a "10-foot sling" while expecting a 10-foot circumference. Because manufacturers build to EWL, the resulting Round Sling will have a 20-foot circumference, rendering it twice as long as needed for the application.
When a sling is too long, the crane block must be raised higher to clear the load from the ground. In facilities with low ceilings or limited hook height, this extra length makes the lift impossible. Conversely, if you order based on circumference and receive a sling that is too short, the rigging angles will be too shallow, drastically increasing the tension on the legs and potentially overloading the equipment.
To ensure accurate sizing, follow this strict measurement protocol on the job site:
Remove the equipment from service and lay it on a clean, flat surface free of debris, sharp metal shavings, or chemical spills.
Pull the loop flat and taut to remove any slack, bunching, or twisting in the outer protective jacket. Ensure the core yarns are aligned straight inside the cover.
Place a calibrated measuring tape at the extreme inside edge of one end (the first bearing point).
Extend the tape in a straight line to the extreme inside edge of the opposite end (the second bearing point).
Record this tip-to-tip measurement. This is your Effective Working Length (EWL).
When the synthetic loop is permanently attached to master links, shackles, or hooks, the measurement criteria shift slightly. You must measure from the load-bearing surface of the hardware rather than the synthetic tip. The Effective Working Length encompasses the entire reach of the assembly from the top bearing point of the master link to the bottom bearing point of the attached hook.
Failing to include hardware dimensions results in a shorter overall reach, which alters sling angles and reduces lifting capacity. For example, if you need a 10-foot total reach and you order a 10-foot synthetic loop, adding a 1-foot master link and a 1-foot hook will result in a 12-foot total reach. You must subtract the hardware dimensions from your total required reach to determine the correct EWL for the synthetic portion of the assembly.
Length is only one half of the procurement equation. The length directly interacts with the load capacity based on the specific hitch type used during the lift. Understanding this relationship is critical for OSHA compliance and site safety. You cannot separate dimensional measurements from capacity calculations.
The Working Load Limit (WLL) changes dramatically across Vertical, Choker, and Basket hitches. A basket hitch effectively doubles the vertical capacity, assuming the legs are perfectly vertical. A choker hitch reduces the vertical capacity by approximately 20% due to the stress concentrated at the choke point. Sling angles play a massive role in these calculations when using multi-leg bridles or angled basket hitches.
A shorter-than-required length creates a wider horizontal angle. As the angle between the load and the sling decreases from 90 degrees (vertical), the tension on each leg increases exponentially. A 30-degree horizontal angle doubles the tension on the sling leg compared to a vertical lift. If you measure incorrectly and use a sling that is too short, you might inadvertently exceed the WLL simply because the angle is too severe.
Horizontal Angle (Degrees) | Tension Multiplier (Load Angle Factor) | Effect on Sling Tension |
|---|---|---|
90° (Vertical) | 1.000 | Tension equals load weight per leg |
60° | 1.155 | Tension increases by ~15% |
45° | 1.414 | Tension increases by ~41% |
30° | 2.000 | Tension doubles (200%) |
Under the OSHA Intermediate Angle Rule, riggers must follow strict safety guidelines for intermediate angles not explicitly listed on standard load charts. If your exact angle is missing, you must use the rating for the next lower angle listed or consult a qualified professional to calculate the exact rated load based on specific design factors. Never round up to a higher angle to justify a heavier lift.
The industry utilizes a universal color-coding system to identify vertical rated capacities quickly. This visual system helps riggers grab the right equipment for the job without having to read the tag for every single lift. Common colors include Purple, Green, Yellow, Tan, and Red, each corresponding to a specific tonnage.
Jacket Color | Typical Vertical WLL (lbs) | Typical Choker WLL (lbs) | Typical Basket WLL (lbs) |
|---|---|---|---|
Purple | 2,600 | 2,100 | 5,200 |
Green | 5,300 | 4,200 | 10,600 |
Yellow | 8,400 | 6,700 | 16,800 |
Tan | 10,600 | 8,500 | 21,200 |
Red | 13,200 | 10,600 | 26,400 |
However, you must warn your rigging crews against relying solely on color. Jackets fade in the sun, become obscured by grease, and regional manufacturer differences can alter the color scale. A faded green jacket might look yellow under harsh site lighting. Always check the manufacturer's identification tag to verify the exact Working Load Limit before executing a lift. If the tag is missing or illegible, the equipment is dead and must be destroyed.
Evaluating when off-the-shelf products suffice versus when engineered solutions are required is a core competency for procurement and safety managers. Standard sizes work for symmetrical loads, but complex industrial lifts demand tailored approaches. You need to know when to push back on standard catalog items and demand a specialized build.
Standard lengths often fail when dealing with asymmetrical loads. Scenarios requiring non-standard lengths arise when you must maintain exact center-of-gravity requirements in multi-leg lifts. If a load is heavier on one side, using equal-length legs will cause the load to tilt dangerously. You need precise, engineered lengths to ensure the crane hook remains perfectly plumb over the center of gravity.
Standard configurations also fall short in extreme environments. Standard polyester melts at relatively low temperatures and offers minimal resistance to sharp steel edges. If you are lifting raw steel plates or operating near blast furnaces, standard equipment will fail rapidly, putting your crew at risk.
Ordering a Custom Round Sling involves specifying exact lengths down to the inch. You can also request specific jacket materials, such as Aramid fibers for high-heat environments or high-performance polyethylene for extreme cut resistance. Higher-capacity core yarns can be specified for ultra-heavy lifts exceeding 100,000 pounds.
When specifying custom engineering, you must discuss lead-time trade-offs and cost implications with your manufacturer. Bespoke fabrication requires specialized testing and certification. You cannot simply order a custom length and expect it to ship the next day. Plan your procurement cycles to accommodate the engineering, fabrication, and proof-testing phases required for custom lifting gear.
Synthetic fibers are highly susceptible to cutting and abrasion. Adding sliding sleeves, sewn-on wear pads, or heavy-duty edge protection affects the overall thickness, flexibility, and clearance of the assembly. Sleeves do not alter the EWL, but they must be accounted for during the measurement and ordering phases.
You must ensure the protective pads can be positioned correctly over the intended load contact points without bunching up inside the crane hook or shackle bow. If a sliding sleeve is too long, it will jam into the hardware, preventing the sling from seating properly and creating dangerous point-loading on the core yarns. Measure the exact distance between the bearing points on the load and specify sleeve lengths that cover the sharp edges without interfering with the rigging hardware.
Procuring the right equipment is only effective if implemented correctly on the job site. Rigging teams must follow strict inspection and application protocols to maintain safety margins. Even the best-engineered equipment will fail if used improperly.
Using mismatched lengths in a bridle configuration is a severe implementation risk. Even a slight discrepancy in length leads to unequal load distribution, causing a dangerous overloading of a single leg. If one leg takes 80% of the load because it is slightly shorter than the others, it will snap, causing a catastrophic chain reaction.
Another common risk is failing to account for the "bunching" effect of the jacket in tight shackle bows or crane hooks. If the hardware is too narrow, the synthetic fibers crush against each other, reducing the breaking strength and causing premature wear. The bearing surface of the hardware must be wide enough to allow the synthetic fibers to spread out and distribute the load evenly.
Before ordering a direct replacement, thoroughly inspect the old equipment to identify the root cause of failure. Look for core yarn exposure through jacket tears, which indicates severe abrasion or cutting. Check for acid or chemical burns, melting, or charring from heat damage. If the identification tag is illegible or missing, the equipment must be removed from service immediately.
Analyzing the damage on the retired gear helps you determine if you need to upgrade to cut-resistant jackets or add sliding wear pads to the new order. If the old jacket is shredded at the bearing points, you know you need better edge protection. If the jacket is melted, you need to switch to Aramid fibers.
Vet your suppliers based on their strict adherence to ASME B30.9 testing requirements and design factors. Synthetic lifting gear typically requires a 5:1 design factor. Emphasize the importance of requesting proof load testing and serialized certification, especially for high-capacity or custom engineered assemblies.
Reliable vendors provide full traceability for their synthetic fibers and manufacturing processes. They should be able to provide test certificates showing the exact breaking strength of the batch of yarn used to build your equipment. Do not buy lifting gear from unverified sources or vendors who cannot produce legitimate testing documentation.
Accurate measurement relies entirely on the Effective Working Length (EWL) metric. Circumference measurements should be discarded from procurement language to prevent critical rigging errors. When replacing or specifying new lifting equipment, prioritize vendors who provide clear load charts, transparent design factors, and custom fabrication capabilities for complex lifts.
Take the following steps to secure your lifting operations:
Audit current rigging hardware to remove any items with illegible or missing identification tags.
Standardize internal measurement protocols to use Effective Working Length (EWL) exclusively.
Consult with a qualified rigging engineer or manufacturer to verify sling angles and WLL requirements before issuing purchase orders for multi-leg assemblies.
Implement mandatory edge protection policies for all synthetic lifting applications involving sharp or abrasive load geometries.
A: No. Round slings are measured by their Effective Working Length (EWL), which is the tip-to-tip distance when laid flat. The circumference is double the EWL.
A: While flat web slings are measured from pull-to-pull (eye-to-eye) or overall length, a Polyester Round Sling must always be measured flat tip-to-tip (EWL). Additionally, round slings feature a continuous loop design that makes them much more flexible than flat web slings.
A: EWL is the exact distance between the two bearing points (the points where the sling contacts the hook, shackle, or the load) when the sling is pulled taut.
A: Length dictates the angle of the sling when used in multi-leg or basket hitches. Shorter slings create wider horizontal angles, which increases the tension factor and reduces the overall lifting capacity.
A: Under OSHA guidelines, if the exact rigging angle is not shown on the manufacturer's load chart, you must use the rating for the next lower angle listed or consult a qualified person to calculate the rated load.
A: Yes, a standard Polyester Round Sling will stretch approximately 3% at its maximum rated Working Load Limit. This must be factored into headroom calculations.
A: A Custom Round Sling is necessary when standard lengths cannot achieve the required sling angle, when lifting loads with an asymmetrical center of gravity, when requiring special protective sliding sleeves, or when operating in extreme temperatures requiring specialized aramid or high-performance fibers.
