In industrial rigging and heavy lifting, equipment failure is not an option; selecting the correct sling dictates the safety of the crew and the integrity of the load. Procurement officers and rigging planners often struggle to match sling types to specific load profiles, leading to premature equipment wear, compromised safety, or inefficient rigging configurations. Using the wrong equipment for a heavy lift introduces unnecessary risk to the job site and can damage expensive materials. Defining the structural mechanics of a Synthetic Round Sling, evaluating its performance against other synthetic options, and establishing a rigorous framework for specifying the right sling provides a clear path for complex lifting operations. Understanding these tools ensures that lifting tasks proceed safely, efficiently, and strictly within regulatory compliance standards.

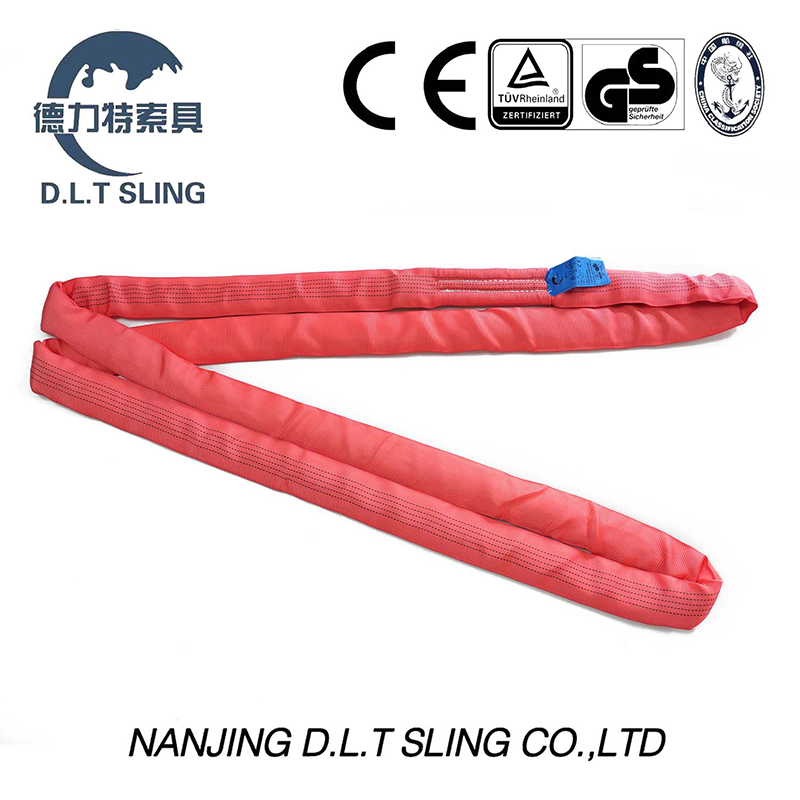

Continuous Loop Construction: A round sling utilizes an endless loop of high-tenacity load-bearing yarns, allowing the user to rotate wear points and extend the lifespan of the equipment.
Superior Load Conformity: The tubular design naturally molds to the shape of the load, providing multi-directional flexibility similar to crane cables.
Standardized Capacity Identification: Industry-standard color-coding dictates the rated capacity, though actual safe working loads vary significantly based on the hitch configuration (vertical, choker, or basket).
Vulnerability to Edges: While highly flexible, synthetic round slings require mandatory edge protection (sleeves or pads) to prevent catastrophic failure from cutting or abrasion.
The internal structure of a synthetic sling consists of multiple, continuous loops of high-tenacity yarns. This endless configuration distributes weight evenly across the entire bundle of fibers. Because the core yarns form a continuous loop, there are no spliced joints or sewn seams to act as weak points under heavy tension. When a load is applied, the yarns align and share the stress equally, providing exceptional strength in a relatively compact profile. Riggers rely on this continuous core because it guarantees consistent load distribution regardless of how the sling is rotated before the lift. In field applications, this means you can shift the contact points away from areas that experienced heavy friction in previous lifts, effectively extending the usable life of the rigging hardware.
Manufacturers typically use either polyester or nylon for the internal core yarns, and the mechanical differences between these materials dictate their application. A Polyester Lifting Sling features low-stretch properties, typically elongating only about 3% at its rated capacity. Polyester also offers excellent resistance to acidic environments, making it the standard choice for most industrial applications. Nylon, conversely, stretches up to 10% under load. This higher stretch rate provides better shock-absorption capabilities but can cause issues in low-headroom lifts where precise load control is required.
Material | Stretch at Rated Capacity | Chemical Resistance | Primary Application |
|---|---|---|---|
Polyester | ~3% | Resists acids; degrades in alkalis | Low-headroom lifts, general construction, acidic environments |
Nylon | ~10% | Resists alkalis; degrades in acids | Dynamic lifts requiring shock absorption, alkaline environments |
Surrounding the core yarns is a woven, double-wall tubular jacket. This jacket bears absolutely no load during a lift. Its sole purpose is to protect the internal core yarns from environmental damage and minor physical wear. The jacket shields the load-bearing fibers from UV degradation, dirt, ingress of debris, and minor abrasion during normal handling. If the jacket is breached, the core yarns become exposed to the elements and sharp edges, compromising the entire assembly. Field inspectors must understand that the jacket is a sacrificial layer; its condition dictates whether the internal, load-bearing components are safe to use.
Compliance with OSHA and ASME B30.9 standards requires every sling to feature a legible identification tag. This tag must display the manufacturer's name or trademark, the core and jacket material composition, and the rated capacities for vertical, choker, and basket hitches. Traceability codes are also mandatory to track the manufacturing batch. If a tag is missing or unreadable, the sling must be immediately removed from service, regardless of its physical condition. Rigging supervisors should implement a strict pre-shift inspection routine to verify tag legibility, as faded or torn tags are the most common reason for failing a safety audit.
The pliable, tubular nature of a Round Sling contrasts sharply with the flat, rigid structure of web slings. Because the core yarns can move independently within the jacket, the sling can bend and rotate in any direction. It behaves similarly to crane cables, allowing superior movement and grip on cylindrical or highly irregular loads. Flat web slings tend to remain rigid across their width, which can cause them to bridge across uneven surfaces rather than conforming tightly to the load. When lifting heavy machinery with protruding components, the tubular design wraps securely around the contours, preventing the load from shifting during transit.
A continuous loop design allows riggers to constantly rotate the load-bearing points. Before each lift, the user can shift the sling so that the crane hook and the load contact different sections of the jacket. This distributes wear evenly over the entire length of the equipment. Web slings feature fixed eyes at each end. These fixed points concentrate wear at the exact same contact areas during every single lift, often leading to faster degradation at the bearing points. By actively managing where the sling contacts the load and the hook, crews can significantly reduce the frequency of equipment replacement.

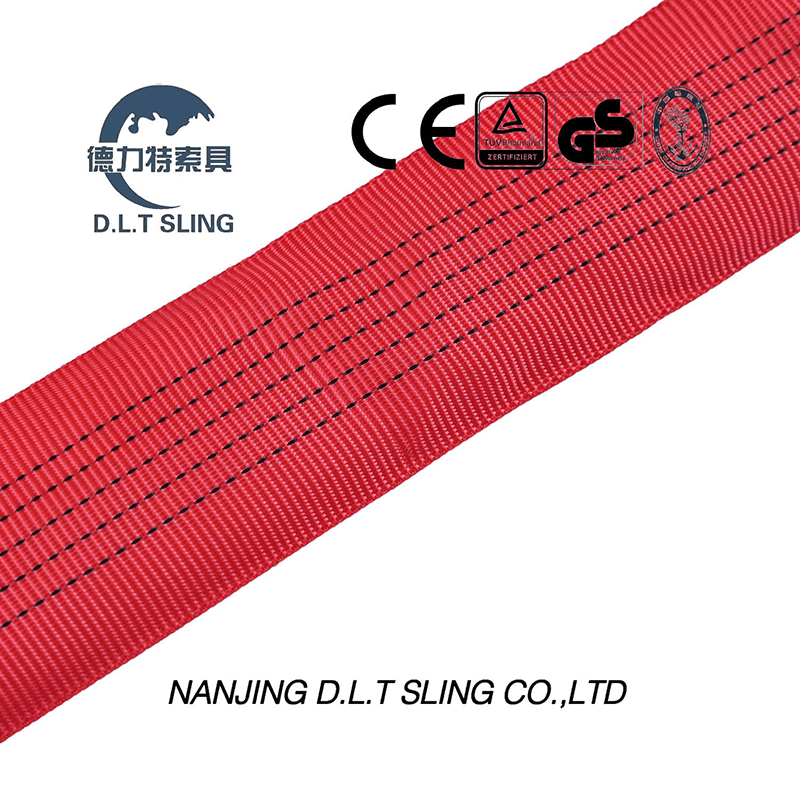

While tubular designs offer excellent conformity, flat web slings distribute pressure over a wider surface area. This wider footprint can be preferable for fragile loads or materials with soft surfaces that might be crushed or scored by concentrated pressure. When lifting thin-walled pipes, finished architectural components, or composite materials, the broader surface of a web sling may prevent surface damage better than the rounded profile of a tubular sling. Rigging planners must evaluate the crush resistance of the load before deciding between tubular and flat synthetic options.
Evaluating the weight-to-capacity ratio reveals a significant advantage for synthetic options over traditional steel rigging. High-capacity synthetic slings are significantly lighter, more pliable, and easier to store than equivalent wire rope or alloy chain slings. A single rigger can carry and position a synthetic sling rated for tens of thousands of pounds, whereas a chain sling of the same capacity would require mechanical assistance just to move it across the shop floor. This ergonomic advantage reduces worker fatigue, speeds up the rigging process, and lowers the risk of manual handling injuries on the job site.
The industry standard for measuring these tools requires calculating the distance from bearing point to bearing point when the sling is laid flat. This is known as the working length or lay-flat length. It is entirely different from the total circumference of the continuous loop. Ordering based on circumference rather than working length results in receiving a sling that is exactly half the required size, leading to costly delays and reordering. When verifying inventory, always lay the equipment flat on the ground and measure from the inside of one end to the inside of the opposite end.
Manufacturers utilize a universal color-coding system to indicate baseline vertical capacities. Common colors include Purple, Green, Yellow, Tan, Red, White, Blue, and Orange, with each color representing a specific weight threshold. However, riggers must never rely solely on color to determine capacity. Fading from UV exposure, dirt, or grease can obscure the true color. Always verify the physical identification tag to confirm the exact rated capacity before rigging a load. The color simply serves as a quick visual reference for sorting equipment in the tool room.
Color Code | Approximate Vertical Capacity (lbs) | Common Industrial Use |
|---|---|---|
Purple | 2,600 | Light manufacturing, small parts handling |
Green | 5,300 | Standard machine shop operations |
Yellow | 8,400 | Mid-weight construction materials |
Tan | 10,600 | Heavy equipment components |
Red | 13,200 | Large pipe and structural steel |
White | 17,000 | Heavy industrial modules |
Blue | 21,200 | Pre-cast concrete handling |
Orange | 25,000+ | Extreme heavy lifting, power generation equipment |
The lifting method directly alters the safe working load of the equipment. A vertical hitch provides the baseline capacity. Using a choker hitch reduces the capacity due to the stress placed on the sling where it bites down on itself. A basket hitch effectively doubles the capacity because two legs of the sling are supporting the weight. To calculate the exact capacity for a specific lift, follow these steps:
Identify the baseline vertical capacity printed on the manufacturer's tag.
Determine the intended hitch configuration (Vertical, Choker, or Basket).
Apply the appropriate multiplier: 1.0x for Vertical, 0.8x for Choker, or 2.0x for a true vertical Basket hitch.
Adjust the final capacity based on the angle of the lift if the legs are not perfectly vertical.
Stretch rates affect headroom clearance during tight lifts. A polyester core experiences approximately 3% stretch at its maximum rated capacity. This minimal elongation allows for precise positioning in environments with low ceilings or tight clearances. Nylon variations experience up to 10% stretch under full load. While this provides excellent shock absorption during dynamic lifts, it requires the rigger to account for significant vertical drop before the load actually clears the ground. Failing to account for stretch can result in the load striking obstacles or the crane block two-blocking against the boom tip.
Synthetic materials have strict operational parameters regarding temperature and chemical exposure. The standard temperature maximum for most synthetic slings is 194°F (90°C). Exposure to temperatures above this threshold causes permanent structural damage to the yarns. Furthermore, polyester is resistant to many acids but degrades rapidly when exposed to alkalis. Nylon resists alkalis but is highly susceptible to acid damage. Both materials suffer from UV degradation over time when left outdoors. Store all synthetic rigging hardware in a cool, dry, dark environment away from chemical storage areas to maintain structural integrity.
Safety compliance is anchored in strict regulatory frameworks. ASME B30.9 outlines the specific requirements for synthetic slings, focusing heavily on user-level responsibilities and operational limits. These standards dictate that only trained and designated personnel shall inspect, rig, and direct lifts. Operating outside the parameters defined by OSHA and ASME not only violates federal law but drastically increases the probability of a catastrophic rigging failure. Facility managers must maintain documented training records for all personnel handling lifting equipment.
The leading cause of synthetic sling failure is unprotected structural edges. Even a seemingly dull edge can slice through a synthetic jacket and sever the core yarns under thousands of pounds of tension. Using engineered wear pads, Kevlar sleeves, or magnetic corner protectors is mandatory when rigging around edges. The cost of edge protection is negligible compared to the cost of dropped loads, damaged equipment, or severe personnel injury. Never substitute cardboard, rags, or scrap wood for engineered edge protection.
Riggers must perform a pre-lift inspection before every single use. Identifying key rejection criteria prevents accidents before the load leaves the ground. Remove the equipment from service immediately if you observe any of the following defects during your visual sweep:
Missing, illegible, or detached identification tags.
Acid, caustic, or solvent burns on the outer jacket.
Melting, charring, or weld splatter on any part of the sling.
Holes, tears, cuts, or abrasive wear through the outer jacket that exposes the internal core yarns.
Snags or broken core yarns visible through damaged jackets.
Excessive stiffness or brittle areas indicating chemical or heat damage.
Knots tied anywhere in the sling assembly.
Before selecting equipment, calculate the total load weight and identify the center of gravity. Determine the required hitch type based on the load's shape and lifting points. A cylindrical load may require a double-wrap choker hitch for grip, while a balanced crate might only need a standard basket hitch. Defining these parameters dictates the baseline capacity required for the job. Always account for dynamic loading factors, such as wind resistance or sudden crane movements, which can temporarily increase the force exerted on the rigging.
When using multiple legs in a bridle configuration, the angle of the sling increases the tension factor. As the angle between the sling leg and the horizontal plane decreases, the tension on each leg increases exponentially. A 30-degree horizontal angle effectively doubles the tension on the sling compared to a direct vertical lift. Riggers must calculate this tension factor and select a sling with a higher rated capacity than the static weight of the load. Use standard rigging charts or load angle multiplier formulas to determine the exact tension per leg before finalizing the equipment selection.
Guide the procurement process by choosing protective sleeves during the ordering stage rather than as an afterthought. Sliding sleeves allow the sling to adjust independently of the pad, making them ideal for choker hitches where the sling must slide to tighten. Fully sewn wear pads offer permanent protection in fixed areas, while removable Velcro wear pads provide versatility for different lifting configurations. Matching the right protective accessory to the specific lifting application ensures the longevity of the core equipment and maintains safety compliance.
Audit your current rigging hardware inventory to ensure all identification tags are legible and compliant with ASME B30.9 standards.
Calculate the exact load weight, center of gravity, and required sling angles for your upcoming lifts to determine the correct capacity requirements.
Implement a mandatory edge protection policy for all synthetic rigging operations to prevent cut-related failures.
Establish a routine inspection schedule, training all riggers to identify and remove damaged equipment from service immediately.
A: A web sling is flat and woven, distributing weight over a wider surface area but remaining rigid across its width. A tubular sling features a protective jacket over continuous core yarns, allowing it to bend and conform to irregular shapes in any direction.
A: They can be made of either material. Polyester is the most common due to its low stretch (around 3%) and acid resistance. Nylon is used when higher stretch (up to 10%) is needed for shock absorption, though it is highly susceptible to acid damage.
A: Measure the sling from bearing point to bearing point when it is laid completely flat. This is known as the working length. Do not measure the total circumference of the continuous loop, as this will result in ordering the wrong size.
A: The internal core yarns move independently within the outer tubular jacket. This allows the sling to twist, bend, and mold tightly around cylindrical or oddly shaped loads, functioning much like a flexible steel cable.
A: Polyester resists many acids but degrades in alkaline environments. It cannot be used in temperatures exceeding 194°F (90°C). Always consult the manufacturer's chemical compatibility charts before using synthetic materials in harsh environments.
A: Remove it immediately if the identification tag is missing or illegible, if there are burns or melting, or if there are any holes, cuts, or tears in the outer jacket that expose the internal load-bearing core yarns.
A: A choker hitch reduces the lifting capacity compared to a straight vertical lift. The capacity is typically multiplied by a factor of approximately 0.8x due to the stress concentrated at the choke point where the sling bites down on itself.
